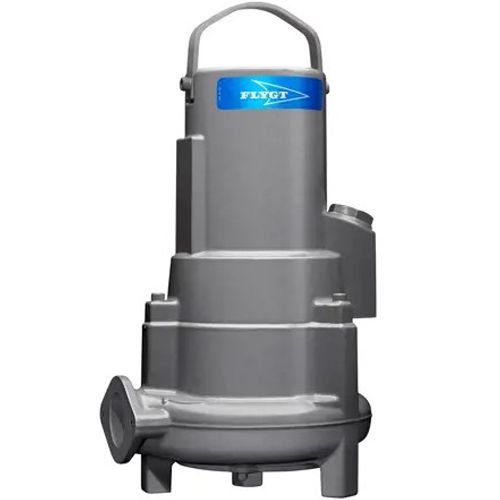

Flygt D3069 Low Head DX 413 80mm 1.3kW Submersible Sewage Pump With Vortex Impeller 240v

SKU
DX-3069.180-LT.80.413.1.3kW
MRRP £1,674.00 + VAT Our price £1,422.00 (+ VAT) Incl. VAT: £1,706.40

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Flygt D3069 Low Head DX 413 80mm 1.3kW Submersible Sewage Pump With Vortex Impeller 240v - DX-3069.180-LT.80.413.1.3kW

The Flygt D 3069 vortex pump is designed for high reliability. The impeller does not require adjustment and runs freely in the volute, providing free flow-through passage of solids and liquids. The risk of clogging or low performance is completely eliminated. Engineered for demanding environments, the Flygt D 3069 easily transports media for municipal sewage, industrial wastewater and a wide range of other applications.

The vortex design gives reduced radial forces on the impeller and shaft, which enables operation at very low flows or close to the shut-off head for extended period of time without any damage or requirement for maintenance. All components are specially designed and manufactured to optimize operation and prolong pump service life.

Features:

  • cast iron body - robust and reliable
  • free flow-through passage
  • reduced wear
  • low maintenance requirements
  • handles sludge concentration up to 4% of dry solids
  • double mechanical seal system. Two sets of mechanical shaft seals work independently to provide double security. Available in Tungsten Carbide (WCCR) or Silicone Carbide (SiC) depending on pumped media
  • spin-out design protect seals from abrasive particles
  • motor cable SUBCAB specially developed for wastewater applications
  • DX installation - optional installation, wet or dry well arrangement without predetermined mechanical connection and with drilled flanges. Dry well arrangement requires cooling system or de-rated motor
  • 413 impeller
  • low head
  • maximum depth of immersion - 20 metres

**Warm water version available, max liquid temperature 70°C, please contact office**

More Information
SKU DX-3069.180-LT.80.413.1.3kW
Manufacturer Flygt
Manufacturers Warranty 2 Years
Weight 42.0 Kg

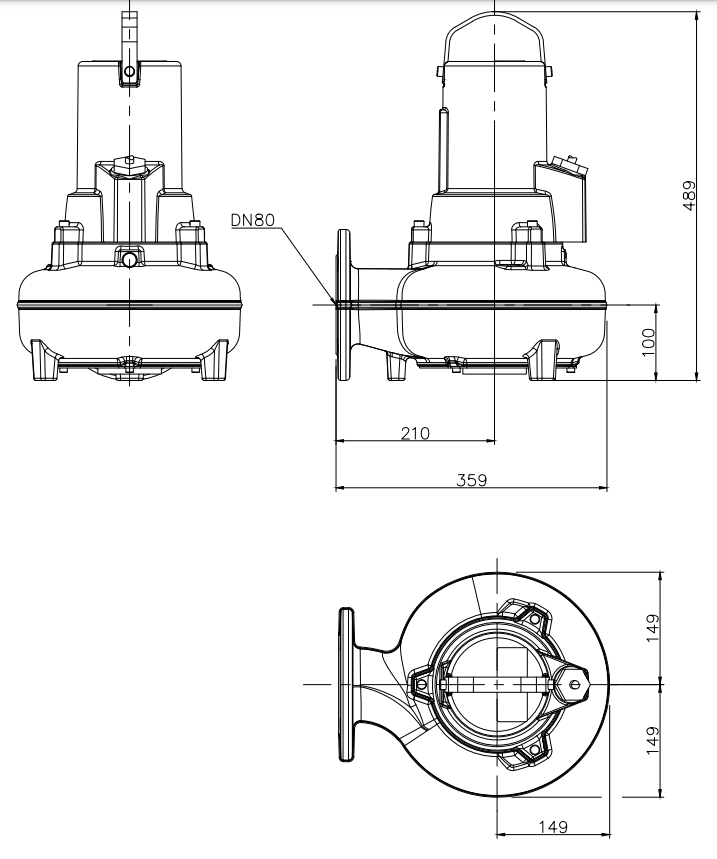

Dimensions 489mm (h) x 359mm (w)
Connection Type 80mm Flanged
Motor Size (kW/W) 1.3kW
Full Load Current (FLC) 8.4A
Voltage 240V 1Ph 50Hz
RPM 1400rpm
Cable Length 10 Metres

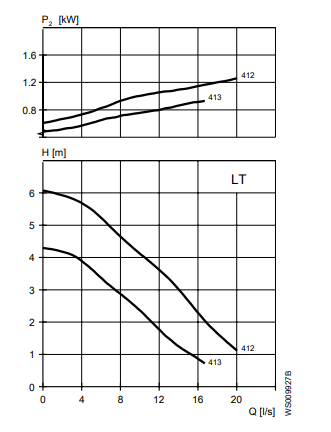

Max Flow 16 l/sec
Max Head 4m
Max Temperature 40°C
Material Cast Iron
Impeller Material 413
