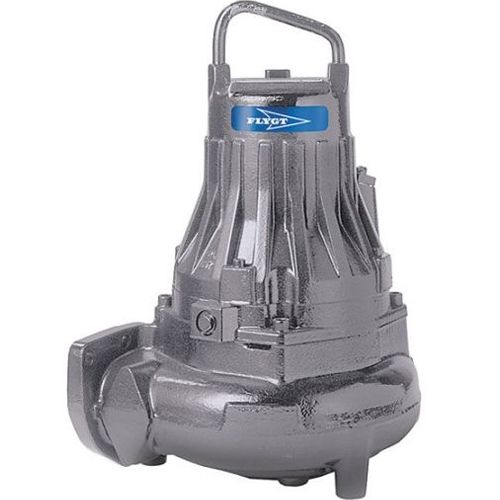

Flygt D3085 High Head DS 278 2.4kW Submersible Sewage Pump With Vortex Impeller 415v - DS-3085.183-HT.278.2.4kW
The Flygt D 3085 vortex pump is designed for high reliability. The impeller does not require adjustment and runs freely in the volute, providing free flow-through passage of solids and liquids. The risk of clogging or low performance is completely eliminated. Engineered for demanding environments, the Flygt D 3085 easily transports media for municipal sewage, industrial wastewater and a wide range of other applications.
The vortex design gives reduced radial forces on the impeller and shaft, which enables operation at very low flows or close to the shut-off head for extended period of time without any damage or requirement for maintenance. All components are specially designed and manufactured to optimize operation and prolong pump service life.
Features:
- cast iron body - robust and reliable
- free flow-through passage
- reduced wear
- low maintenance requirements
- handles sludge concentration up to 4% of dry solids
- double mechanical seal system. Two sets of mechanical shaft seals work independently to provide double security. Available in Tungsten Carbide (WCCR) or Silicone Carbide (SiC) depending on pumped media
- Griplock seal system. Secure locking to the shaft, no rubber friction, no grub screws and no shaft damage
- spin-out design protect seals from abrasive particles
- motor cable SUBCAB specially developed for wastewater applications
- DS installation - portable semipermanent, wet well arrangement with hose coupling or flange for connection to the discharge pipeline
- 278 impeller
- high head
- maximum depth of immersion - 20 metres
**Warm water version available, max liquid temperature 70°C, please contact office**
| SKU | DS-3085.183-HT.278.2.4kW |
|---|---|
| Manufacturer | Flygt |
| Manufacturers Warranty | 2 Years |
| Weight | 56.0 Kg |

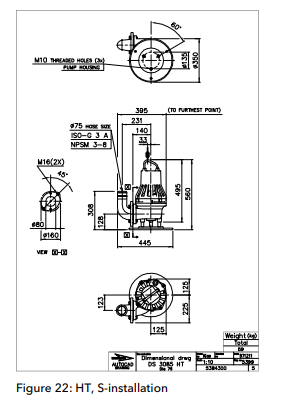

| Dimensions | 495mm (h) x 575mm (w) |
| Motor Size (kW/W) | 2.4kW |
| Full Load Current (FLC) | 4.8A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2845rpm |
| Cable Length | 10 Metres |

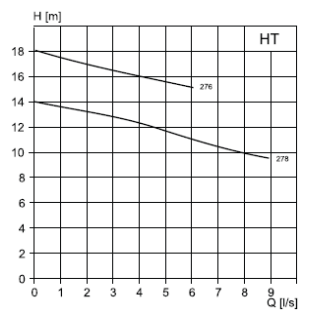

| Max Flow | 9 l/sec |
| Max Head | 14m |
| Max Temperature | 40°C |
| Material | Cast Iron |
| Impeller Material | 278 |
