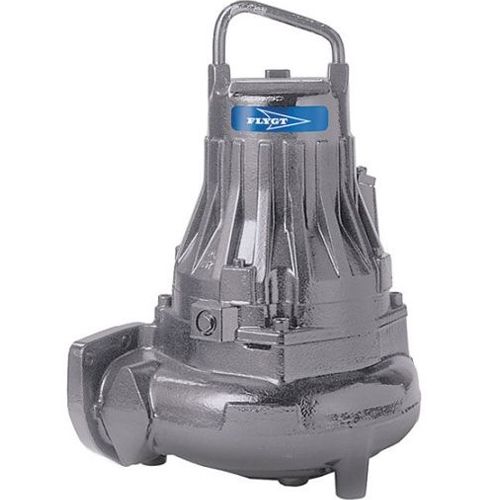

Flygt D3085 Medium Head DX 474 1.5kW Submersible Sewage Pump With Vortex Impeller 240v

Flygt D3085 Medium Head DX 474 1.5kW Submersible Sewage Pump With Vortex Impeller 240v - DX-3085.183-MT.474.1.5kW

The Flygt D 3085 vortex pump is designed for high reliability. The impeller does not require adjustment and runs freely in the volute, providing free flow-through passage of solids and liquids. The risk of clogging or low performance is completely eliminated. Engineered for demanding environments, the Flygt D 3085 easily transports media for municipal sewage, industrial wastewater and a wide range of other applications.

The vortex design gives reduced radial forces on the impeller and shaft, which enables operation at very low flows or close to the shut-off head for extended period of time without any damage or requirement for maintenance. All components are specially designed and manufactured to optimize operation and prolong pump service life.

Features:

• cast iron body - robust and reliable
• free flow-through passage
• reduced wear
• low maintenance requirements
• handles sludge concentration up to 4% of dry solids
• double mechanical seal system. Two sets of mechanical shaft seals work independently to provide double security. Available in Tungsten Carbide (WCCR) or Silicone Carbide (SiC) depending on pumped media
• Griplock seal system. Secure locking to the shaft, no rubber friction, no grub screws and no shaft damage
• spin-out design protect seals from abrasive particles
• motor cable SUBCAB specially developed for wastewater applications
• DX installation - flanged installation
• 474 impeller

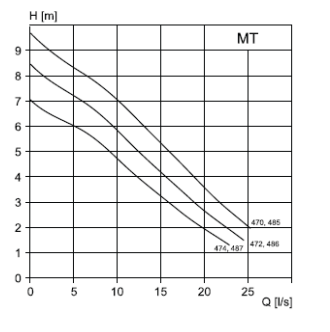

• medium head
• maximum depth of immersion - 20 metres

**Warm water version available, max liquid temperature 70°C, please contact office**
