Flygt M3069 High Head MP 254 1.5kW 2" BSPF Submersible Sewage Pump With Grinder Impeller 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

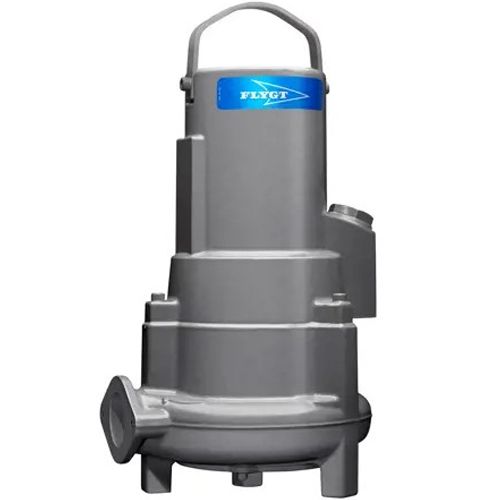

Flygt M3069 High Head MP 254 1.5kW 2" BSPF Submersible Sewage Pump With Grinder Impeller 240v - MP-3069.170-HT.254.1.5kW
The Flygt M 3069 grinder pump is a high-performing submersible, centrifugal pump. Excellent for pumping wastewater in residential, commercial and agricultural applications. The grinder pump reduces waste content to fine slurry, pumped through small-diameter pipes. The main application for Flygt M 3069 is pressurized sewage systems that are generally used when flat land, uphill topography, surface rock and high water tables pose tough challenges for conventional gravity systems.
For high-head applications, up to 70 m head, a progressive-cavity grinder pump version is available.
The M 3069 is engineered to meet all challenges of a wastewater system. It comes equipped with a unique impeller for optimum hydraulic efficiency and a heavy-duty cutting device, which grinds solids into 5 × 15 mm particles to enable easily transporting fluids through small-diameter pipes.
Features:
- use for heavy-duty shredding applications
- non-clogging design
- reliable operation
- heavy-duty cutting device
- double mechanical seal system. Two sets of mechanical shaft seals work independently to provide double security. Available in Tungsten Carbide (WCCR) or Silicone Carbide (SiC) depending on pumped media
- cast iron. Robust and durable
- spin-out design protect seals from abrasive particles
- motor cable SUBCAB specially developed for submersible use

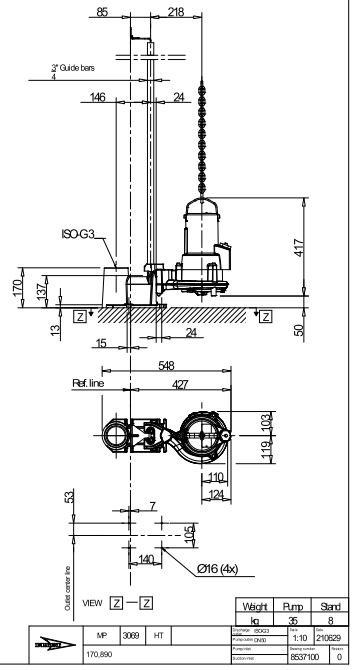

- MP installation - semipermanent, wet well arrangement with the pump installed on two guide bars. The connection to the discharge is automatic
- 254 impeller
- high head
- maximum depth of immersion - 20 metres
**Warm water version available, max liquid temperature 70°C, please contact office**
| SKU | MP-3069.170-HT.254.1.5kW |
|---|---|
| Manufacturer | Flygt |
| Manufacturers Warranty | 2 Years |
| Weight | 35.0 Kg |
| Dimensions | 417mm (h) x 222mm (w) |
| Connection Type | 2 Inch BSP Female |
| Motor Size (kW/W) | 1.5kW |
| Full Load Current (FLC) | 8.9A |
| Voltage | 240V 1Ph 50Hz |
| RPM | 2730rpm |
| Cable Length | 10 Metres |

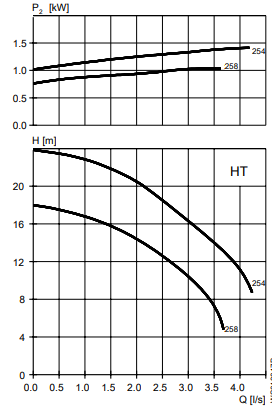

| Max Flow | 4.3 l/sec |
| Max Head | 24m |
| Max Temperature | 40°C |
| Material | Cast Iron |
| Impeller Material | 254 |
