Flygt M3102 Low Head MF 210 4.4kW 2" BSPF Submersible Sewage Pump With Grinder Impeller 415v

SKU
MF-3102.170-LT.210.4.4kW
MRRP £4,987.22 + VAT Our price £3,989.00 (+ VAT) Incl. VAT: £4786.80

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
08
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Flygt M3102 Low Head MF 210 4.4kW 2" BSPF Submersible Sewage Pump With Grinder Impeller 415v - MF-3102.170-LT.210.4.4kW

The Flygt M 3102 grinder pump is a high-performing submersible, centrifugal pump. Excellent for pumping wastewater in residential, commercial and agricultural applications. The grinder pump reduces waste content to fine slurry, pumped through small-diameter pipes. The main application for Flygt M 3102 is pressurized sewage systems that are generally used when flat land, uphill topography, surface rock and high water tables pose tough challenges for conventional gravity systems.

The M 3069 is engineered to meet all challenges of a wastewater system. It comes equipped with a unique impeller for optimum hydraulic efficiency and a heavy-duty cutting device, which grinds solids into small particles to enable easily transporting fluids through small-diameter pipes.

Features:

  • use for heavy-duty shredding applications
  • non-clogging design
  • reliable operation
  • heavy-duty cutting device
  • double mechanical seal system. Two sets of mechanical shaft seals work independently to provide double security. Available in Tungsten Carbide (WCCR) or Silicone Carbide (SiC) depending on pumped media
  • cast iron. Robust and durable
  • spin-out design protect seals from abrasive particles
  • motor cable SUBCAB specially developed for submersible use
  • MF installation - free standing semi permanent, wet well arrangement where the pump is placed on a firm surface
  • 210 impeller
  • low head
  • maximum depth of immersion - 20 metres

**Warm water version available, max liquid temperature 70°C, please contact office**

More Information
SKU MF-3102.170-LT.210.4.4kW
Manufacturer Flygt
Manufacturers Warranty 2 Years
Weight 78.0 Kg

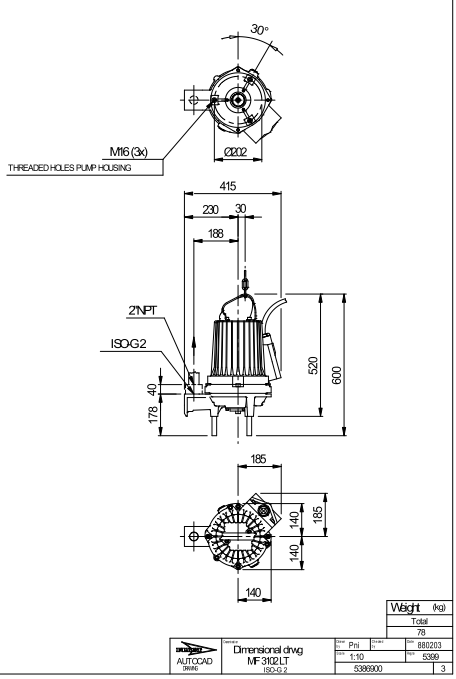

Dimensions 520mm (h) x 575mm (w)
Connection Type 2 Inch BSP Female
Motor Size (kW/W) 4.4kW
Full Load Current (FLC) 8.6A
Voltage 415V 3Ph 50Hz
RPM 2885rpm
Cable Length 10 Metres

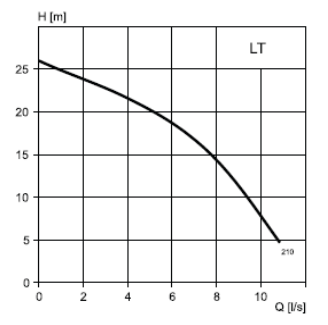

Max Flow 11 l/sec
Max Head 25m
Max Temperature 40°C
Material Cast Iron
Impeller Material 210
