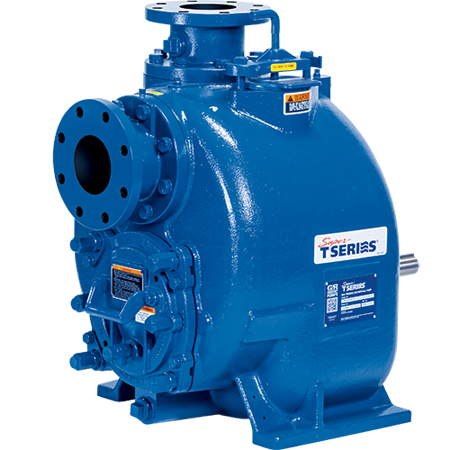

Gorman-Rupp Super T Series Self Priming Pump Model T4A60S-B/FM

SKU
T4A60S-B/FM
MRRP £12,300.00 + VAT Our price £9,501.00 (+ VAT) Incl. VAT: £11,401.20

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Designed for economical, trouble-free operation, the superior solids-handling capabilities of the Super T Series® pumps make them ideally suited for a variety of applications, including solids-laden liquids and slurries. In addition, the large volute design allows automatic repriming in a completely open system without needing suction or discharge check valves.

Available in discharge sizes of two, three, four, six, eight, and ten inches, this line of self-priming pumps boasts capacities to 3,400 gallons per minute (214.5 liters per second) and heads to 148 feet (45 meters).

Pumps four inches and larger are engineered to allow up to three-inch diameter spherical solids to pass through any critical area, including the recirculation port. Super T Series pumps are available in several configurations, including a B version for higher head applications and close-coupled or engine-driven models. In addition, all Gorman-Rupp Super T Series pumps are backed by a five-year manufacturer's warranty, and Eradicator Plus models come standard with a one-year manufacturer's warranty.

The T Series T4A60S-B/FM has a 76.2mm spherical solids capability.

Pumps are supplied bareshaft without motors.

Please contact the sales office for bedplate mounted and motorised versions

More Information
SKU T4A60S-B/FM
Manufacturer Gorman Rupp
Manufacturers Warranty 5 Years
Weight 279.0 Kg

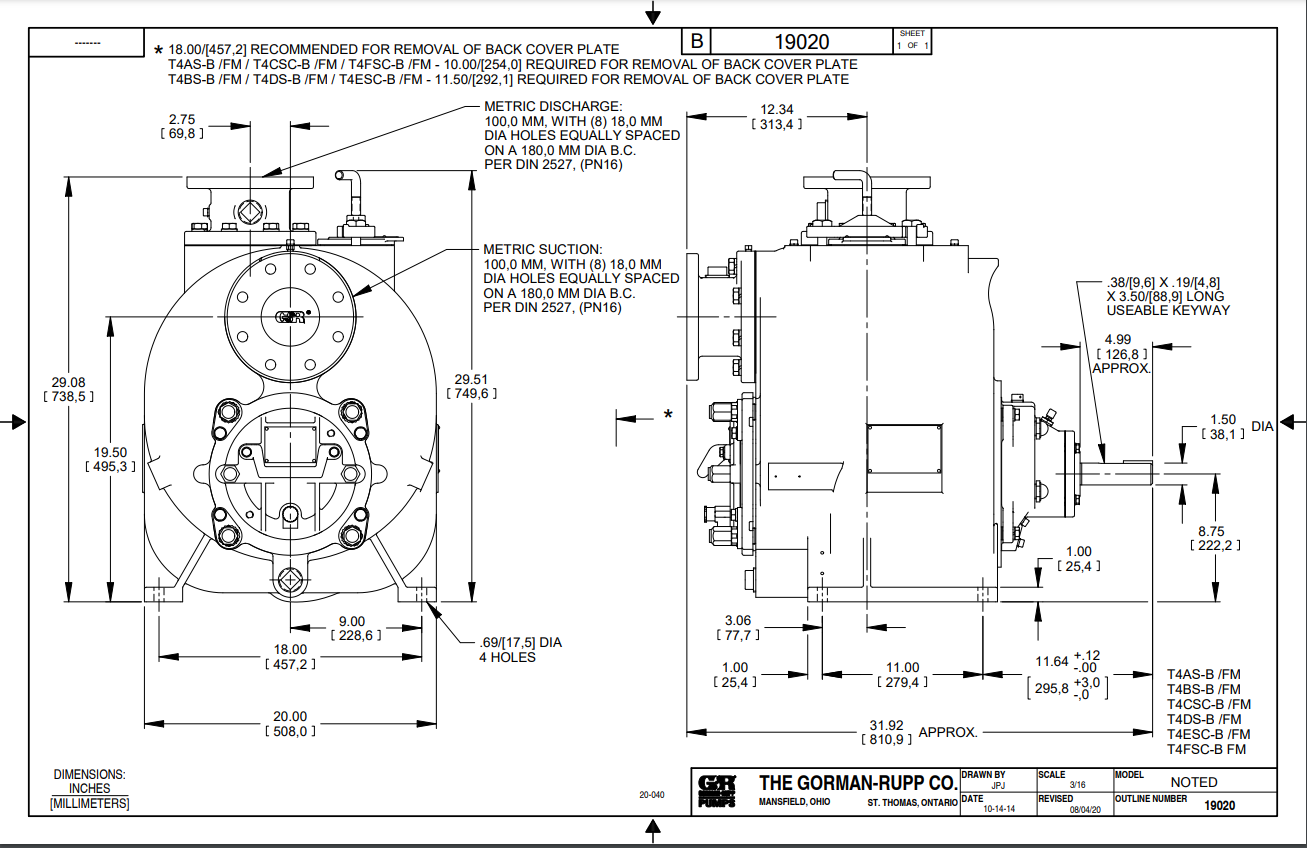

Dimensions 811mm L x 739mm H x 508mm W
Connection Type 100mm Flanged
Inlet Dimension 100mm PN16 Flanged
Discharge Dimension 100mm PN16 Flanged

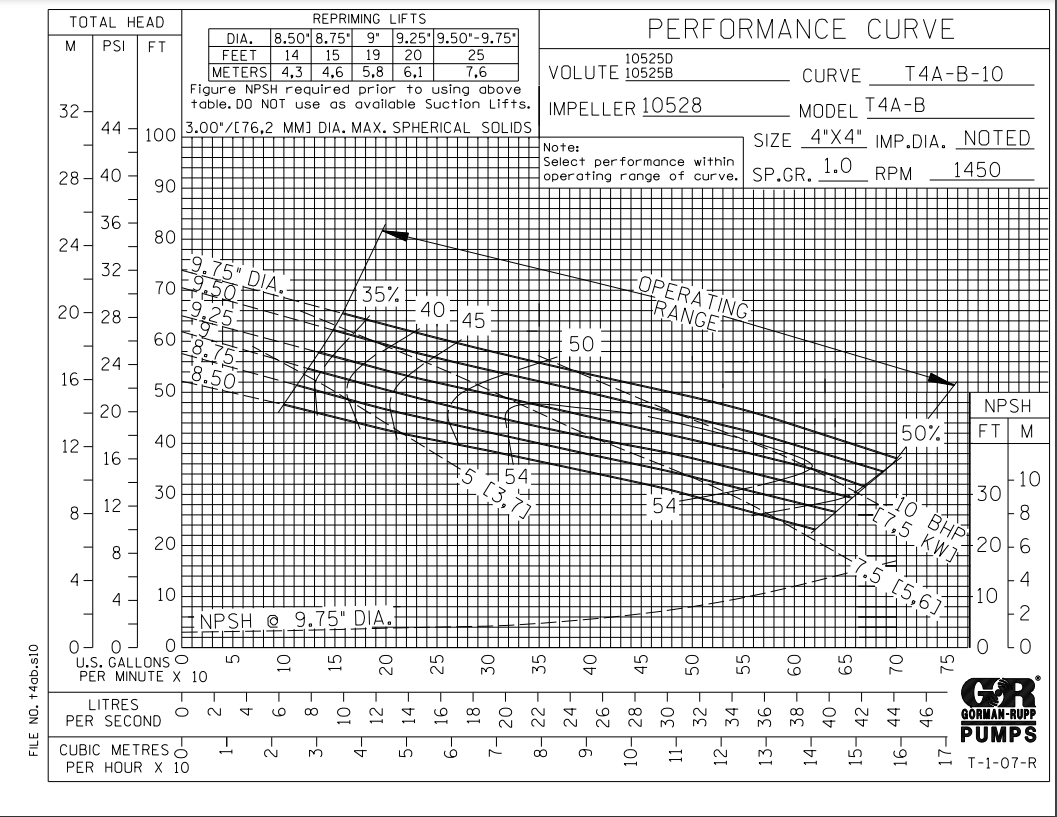

Max Flow 160 m3/h
Max Head 22 mtrs @ 1450 rpm
Max Temperature 71 degC
Material Cast Iron
Seal Type SiC/StSt/Vit
Shaft Diameter 38.1mm
Impeller Material Ductile Iron
