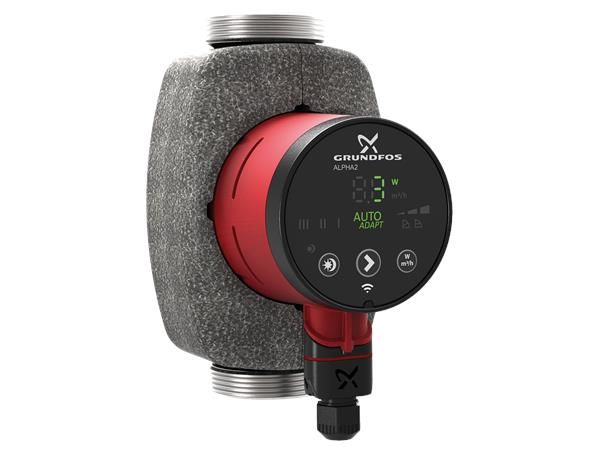

Grundfos Alpha2 32-40N (180) Hot Water Circulator with Auto Adapt 240v - 99411432
High efficiency canned-rotor circulator, designed for circulating liquids in heating systems. Pumps with stainless steel pump housing can be used in domestic hot-water systems. With a world-class energy efficiency index (EEI) well below the ErP benchmark it ensures substantial energy savings.
Features
|
When using the ALPHA2 with two other components the ALPHA Reader and the Grundfos GO Balance app, it enables the installers to perform fast and easy hydronic balancing - without compromising on reliability, efficiency and easy installation.
The AUTOADAPT function continuously adjusts the pump performance to the actual heat demand, i.e. the size of the system and the changing heat demand during the year. The function will find the setting that provides optimal comfort with minimal energy consumption. It contributes to fast, safe and easy commissioning.
In addition, the pump also features three control modes - each with three settings
|
The display shows the actual power consumption in Watts or actual flow in m3/h as well as alarms and warnings. LEDs indicate the actual operating status.
The night-setback function, when enabled automatically reduces the motor speed to save energy. The changeover depends on a change in the flow-pipe temperature.
Manual summer mode; once enabled, the pump is automatically started frequently at low speed to avoid blocking the rotor. At the same time, it saves energy.
The pump is of the canned-rotor type, which means that the pump and motor form an integral unit. The bearings are lubricated by the pumped liquid ensuring maintenance-free operation. The pump features dry-running protection.
The pump has a ceramic shaft and radial bearings, carbon thrust bearing, stainless-steel rotor can, bearing plate and rotor cladding, composite impeller, all of which contribute to long life.
The pump is self-venting through the system, which contributes to easy commissioning. The compact design featuring pump head with integrated control box and control panel fits into most common installations.
The pump housing is made of stainless steel for applications where the media requires this, e.g. avoiding corrosion when used in domestic hot-water systems.
| SKU | 99411432 |
|---|---|
| Manufacturer | Grundfos |
| Manufacturers Warranty | 2 Years |
| Weight | 2.5 Kg |
| Dimensions | 141mm x 88mm x 180mm |
| Connection Type | 2 Inch BSP Male |
| Motor Size (kW/W) | 18 W |
| Full Load Current (FLC) | 0.18 A |
| Voltage | 240V 1Ph 50Hz |
| Max Flow | 2.5 m3/hr |
| Max Head | 4 mtrs |
| Material | Stainless Steel |
| Impeller Material | Composite |
