Grundfos CM 1-4-I A R I E AQQE CAAN Horizontal Multi-stage Booster Pump 240V

SKU
97514999
MRRP £877.00 + VAT Our price £614.00 (+ VAT) Incl. VAT: £736.80

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

The Grundfos CM pumps are non-self-priming, horizontal, multistage, end-suction centrifugal pumps that are suitable for applications ranging from small domestic installations to large industrial systems.

Typical applications:

  • washing and cleaning
  • water treatment
  • temperature control
  • pressure boosting
  • distilling systems
  • dosing/mixing
  • evaporation
  • comprised machinery
  • chemical industry
  • pharmaceutical industry

Standard features:

  • Compact design
  • Modular construction/customised solutions
  • Energy-optimised pumps
  • Worldwide usage
  • High reliability
  • Easy installation and commissioning
  • Service-friendly



Grundfos CM-I pumps are made from 304 Stainless Steel (EN1.4301).  CM1 and CM3 pumps have 1" BSPF pipe connections.

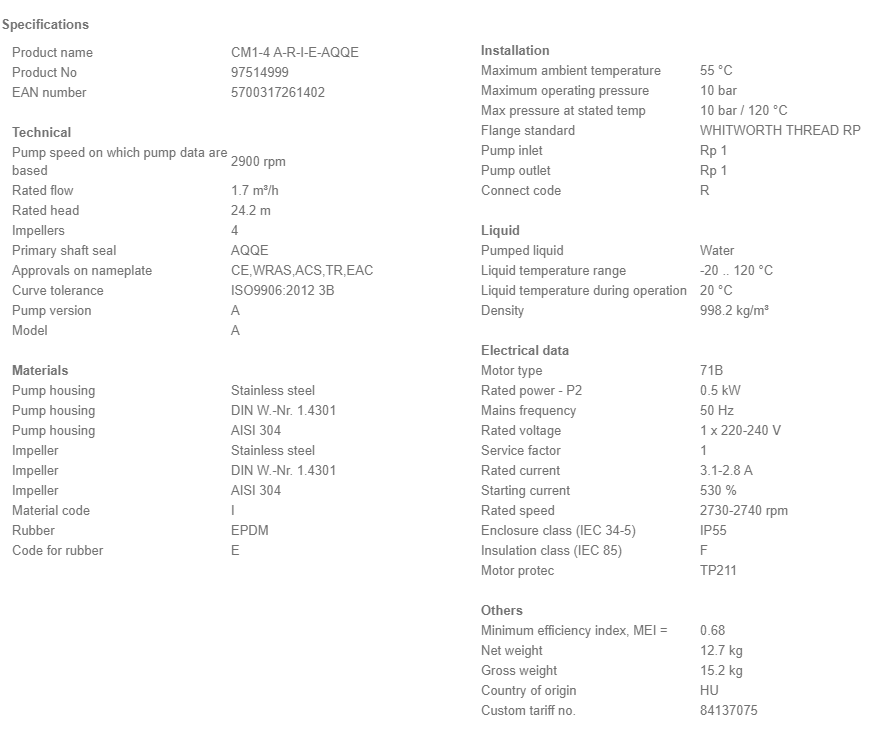

More Information
SKU 97514999
Manufacturer Grundfos
Manufacturers Warranty 2 Years
GTIN 5700317261402
Weight 15.2 Kg

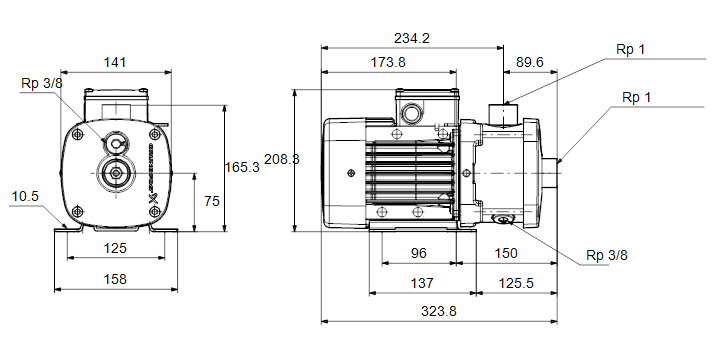

Dimensions 208mm (h) x 158mm (w) x 305mm (d)
Motor Size (kW/W) 0.50 kW / 71A Motor
Full Load Current (FLC) 3.1-2.8A
Voltage 240V 1Ph 50Hz
Max Flow 2.5m3/hr
Max Head 35m
Material Stainless Steel
