Grundfos CM 1-4-I A R I E AQQE FAAN Horizontal Multi-stage Booster Pump 415V
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
The Grundfos CM pumps are non-self-priming, horizontal, multistage, end-suction centrifugal pumps that are suitable for applications ranging from small domestic installations to large industrial systems.
Typical applications:
- washing and cleaning
- water treatment
- temperature control
- pressure boosting
- distilling systems
- dosing/mixing
- evaporation
- comprised machinery
- chemical industry
- pharmaceutical industry
Standard features:
- Compact design
- Modular construction/customised solutions
- Energy-optimised pumps
- Worldwide usage
- High reliability
- Easy installation and commissioning
- Service-friendly
Grundfos CM-I pumps are made from 304 Stainless Steel (EN1.4301). CM1 and CM3 pumps have 1" BSPF pipe connections.

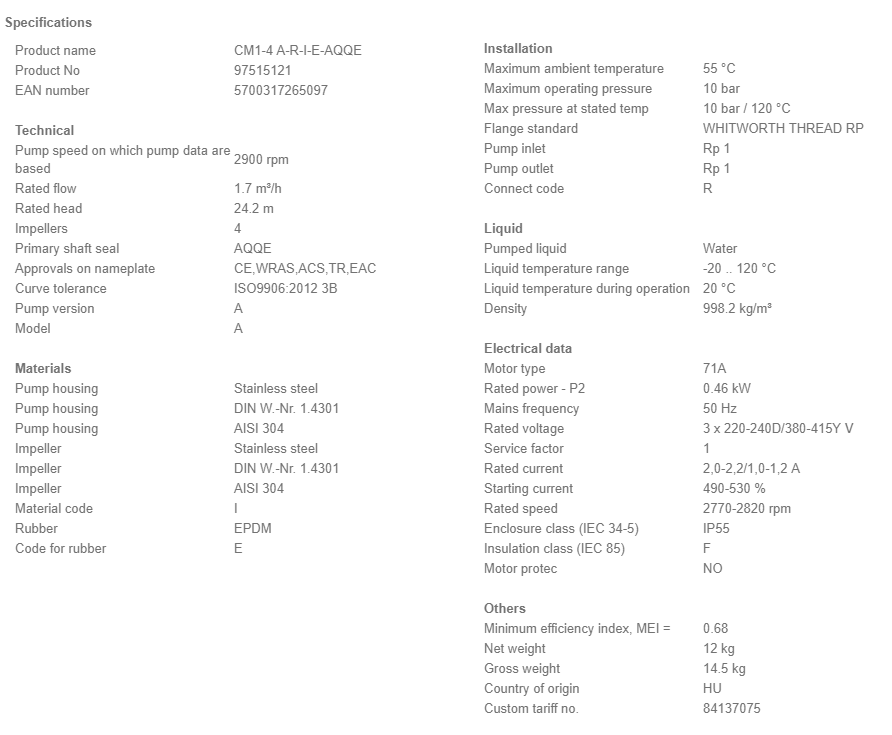

| SKU | 97515121 |
|---|---|
| Manufacturer | Grundfos |
| Manufacturers Warranty | 2 Years |
| GTIN | 5700317265097 |
| Weight | 14.5 Kg |

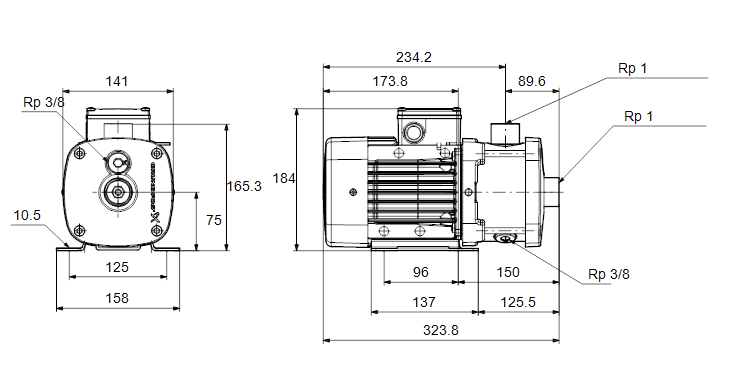

| Dimensions | 184mm (h) x 158mm (w) x 323mm (d) |
| Motor Size (kW/W) | 0.46 kW / 71A Motor |
| Full Load Current (FLC) | 2,0-2,2/1,0-1,2 A |
| Voltage | 415V 3Ph 50Hz |

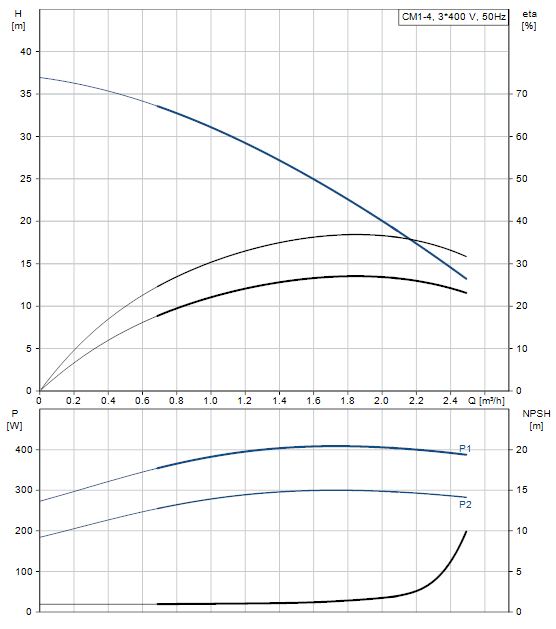

| Max Flow | 2.5m3/hr |
| Max Head | 35m |
| Material | Stainless Steel |
