Grundfos CM 3-4 O R I E AQQE Self Priming Horizontal Multi-stage Booster Pump with MG71B 240V Motor

Name: Grundfos CM 3-4 O R I E AQQE Self Priming Horizontal Multi-stage Booster Pump with MG71B 240V Motor
Brand: Grundfos
SKU: 98482174
Price: 668 GBP
Availability: InStock

SKU

98482174

MRRP £953.00 + VAT Our price £668.00 (+ VAT) Incl. VAT: £801.60

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

This range of Grundfos CM pumps are self-priming, horizontal, multistage, end-suction centrifugal, that are suitable for applications ranging from small domestic installations to large industrial systems.

Typical applications:

Standard features:

Compact design
Modular construction/customised solutions
Energy-optimised pumps
Worldwide usage
High reliability
Easy installation and commissioning
Service-friendly

Compact, reliable, horizontal, multistage, end-suction centrifugal pump with axial suction port and radial discharge port. The pump is self-priming and can create a suction lift of up to 4 metres. Pump materials in contact with the liquid are in stainless steel. Pipework connection is via internal Whitworth pipe threads, Rp1.

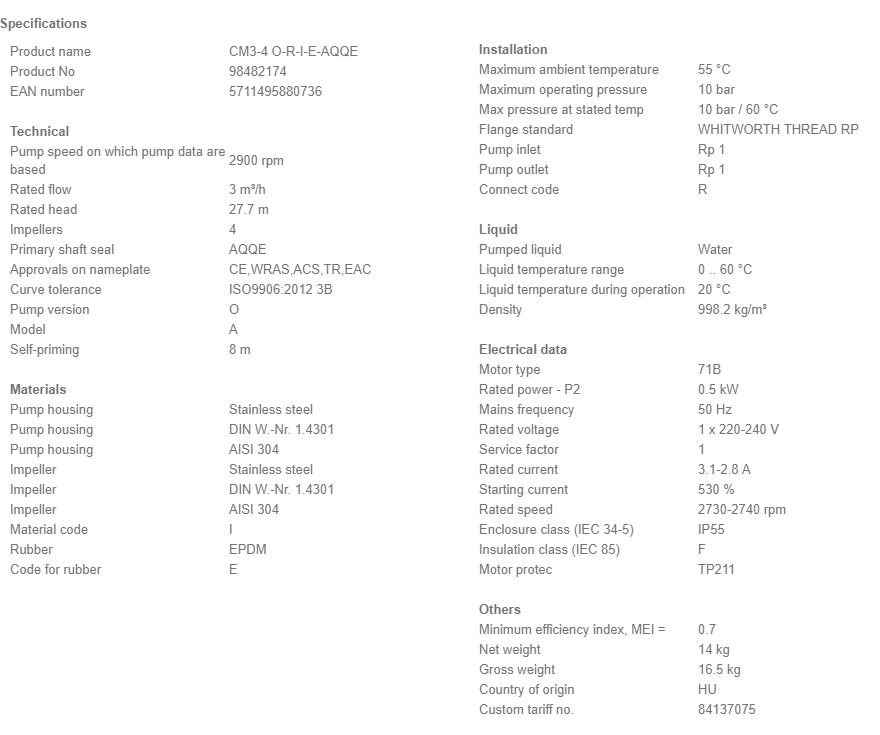

More Information
SKU	98482174
Manufacturer	Grundfos
Manufacturers Warranty	2 Years
GTIN	5711495880736
Weight	15.2 Kg

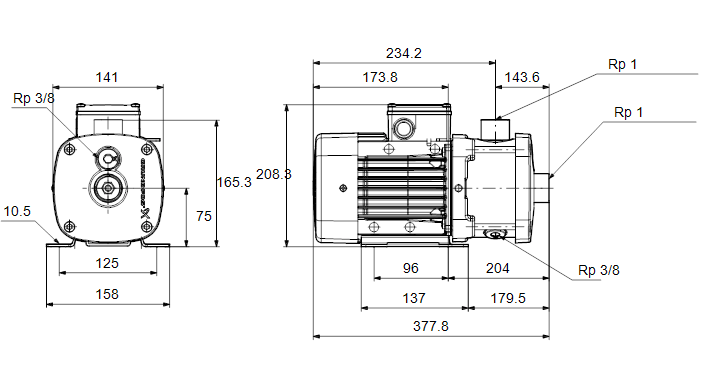

Dimensions	208mm (h) x 142mm (w) x 377mm (d)
Motor Size (kW/W)	0.5 kW / MG71B
Full Load Current (FLC)	3.1/2.8A
Voltage	240V 1Ph 50Hz
Max Flow	4m3/hr
Max Head	37.4m
Material	Stainless Steel
