Grundfos CM 3-5 O R I E AQQE Self Priming Horizontal Multi-stage Booster Pump with MG71B 240V Motor
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
This range of Grundfos CM pumps are self-priming, horizontal, multistage, end-suction centrifugal, that are suitable for applications ranging from small domestic installations to large industrial systems.
Typical applications:
- washing and cleaning
- water treatment
- temperature control
- pressure boosting
- distilling systems
- dosing/mixing
- evaporation
- comprised machinery
- chemical industry
- pharmaceutical industry
Standard features:
- Compact design
- Modular construction/customised solutions
- Energy-optimised pumps
- Worldwide usage
- High reliability
- Easy installation and commissioning
- Service-friendly
Compact, reliable, horizontal, multistage, end-suction centrifugal pump with axial suction port and radial discharge port. The pump is self-priming and can create a suction lift of up to 4 metres. Pump materials in contact with the liquid are in stainless steel. Pipework connection is via internal Whitworth pipe threads, Rp1.

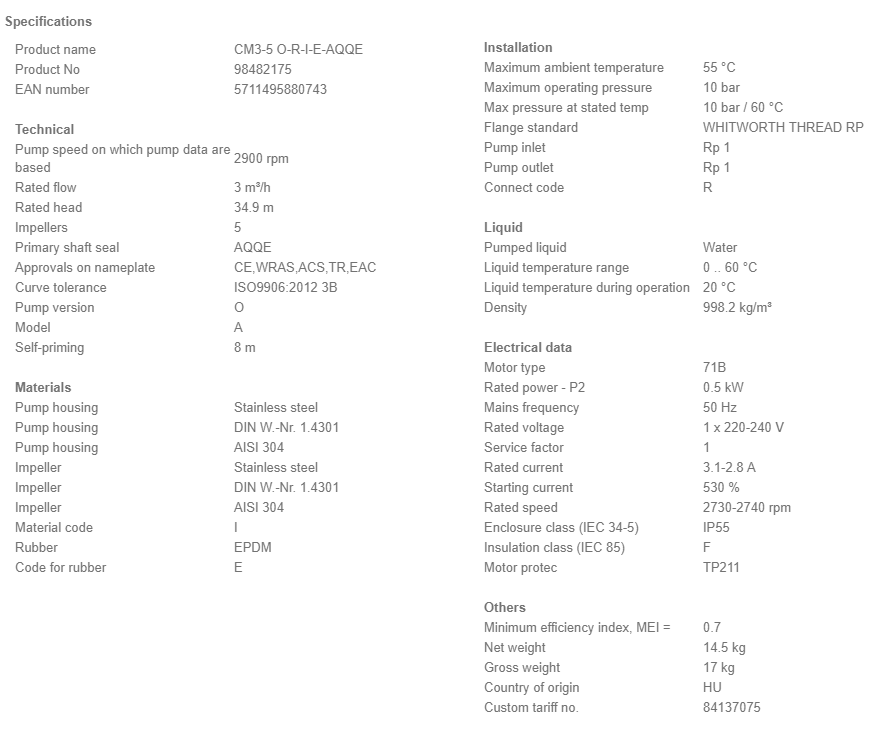

| SKU | 98482175 |
|---|---|
| Manufacturer | Grundfos |
| Manufacturers Warranty | 2 Years |
| GTIN | 5711495880743 |
| Weight | 15.6 Kg |

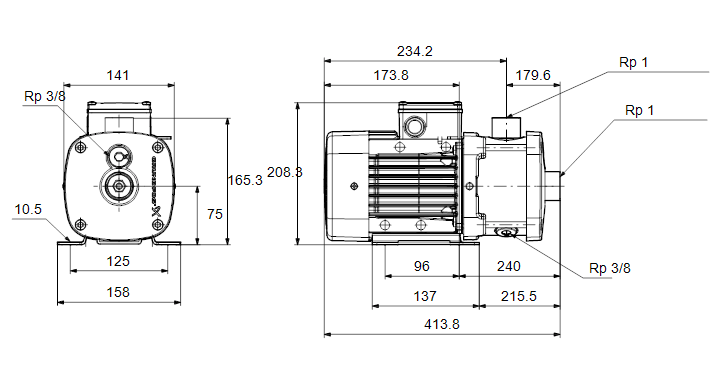

| Dimensions | 208mm (h) x 142mm (w) x 413mm (d) |
| Motor Size (kW/W) | 0.5 kW / MG71B |
| Full Load Current (FLC) | 3.1/2.8A |
| Voltage | 240V 1Ph 50Hz |

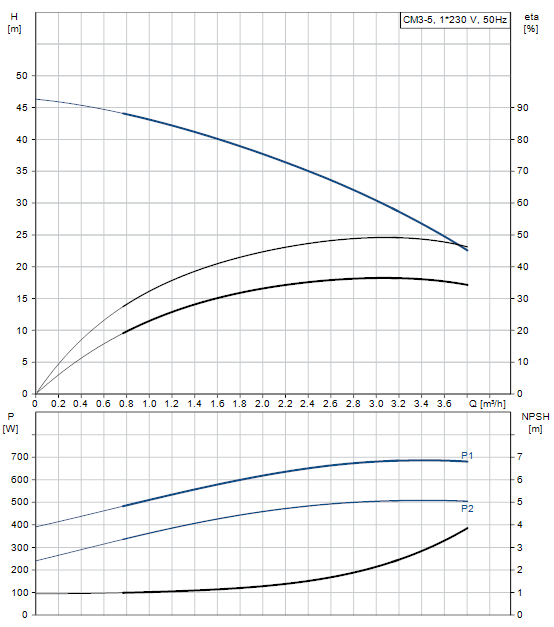

| Max Flow | 3.7m3/hr |
| Max Head | 46m |
| Material | Stainless Steel |
