Grundfos CM 5-4-G A R G E AQQE FAAN Horizontal Multi-stage Booster Pump 415V

SKU
98976437
MRRP £1,246.00 + VAT Our price £873.00 (+ VAT) Incl. VAT: £1047.60

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
15
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

The Grundfos CM pumps are non-self-priming, horizontal, multistage, end-suction centrifugal pumps that are suitable for applications ranging from small domestic installations to large industrial systems.

Typical applications:

  • washing and cleaning
  • water treatment
  • temperature control
  • pressure boosting
  • distilling systems
  • dosing/mixing
  • evaporation
  • comprised machinery
  • chemical industry
  • pharmaceutical industry

Standard features:

  • Compact design
  • Modular construction/customised solutions
  • Energy-optimised pumps
  • Worldwide usage
  • High reliability
  • Easy installation and commissioning
  • Service-friendly



Grundfos CM-G pumps are made from high grade 316 Stainless Steel (EN1.4401).  CM5 pumps have 1 1/4" BSPF Suction and 1" BSPF Discharge pipe connections.



More Information
SKU 98976437
Manufacturer Grundfos
Manufacturers Warranty 2 Years
GTIN 5700310918143
Weight 18.0 Kg

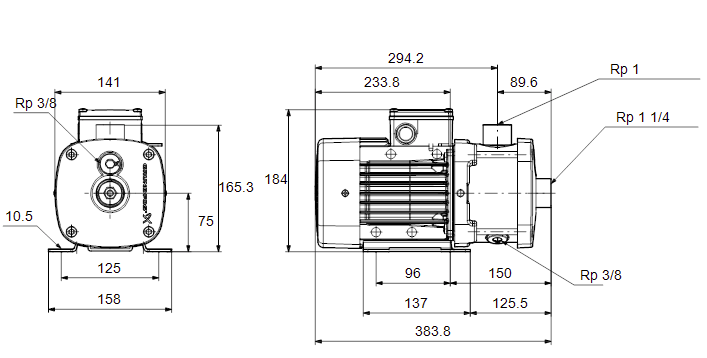

Dimensions 184mm (h) x 158mm (w) x 363mm (d)
Motor Size (kW/W) 0.84 kW / MG80A Motor
Full Load Current (FLC) 3.5-3.8/2-2.22 A
Voltage 415V 3Ph 50Hz
Max Flow 6.3m3/hr
Max Head 38m
Material Stainless Steel
