Grundfos Comfort 15-14 B TDT Brass Comfort Hot Water Circulator Pump with Timer & Temperature Control 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Grundfos Comfort 15-14 B TDT Brass Comfort Hot Water Circulator Pump with Timer & Temperature Control 240v - 93093802

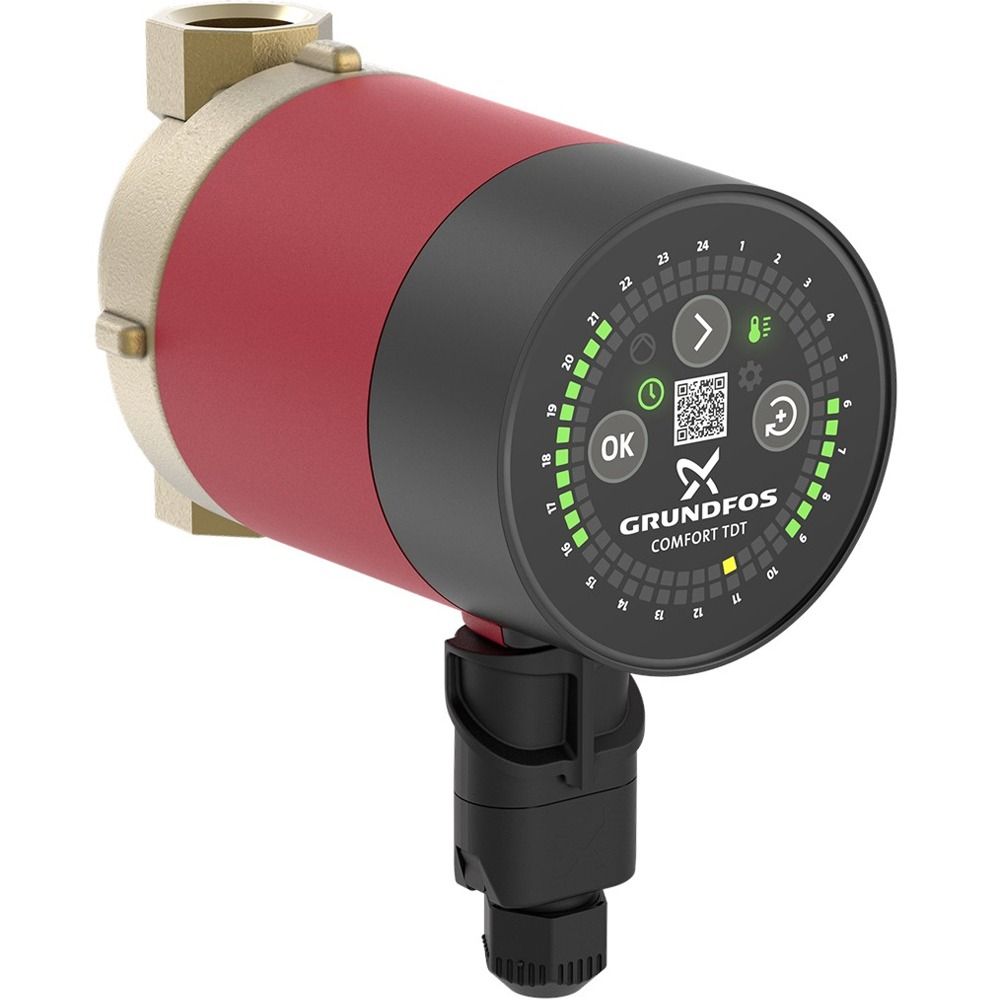

COMFORT TDT is an efficient circulator designed for hot-water recirculation in residential buildings with a dedicated return line. It is compatible with all types of water heater tanks, tankless systems, solar or heat pumps regardless of whether the system has mixing or tampering valves installed. The pump features a compact housing and a permanent magnet with an integrated control unit. The spherical rotor, equipped with an impeller, ensures optimal functionality supported by a robust single-bearing ball system. The drinking-water approved brass pump housing guarantees both safety and reliability. COMFORT TDT moreover features a built-in temperature sensor to maintain water temperature.
The user-friendly interface features LEDs and push-buttons on the operating panel. This offers an intuitive way to display and set operating times and control modes and ensures a comfortable and energy-efficient experience for residential use. The user-friendly interface features LEDs and push-buttons on the operating panel. This offers an intuitive way to display and set operating times and control modes and ensures a comfortable and energy-efficient experience for residential use. The timer and temperature control mode enables the pump to operate based on set operating times and the functionalities of temperature mode, with operating times taking priority. This means that the temperature mode is only active during the specified operating times. This control mode automatically activates the pump when the internal temperature sensor detects that the water temperature drops below a certain level. The control mode automatically adjusts the on/off temperature based on the maximum temperature measured in the system. The maximum temperature of the system is measured every 12 hours for 15 minutes, enabling dynamic adjustment of the on/off temperature.
The product offers:

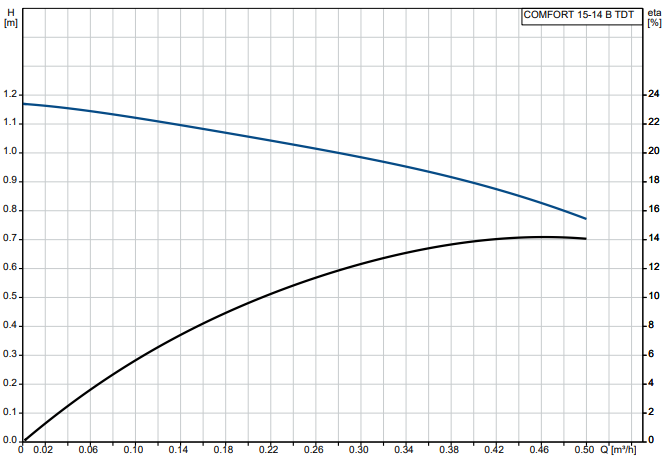

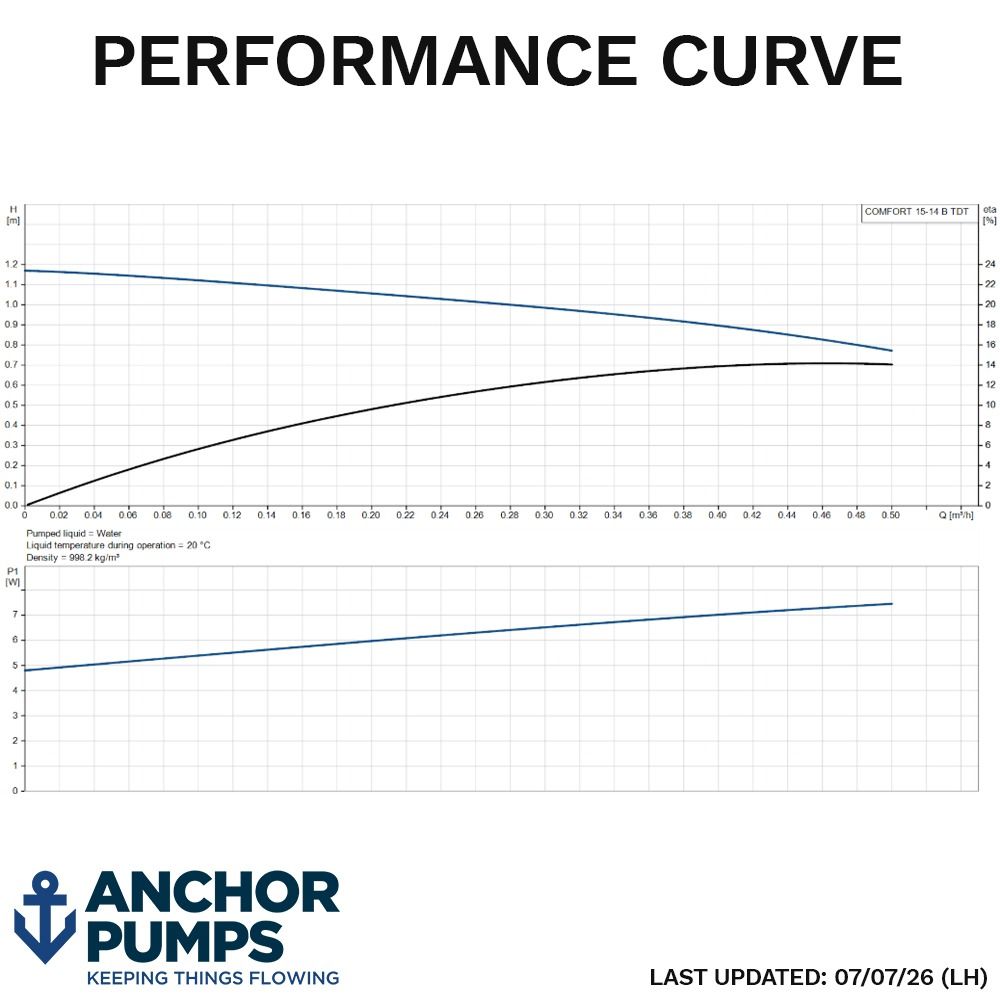

- Q-H performance that is designed for single—and multi-family homes, depending on the required duty point to accommodate heat loss in a specific pipe layout.
- Heat loss reduction by 56 % compared to continuously running pump.
- Low power consumption and silent operation.
- Compliance with pipe manufacturers’ flow velocity limits, including DN 15, DN 20 PEX, copper, and others.
- Drinking-water approval, ensured by the brass pump housing, stainless-steel rotor, and composite impeller.
- A design that makes it easy to clean limescale and foreign deposits by removing the pump head, enabling the product to meet unlimited water hardness requirements.
- Dry-running protection to prevent failure if the system runs out of water.
- Multiple installation positions, even with the pump head pointing downwards.
- A pump head designed to fit brass pump housings of old and new pumps of the same design, even from different pump manufacturers (such as WILO, VORTEX, LOWARA, DAB and others).

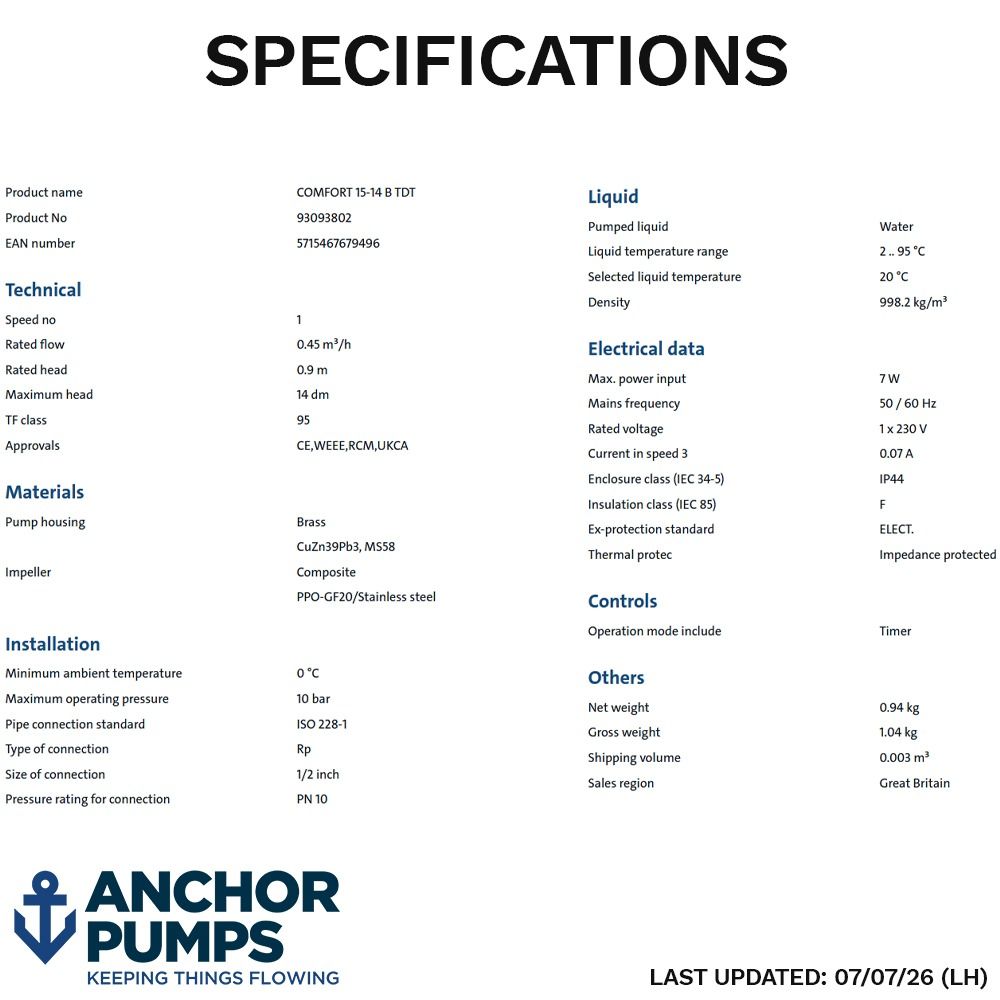

| SKU | 93093802 |
|---|---|
| Manufacturer | Grundfos |
| Manufacturers Warranty | 2 Years |
| Weight | 1.5 Kg |

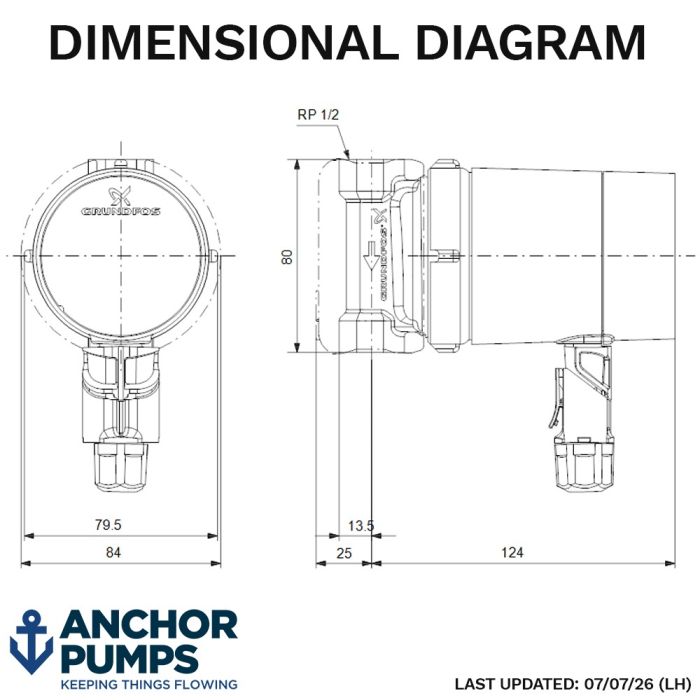

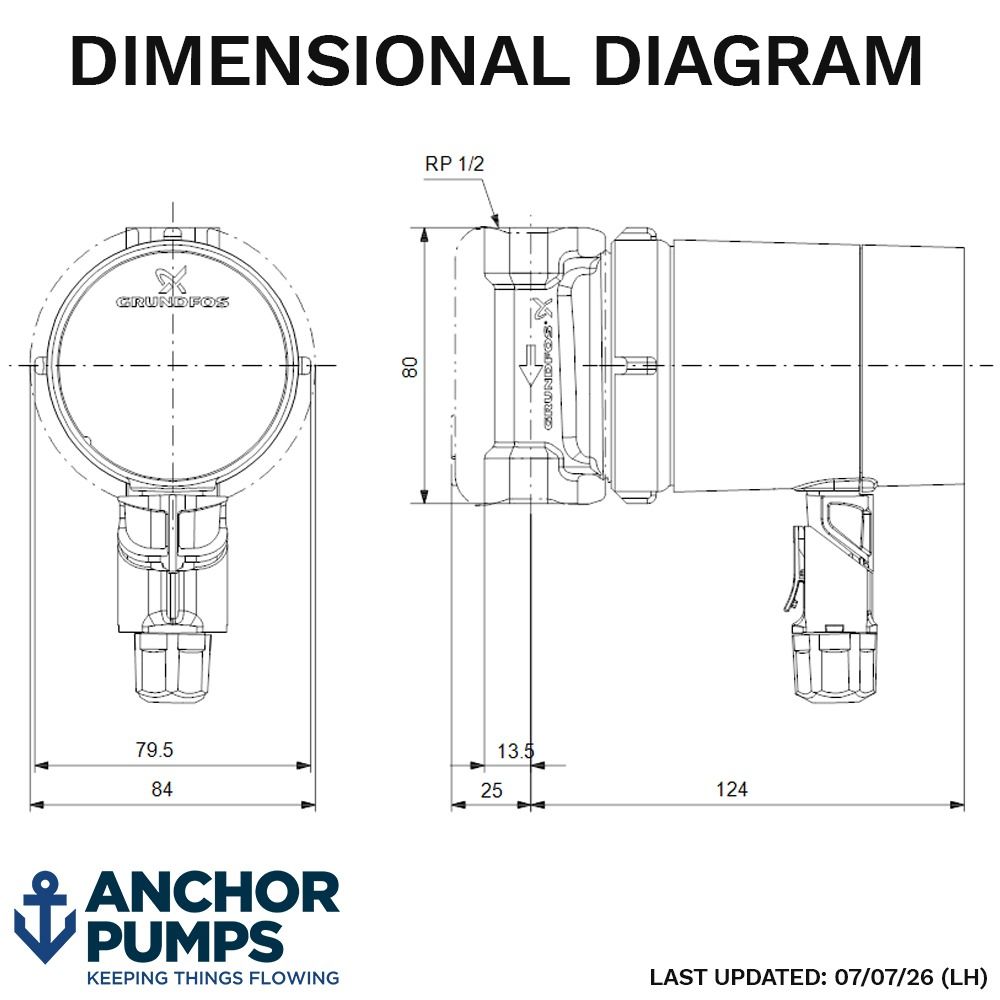

| Dimensions | 124mm (h) x 84mm (w) x 80mm (d) |
| Connection Type | 1/2 Inch BSP |
| Motor Size (kW/W) | 7W |
| Full Load Current (FLC) | 0.07A at speed 3 |
| Voltage | 240V 1Ph 50Hz |
| Max Flow | 0.45 m3/hr |
| Max Head | 1.1m |
| Max Pressure | 10 Bar |
| Max Temperature | 95°C |
| Material | Brass |
| Impeller Material | Composite |
