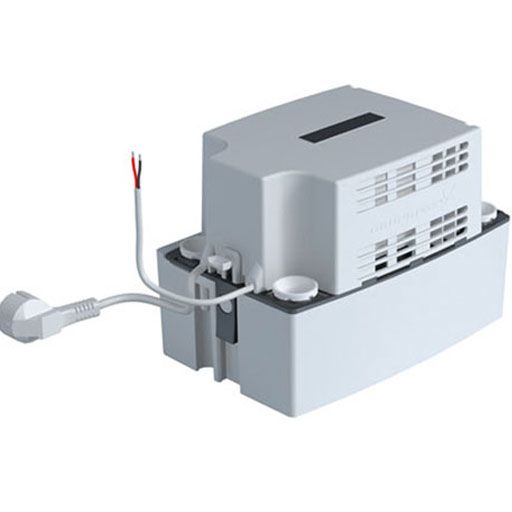

Grundfos CONLIFT 1 Automatic Condensate Removal Pump 240V
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Grundfos Conlift1, Conlift2 and Conlift2 pH+ are suitable for the pumping of condensate which is collected below sewer level or which cannot flow to the sewage system or drain of the building by means of a natural downward slope.
Typical applications:
- Condensate boilers. A 200 kW boiler can be drained up to 5 m duty point
- For condensate with a pH value above 2.5
- For condensate from air-conditioning systems, cooling and refrigeration systems, air dehumidifiers and evaporators
- For condensate with a pH value below 2.5, useConlift2 pH+
Functions:
- Condensate runs by natural fall through a hose into the tank
- Liquid level in the tank is controlled automatically by a float switch
- Condensate is pumped through the discharge hose to the drain
- Safety overflow switch with a 1.7-metre electric cable which can be connected to the condensate boiler and set to stop the boiler in case of an alarm
- Maintenance-free shaded-pole motor
Features:
- Four inlets with grommets to seal and fix the inlet hose
- 180 °-rotatable flange for selection of optimum discharge position
- IP24 cover for protection against splashing water
- Two snap-fasteners enabling easy access to the tank in case of service
- Pump operation test button
- Stepped outlet socket for ∅8 and ∅10 mm hoses
- Non-return valve with bayonet connection for easy service
- Special inlet design preventing sedimentation and evaporation from boiler
- Stainless-steel motor shaft additionally protected by a shaft seal
- Self-venting hydraulics
- Rotating lip seal protecting bearing and motor against evaporation from tank
- Special float switch designed to prevent evaporation from tank and corrosion on micro switches
- Alignment wheel enabling easy adjustment in wall-hung installations
- Suitable for wall-hung and floor-standing installation
In order to protect the sewage system, we recommend the use of a neutralisation unit. The neutralisation unit is included in Conlift2 pH+ and is available as an
accessory for Conlift1 and Conlift2. Irrespective of the capability of the Conlift, local regulations may require the installation of a neutralisation unit, even for pH values of 2.5 or higher.
| SKU | 97936173 |
|---|---|
| Manufacturer | Grundfos |
| Manufacturers Warranty | 2 Years |
| GTIN | 5710626733910 |
| Weight | 3.1 Kg |

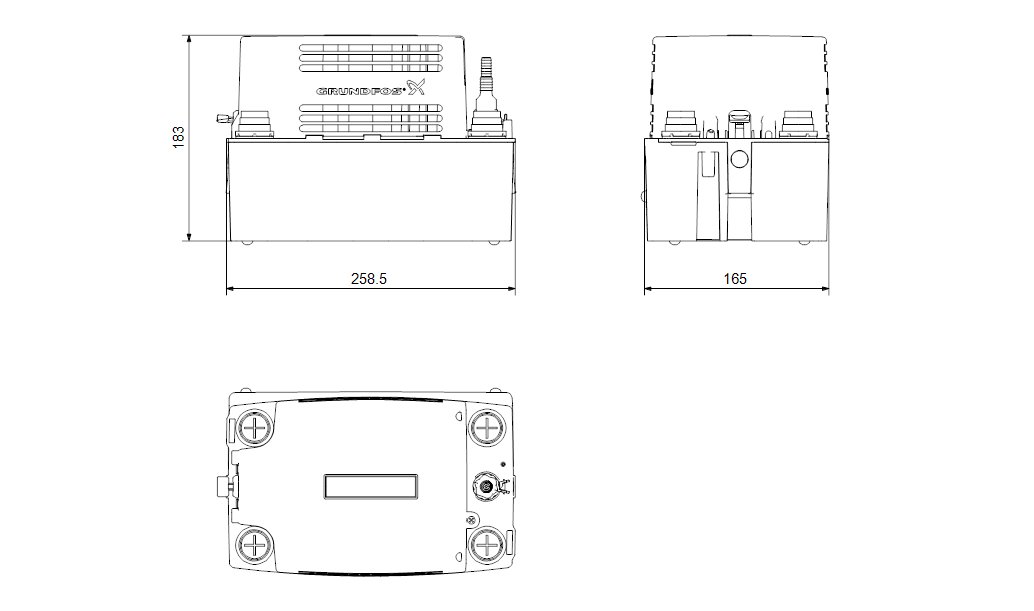

| Dimensions | 183mm (h) x 165mm (w) x 258mm (d) |
| Motor Size (kW/W) | 0.75 kW |
| Full Load Current (FLC) | 0.65A |
| Voltage | 240V 1Ph 50Hz |
| Max Flow | 588 l/hr |
| Max Head | 5.7m |
| Material | Plastic |
