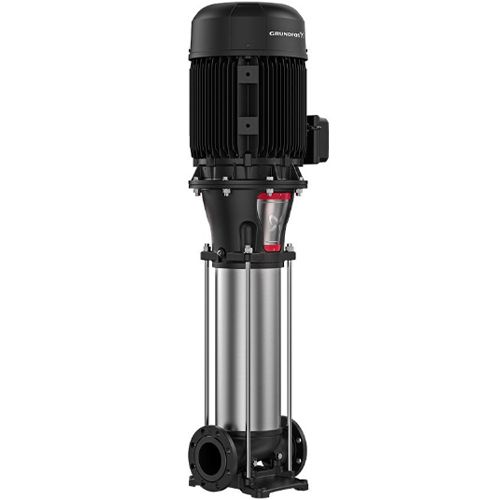

Grundfos CR 155-1 A F A V HQQV 15kW Vertical Multi-Stage Pump 415V
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Grundfos CR 155 Pumps are vertical, non-self-priming, multistage, in-line, centrifugal pumps for installation in pipe systems and mounting on a foundation - suitable for Industrial applications.
Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline).
The pump head and base are in cast iron – all other wetted parts are in stainless steel.
The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling.
The pump is fitted with a 3-phase, fan-cooled asynchronous motor.
CR models are DIN flanged as standard and are supplied without counter flanges to EN 1092-2-1997.
| SKU | 99143263 |
|---|---|
| Manufacturer | Grundfos |
| Manufacturers Warranty | 2 Years |
| GTIN | 5712607552916 |
| Weight | 321.0 Kg |
| Dimensions | 1265mm (h) x 499mm (w) x 485mm (d) |
| Inlet Dimension | DN 150 |
| Discharge Dimension | DN 150 |
| Motor Size (kW/W) | 15 kW |
| Full Load Current (FLC) | 16,2-15,6 A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2957rpm |
| Max Flow | 201m3/hr |
| Max Head | 37m |
| Max Temperature | -20 - 90 °C |
| Material | Cast Iron |
| Impeller Material | Stainless Steel |
