Grundfos CR 95-5 A F A V HQQV 37kW Vertical Multi-Stage Pump 415V
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

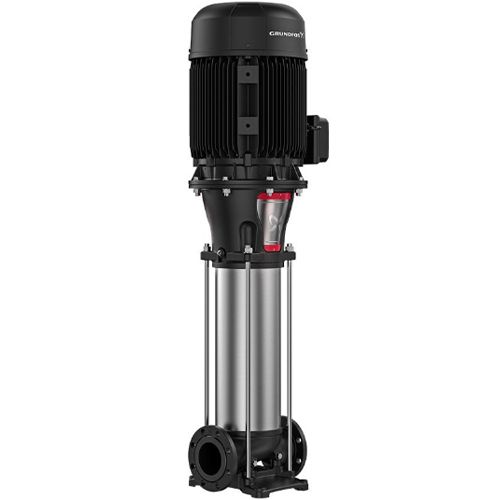

Grundfos CR 95 Pumps are vertical, non-self-priming, multistage, in-line, centrifugal pumps for installation in pipe systems and mounting on a foundation - suitable for Industrial applications.
Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline).
The pump head and base are in cast iron – all other wetted parts are in stainless steel.
The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling.
The pump is fitted with a 3-phase, fan-cooled asynchronous motor.
CR models are DIN flanged as standard and are supplied without counter flanges to EN 1092-2-1997.
| SKU | 99141753 |
|---|---|
| Manufacturer | Grundfos |
| Manufacturers Warranty | 2 Years |
| GTIN | 5712607527495 |
| Weight | 452.0 Kg |
| Dimensions | 1750mm (h) x 419mm (w) x 380mm (d) |
| Inlet Dimension | DN 100 |
| Discharge Dimension | DN 100 |
| Motor Size (kW/W) | 37 kW |
| Full Load Current (FLC) | 39,0-36,0 A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2965rpm |

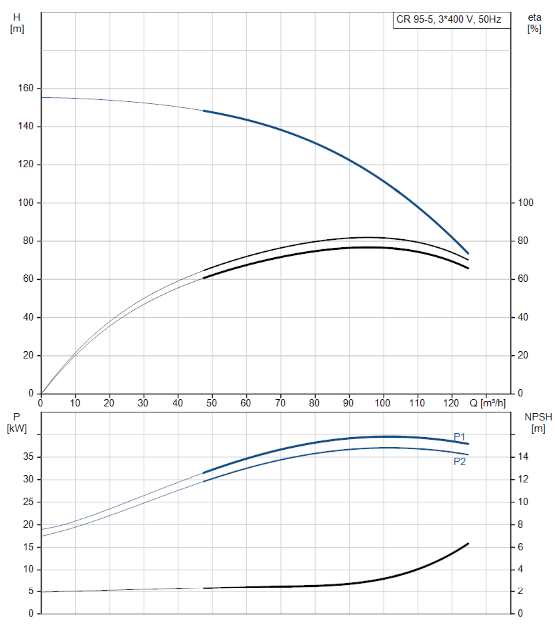

| Max Flow | 124m3/hr |
| Max Head | 155m |
| Max Temperature | -20 - 90 °C |
| Material | Cast Iron |
| Impeller Material | Stainless Steel |
