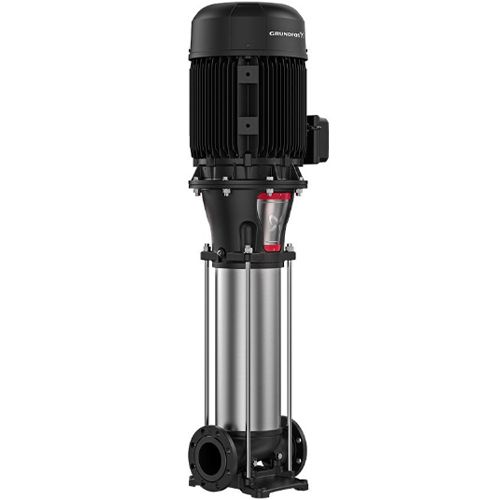

Grundfos CR 95-7 A F A V HQQV 55kW Vertical Multi-Stage Pump 415V

Name: Grundfos CR 95-7 A F A V HQQV 55kW Vertical Multi-Stage Pump 415V
Brand: Grundfos
SKU: 99141755
Price: 17902 GBP
Availability: InStock

SKU

99141755

MRRP £25,573.00 + VAT Our price £17,902.00 (+ VAT) Incl. VAT: £21482.40

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Grundfos CR 95 Pumps are vertical, non-self-priming, multistage, in-line, centrifugal pumps for installation in pipe systems and mounting on a foundation - suitable for Industrial applications.

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline).

The pump head and base are in cast iron – all other wetted parts are in stainless steel.

The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling.

The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

CR models are DIN flanged as standard and are supplied without counter flanges to EN 1092-2-1997.

More Information
SKU	99141755
Manufacturer	Grundfos
Manufacturers Warranty	2 Years
GTIN	5712607527532
Weight	747.0 Kg
Inlet Dimension	DN 100
Discharge Dimension	DN 100
Motor Size (kW/W)	55 kW
Full Load Current (FLC)	57,0-52,0 A
Voltage	415V 3Ph 50Hz
RPM	2976rpm
Max Flow	125m3/hr
Max Head	218m
Max Temperature	-20 - 90 °C
Material	Cast Iron
Impeller Material	Stainless Steel
