Grundfos CRN 10-5 A FGJ H E HQQE 2.2kW Stainless Steel Vertical Multi-Stage Pump 240v

Name: Grundfos CRN 10-5 A FGJ H E HQQE 2.2kW Stainless Steel Vertical Multi-Stage Pump 240v
Brand: Grundfos
SKU: 96527735
Price: 2209 GBP
Availability: InStock

SKU

96527735

MRRP £3,155.00 + VAT Our price £2,209.00 (+ VAT) Incl. VAT: £2,650.80

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Choose Flange Kit Option

Choose Gasket Set Option

Qty

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

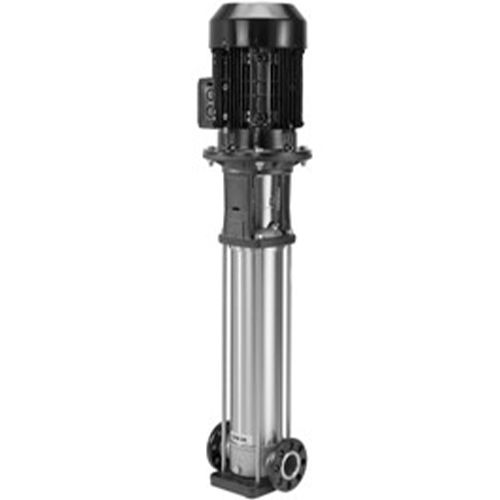

Grundfos CRN 10-5 A FGJ H E HQQE 2.2kW Stainless Steel Vertical Multi-Stage Pump with DIN flanged connection 240v

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline).

Pump materials in contact with the liquid are in high-grade stainless steel.

Power transmission is via a rigid split coupling.

Pipe connection is via combined DIN-ANSI-JIS flanges.

The pump is fitted with a 1-phase, fan-cooled asynchronous motor.

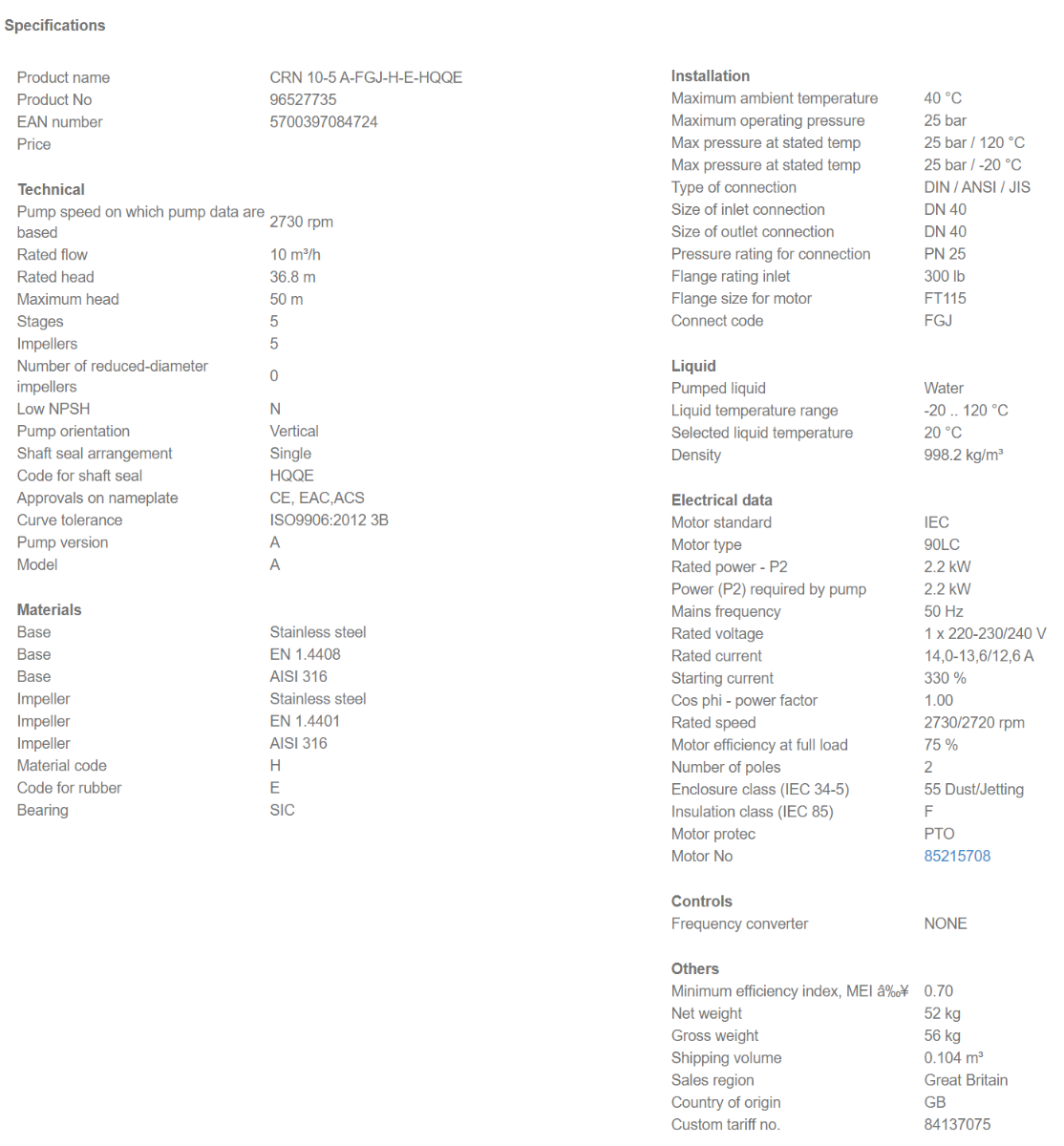

More Information
SKU	96527735
Manufacturer	Grundfos
Manufacturers Warranty	2 Years
GTIN	5700397084724
Weight	56.0 Kg

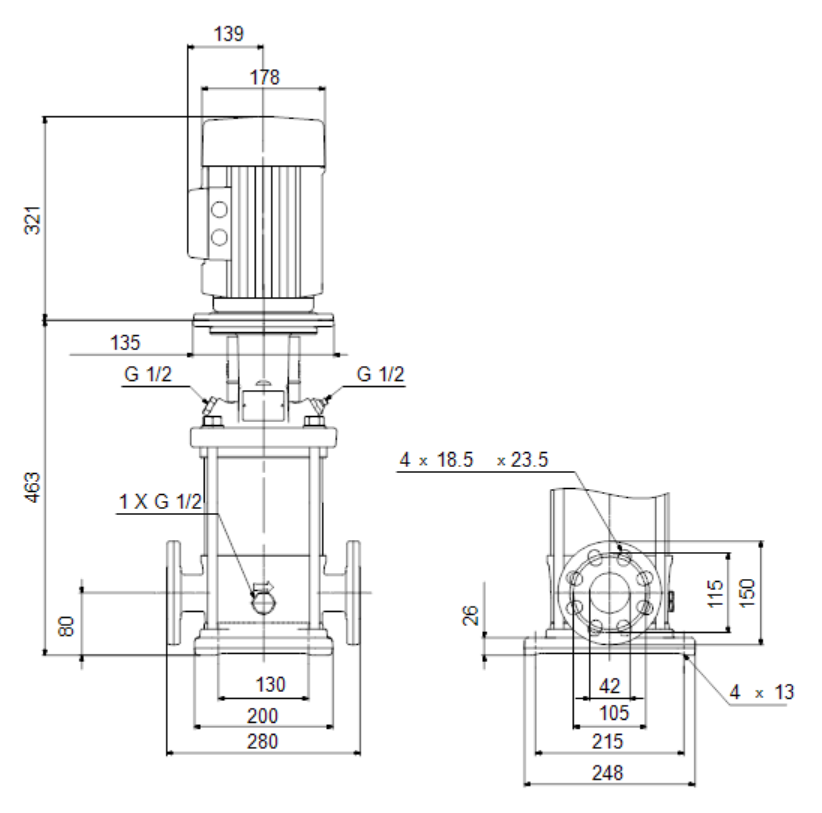

Dimensions	784mm (h) x 248mm (w) x 280mm (d)
Inlet Dimension	DN 40
Discharge Dimension	DN 40
Motor Size (kW/W)	2.2 kW
Full Load Current (FLC)	14,0-13,6/12,6 A
Voltage	240V 1Ph 50Hz
RPM	2730rpm

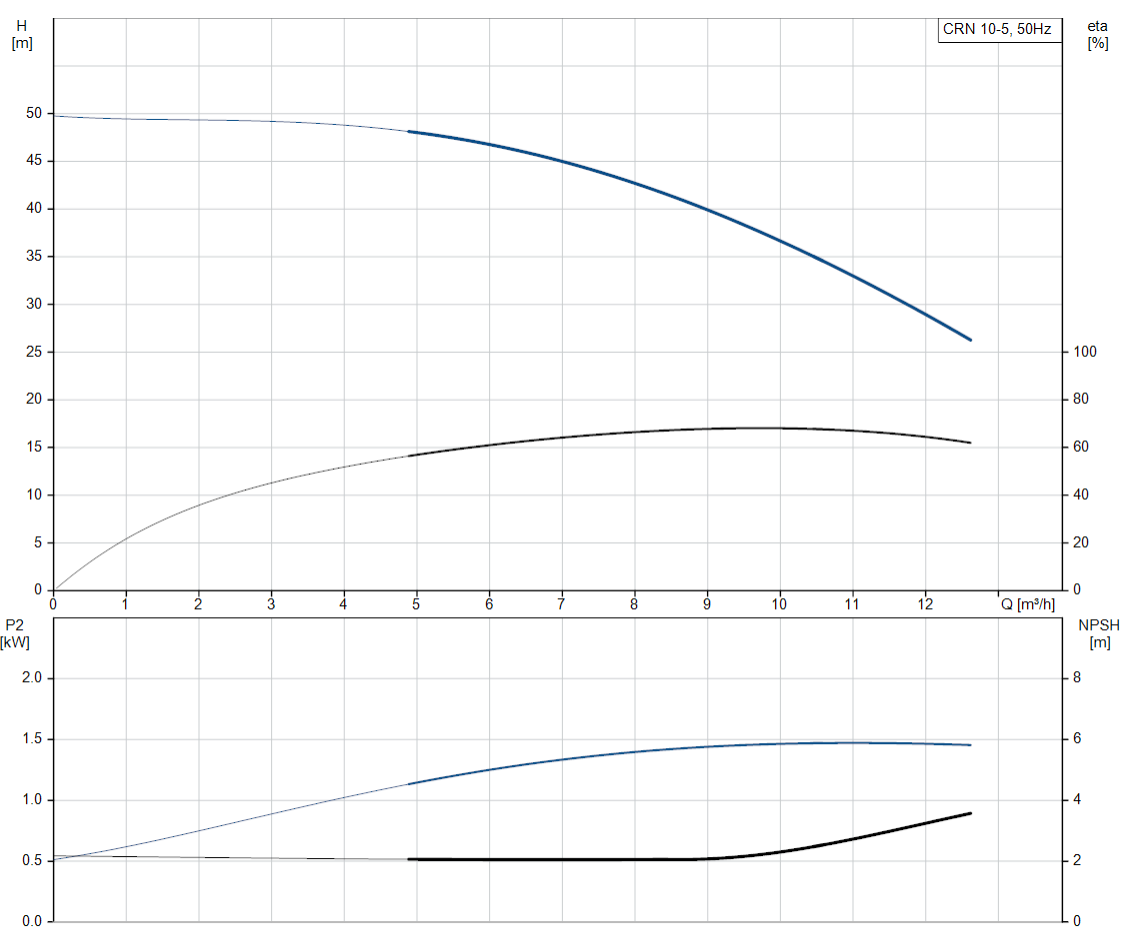

Max Flow	12.65m3/hr
Max Head	50m
Max Temperature	120 °C
Material	Stainless Steel
Impeller Material	Stainless Steel
