Grundfos CRN 125-3-1 A F H E HQQE 30kW Stainless Steel Vertical Multi-Stage Pump 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

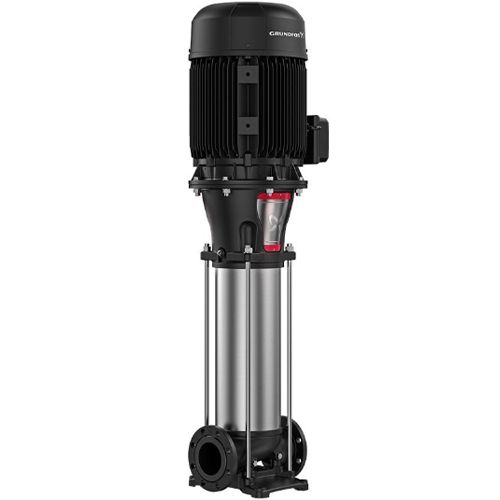

Grundfos CRN 125-3-1 A F H E HQQE 30kW Stainless Steel Vertical Multi-Stage Pump with DIN flanged connection 415v
Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline).
Pump materials in contact with the liquid are in high-grade stainless steel.
Power transmission is via a rigid split coupling.
Pipe connection is via combined DIN-ANSI-JIS flanges.
The pump is fitted with a 3-phase, fan-cooled asynchronous motor.
| SKU | 99142645 |
|---|---|
| Manufacturer | Grundfos |
| Manufacturers Warranty | 2 Years |
| GTIN | 5712607541569 |
| Weight | 460.0 Kg |

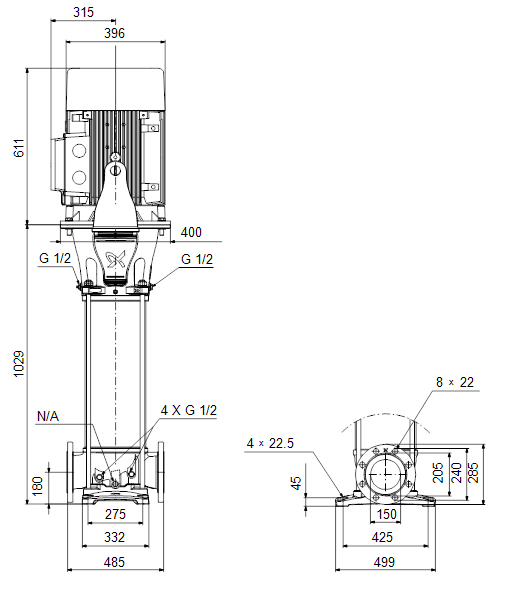

| Dimensions | 1640mm (h) x 499mm (w) x 485mm (d) |
| Inlet Dimension | DN150 |
| Discharge Dimension | DN150 |
| Motor Size (kW/W) | 30 kW |
| Full Load Current (FLC) | 32,0-29,5 A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2971rpm |

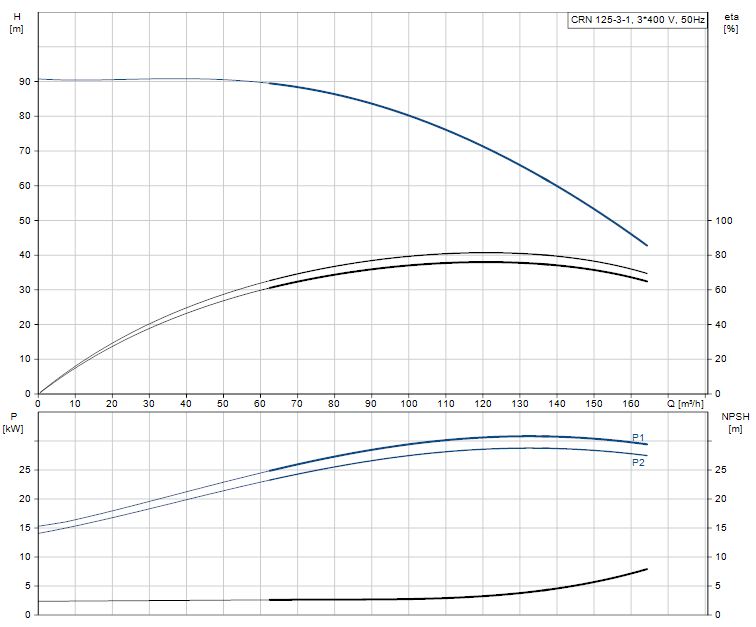

| Max Flow | 164.81m3/hr |
| Max Head | 90.8m |
| Max Temperature | 120 °C |
| Material | Stainless Steel |
| Impeller Material | Stainless Steel |
