Grundfos CRN 155-4-1 A F H E HQQE 55kW Stainless Steel Vertical Multi-Stage Pump 415v

Name: Grundfos CRN 155-4-1 A F H E HQQE 55kW Stainless Steel Vertical Multi-Stage Pump 415v
Brand: Grundfos
SKU: 99143275
Price: 22391 GBP
Availability: InStock

SKU

99143275

MRRP £31,987.00 + VAT Our price £22,391.00 (+ VAT) Incl. VAT: £26869.20

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Choose Flange Kit Option

Choose Gasket Set Option

Qty

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

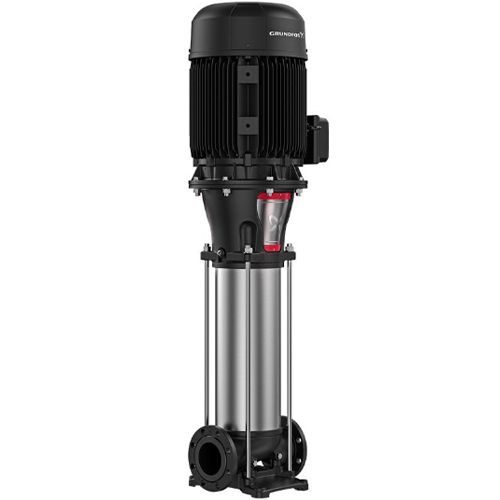

Grundfos CRN 155-4-1 A F H E HQQE 55kW Stainless Steel Vertical Multi-Stage Pump with DIN flanged connection 415v

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline).

Pump materials in contact with the liquid are in high-grade stainless steel.

Power transmission is via a rigid split coupling.

Pipe connection is via combined DIN-ANSI-JIS flanges.

The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

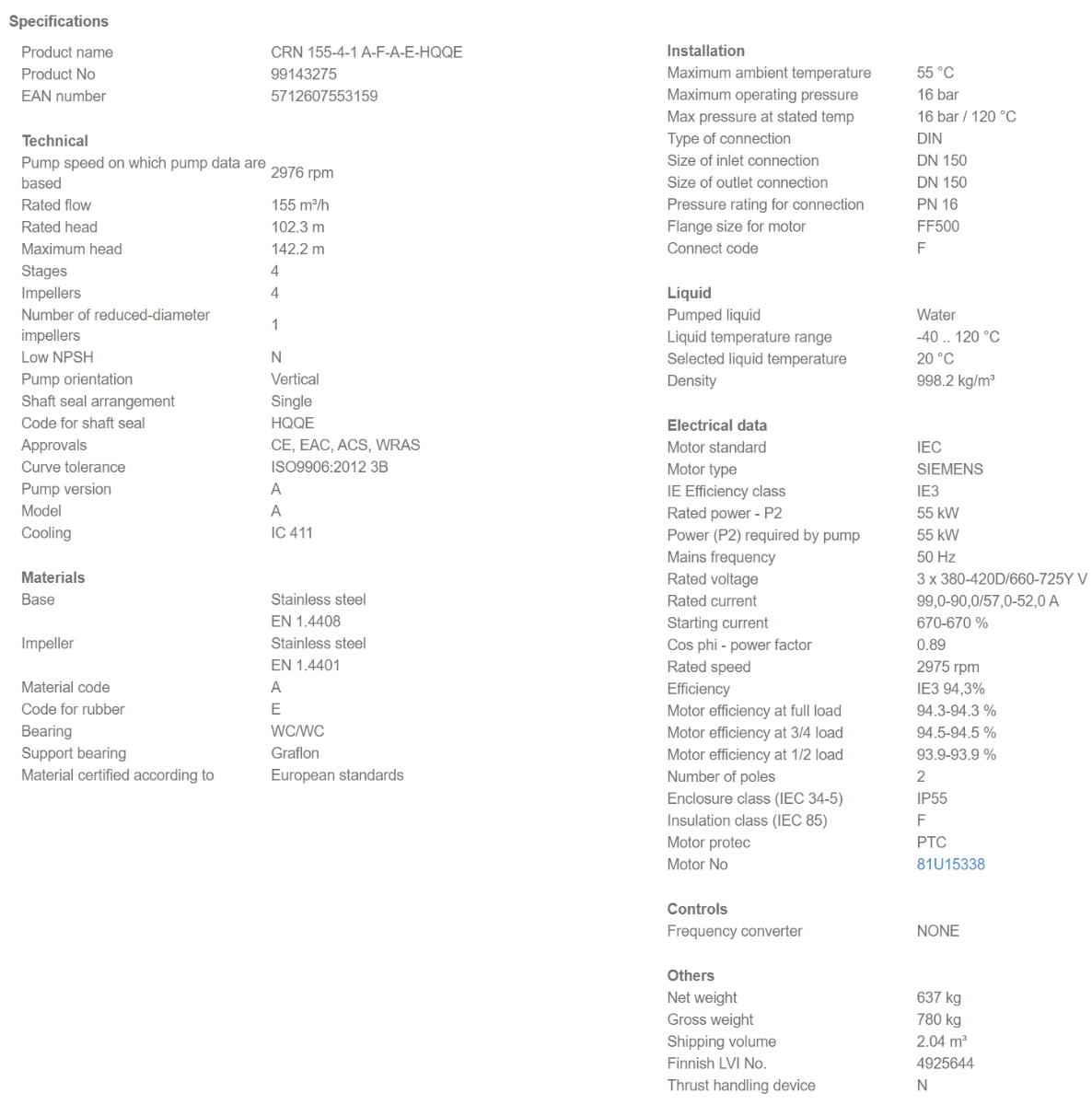

More Information
SKU	99143275
Manufacturer	Grundfos
Manufacturers Warranty	2 Years
GTIN	5712607553159
Weight	780.0 Kg

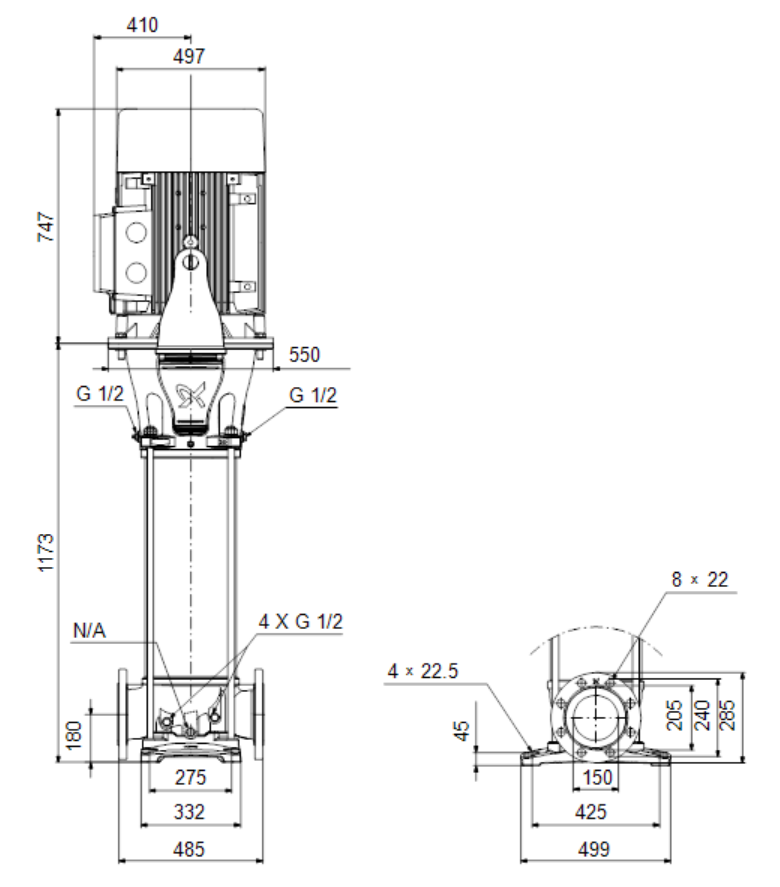

Dimensions	1920mm (h) x 499mm (w) x 485mm (d)
Inlet Dimension	DN150
Discharge Dimension	DN150
Motor Size (kW/W)	55 kW
Full Load Current (FLC)	57,0-52,0 A
Voltage	415V 3Ph 50Hz
RPM	2976rpm

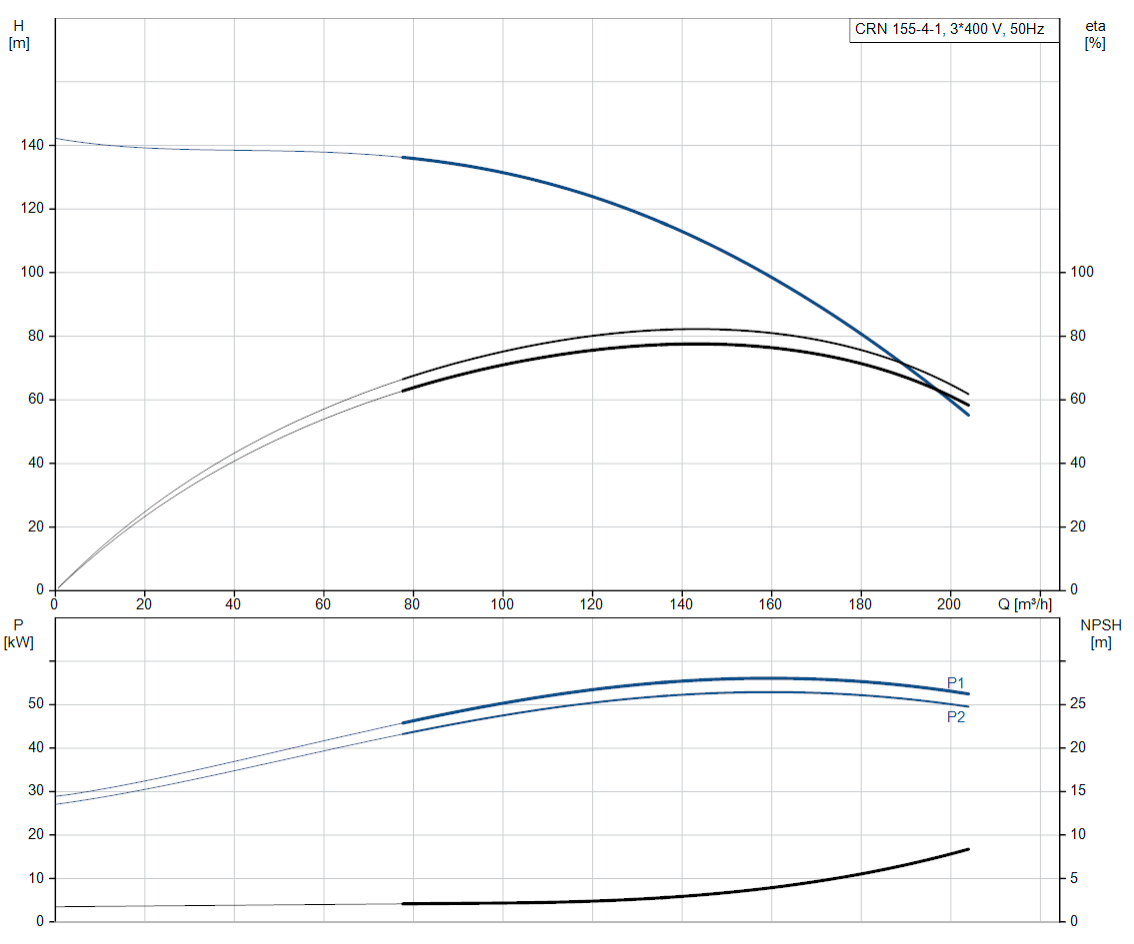

Max Flow	204.25m3/hr
Max Head	142.2m
Max Temperature	120 °C
Material	Stainless Steel
Impeller Material	Stainless Steel
