Grundfos CRN 20-2 A P A E HQQE 2.2kW Stainless Steel Vertical Multi-Stage Pump 415v

Name: Grundfos CRN 20-2 A P A E HQQE 2.2kW Stainless Steel Vertical Multi-Stage Pump 415v
Brand: Grundfos
SKU: 96500382
Price: 1855 GBP
Availability: InStock

SKU

96500382

MRRP £2,650.00 + VAT Our price £1,855.00 (+ VAT) Incl. VAT: £2,226.00

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Choose Coupling Kit Option

Choose Gasket Set Option

Qty

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

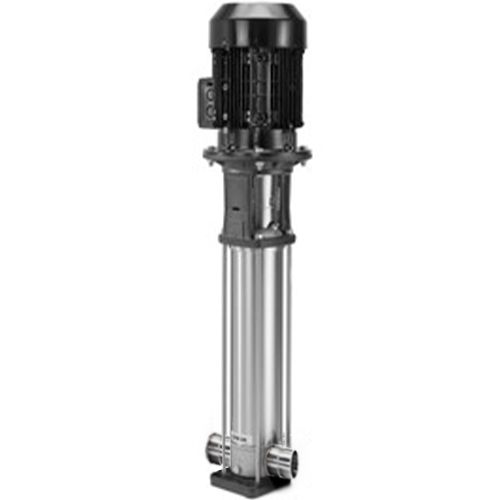

Grundfos CRN 20-2 A P A E HQQE 2.2kW Stainless Steel Vertical Multi-Stage Pump with PJE compatible connections 415v

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline).

Pump materials in contact with the liquid are in high-grade stainless steel.

Power transmission is via a rigid split coupling.

Pipe connection is via PJE couplings.

The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

More Information
SKU	96500382
Manufacturer	Grundfos
Manufacturers Warranty	2 Years
GTIN	5700396200606
Weight	49.0 Kg

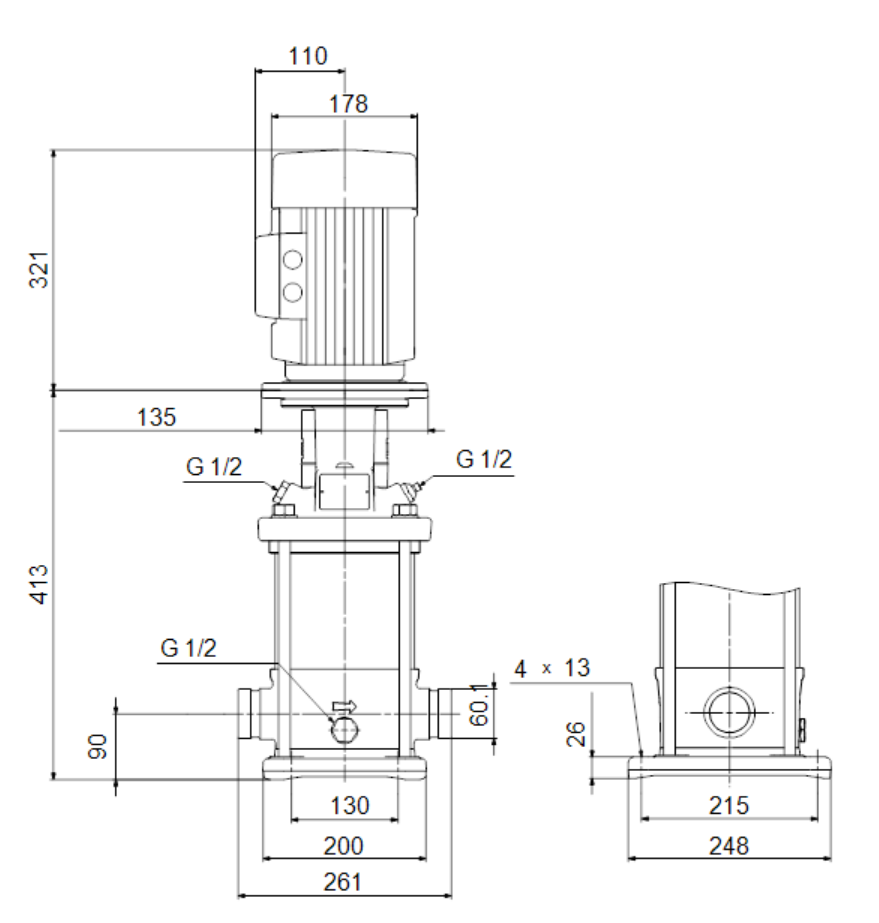

Dimensions	734mm (h) x 248mm (w) x 261mm (d)
Inlet Dimension	DN50
Discharge Dimension	DN50
Motor Size (kW/W)	2.2 kW
Full Load Current (FLC)	4.60 A
Voltage	415V 3Ph 50Hz
RPM	2899rpm
Max Flow	29.30m3/hr
Max Head	28.9m
Max Temperature	120 °C
Material	Stainless Steel
Impeller Material	Stainless Steel
