Grundfos CRN 32-6-2 A F H E HQQE 11kW Stainless Steel Vertical Multi-Stage Pump 415v

Name: Grundfos CRN 32-6-2 A F H E HQQE 11kW Stainless Steel Vertical Multi-Stage Pump 415v
Brand: Grundfos
SKU: 96536136
Price: 6485 GBP
Availability: InStock

SKU

96536136

MRRP £9,264.00 + VAT Our price £6,485.00 (+ VAT) Incl. VAT: £7782.00

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Choose Flange Kit Option

Choose Gasket Set Option

Qty

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

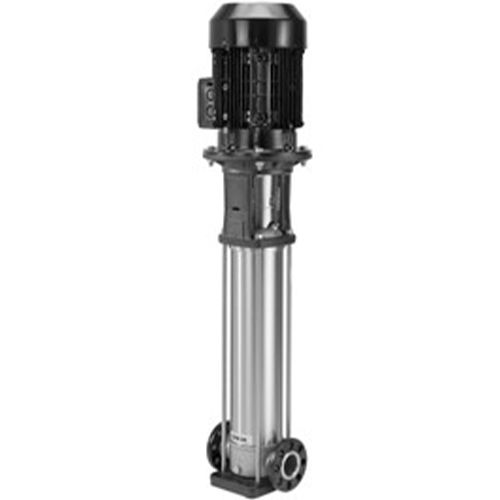

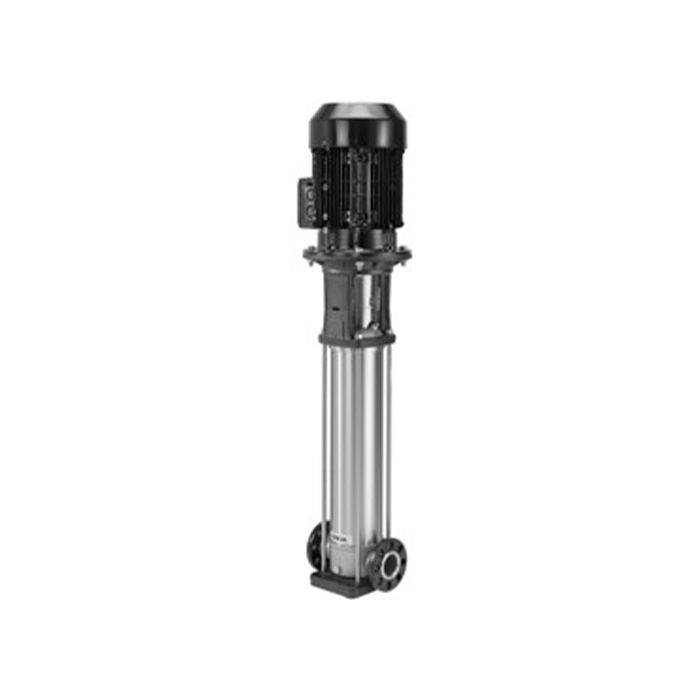

Grundfos CRN 32-6-2 A F H E HQQE 11kW Stainless Steel Vertical Multi-Stage Pump with DIN flanged connection 415v

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline).

Pump materials in contact with the liquid are in high-grade stainless steel.

Power transmission is via a rigid split coupling.

Pipe connection is via combined DIN-ANSI-JIS flanges.

The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

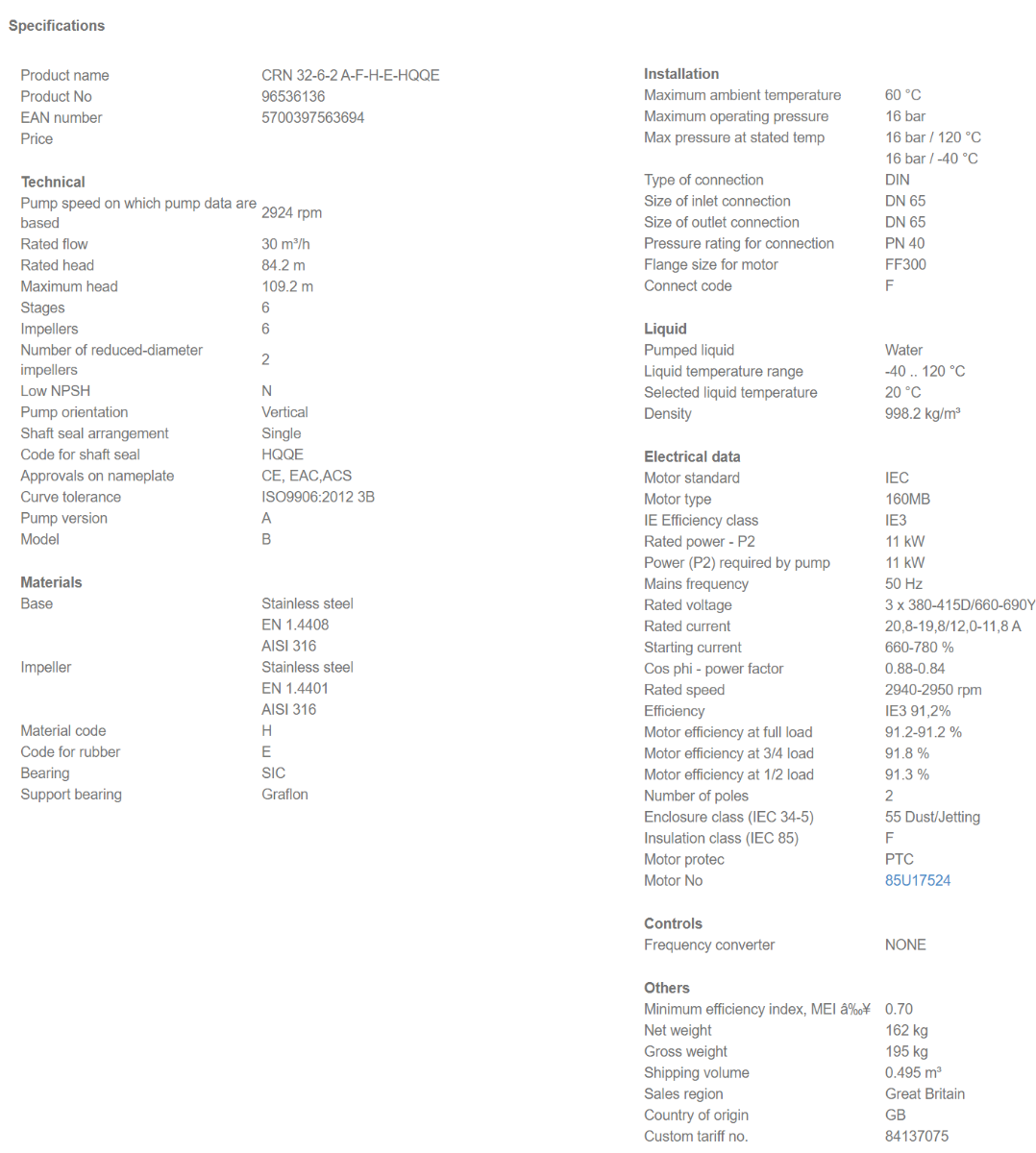

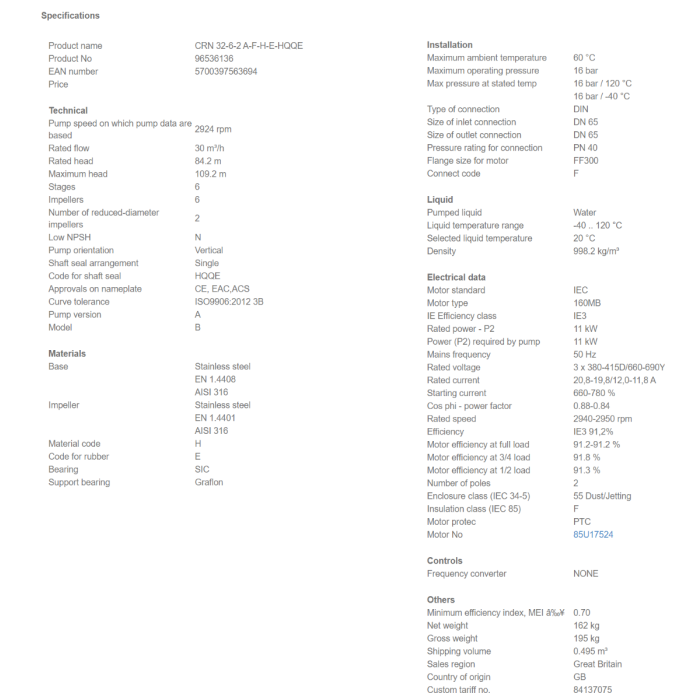

More Information
SKU	96536136
Manufacturer	Grundfos
Manufacturers Warranty	2 Years
GTIN	5700397563694
Weight	195.0 Kg
Dimensions	1447mm (h) x 298mm (w) x 320mm (d)
Inlet Dimension	DN65
Discharge Dimension	DN65
Motor Size (kW/W)	11 kW
Full Load Current (FLC)	12,0-11,8 A
Voltage	415V 3Ph 50Hz
RPM	2924rpm
Max Flow	40.71m3/hr
Max Head	109.2m
Max Temperature	120 °C
Material	Stainless Steel
Impeller Material	Stainless Steel
