Grundfos Hydro Multi-E 2 CRIE15-1 (240v) Booster Set
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
HYDRO MULTI-E 2 CRIE15-01

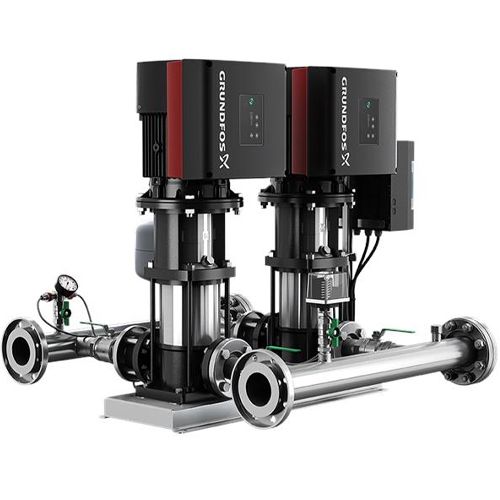

GRUNDFOS Hydro Multi-E booster sets are designed for the transfer and pressure boosting of clean water in waterworks, blocks of flats, hotels, industry, hospitals, schools, etc. GRUNDFOS Hydro Multi-E booster set consists of 2 to 4 CRIE pumps coupled in parallel and mounted on a common base frame provided with all the necessary fittings.
Hydro Multi-E is mounted on a common base frame made of stainless steel (DIN W.-Nr. 1.4301). On the suction side are fitted a suction manifold (DIN W.-Nr. 1.4401 or DIN W.-Nr. 1.4571) , a pressure switch mounted on a drainable valve and an isolating valve. On the discharge side of the pumps are fitted a non-return valve, an isolating valve, a pressure gauge, two pressure transmitters mounted on a drainable valve a diaphragm tank and a stainless steel discharge manifold (DIN W.-Nr. 1.4401 or DIN W.-Nr. 1.4571). The Hydro Multi-E is fitted with an on/off-switch for the supply voltage.
The Hydro Multi-E is designed for maintaining a constant pressure regardless of flow changes and fluctuation.
The internal PI-controller regulates the number of running pumps and the speed of the pumps according to the required flow.
The system can be operated directly on the panel of any of the pumps or via Grundfos GO (available as accessory)
Besides the system features:
2 Digital outputs 2 Digital inputs (one used for dry run protection) 2 Analogue inputs (one used for discharge pressure sensor) Multi-Master functionality 2 Limit functions Set-point influence function Pipe filling function High efficient PM motors
Available communication protocols:
|
When delivered, the GRUNDFOS Hydro Multi-E booster set is factory tested and ready for operation.
| SKU | 98584971 |
|---|---|
| Manufacturer | Grundfos |
| Manufacturers Warranty | 2 Years |
| Weight | 164.0 Kg |
| Inlet Dimension | DN 80 |
| Voltage | 415V 3Ph 50Hz |
| Max Flow | 56.8 m³/h |
| Max Head | 20 m |
| Max Pressure | 10 bar |
| Max Temperature | 60°C |
| Material | Stainless Steel |
| Manufactured In | United Kingdom |
