Grundfos Hydro Multi-E 2 CRIE5-12 (3 x 400v) Booster Set

SKU
99133112
MRRP £15,511.00 + VAT Our price £10,858.00 (+ VAT) Incl. VAT: £13,029.60

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

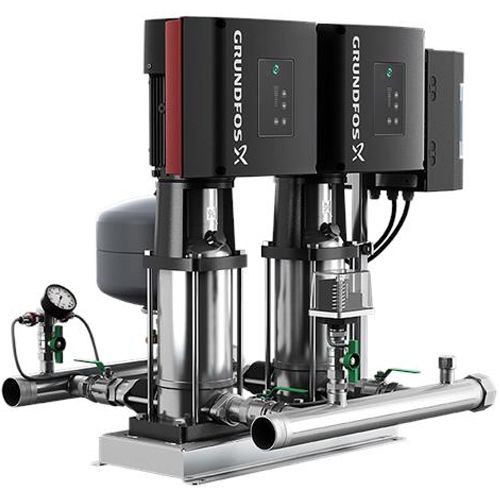

HYDRO MULTI-E 2 CRIE5-12

GRUNDFOS Hydro Multi-E booster sets are designed for the transfer and pressure boosting of clean water in waterworks, blocks of flats, hotels, industry, hospitals, schools, etc. GRUNDFOS Hydro Multi-E booster set consists of 2 to 4 CRIE pumps coupled in parallel and mounted on a common base frame provided with all the necessary fittings.

Hydro Multi-E is mounted on a common base frame made of stainless steel (DIN W.-Nr. 1.4301). On the suction side are fitted a suction manifold (DIN W.-Nr. 1.4401 or DIN W.-Nr. 1.4571) , a pressure switch mounted on a drainable valve and an isolating valve. On the discharge side of the pumps are fitted a non-return valve, an isolating valve, a pressure gauge, two pressure transmitters mounted on a drainable valve a diaphragm tank and a stainless steel discharge manifold (DIN W.-Nr. 1.4401 or DIN W.-Nr. 1.4571). The Hydro Multi-E is fitted with an on/off-switch for the supply voltage.

The Hydro Multi-E is designed for maintaining a constant pressure regardless of flow changes and fluctuation.

The internal PI-controller regulates the number of running pumps and the speed of the pumps according to the required flow.

The system can be operated directly on the panel of any of the pumps or via Grundfos GO (available as accessory)

Besides the system features:
2 Digital outputs 2 Digital inputs (one used for dry run protection) 2 Analogue inputs (one used for discharge pressure sensor) Multi-Master functionality 2 Limit functions Set-point influence function Pipe filling function High efficient PM motors

Available communication protocols:

  • LON​
  • Profibus​
  • Modbus​
  • SMS/GSM/GPRS​
  • GRM​
  • BACnet​
  • BACnet IP​
  • Modbus TCP​
  • PROFINET

When delivered, the GRUNDFOS Hydro Multi-E booster set is factory tested and ready for operation.

More Information
SKU 99133112
Manufacturer Grundfos
Manufacturers Warranty 2 Years
Weight 119.0 Kg
Dimensions 753mm (W) x 832mm (L) x 755mm (H)
Inlet Dimension R 2
Voltage 415V 3Ph 50Hz
Max Flow 20 m³/h
Max Head 120 m
Max Pressure 16 bar
Max Temperature 60°C
Material Stainless Steel
Manufactured In United Kingdom
