Grundfos JP4-54 Horizontal Tank Self Priming Booster Set 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
JP 4-54 PT-H BBVP
BE ADVISED - THIS PRODUCT IS DISPATCHED AS AN ASSEMBLY KIT FOR THE CUSTOMER TO BUILD UPON DELIVERY

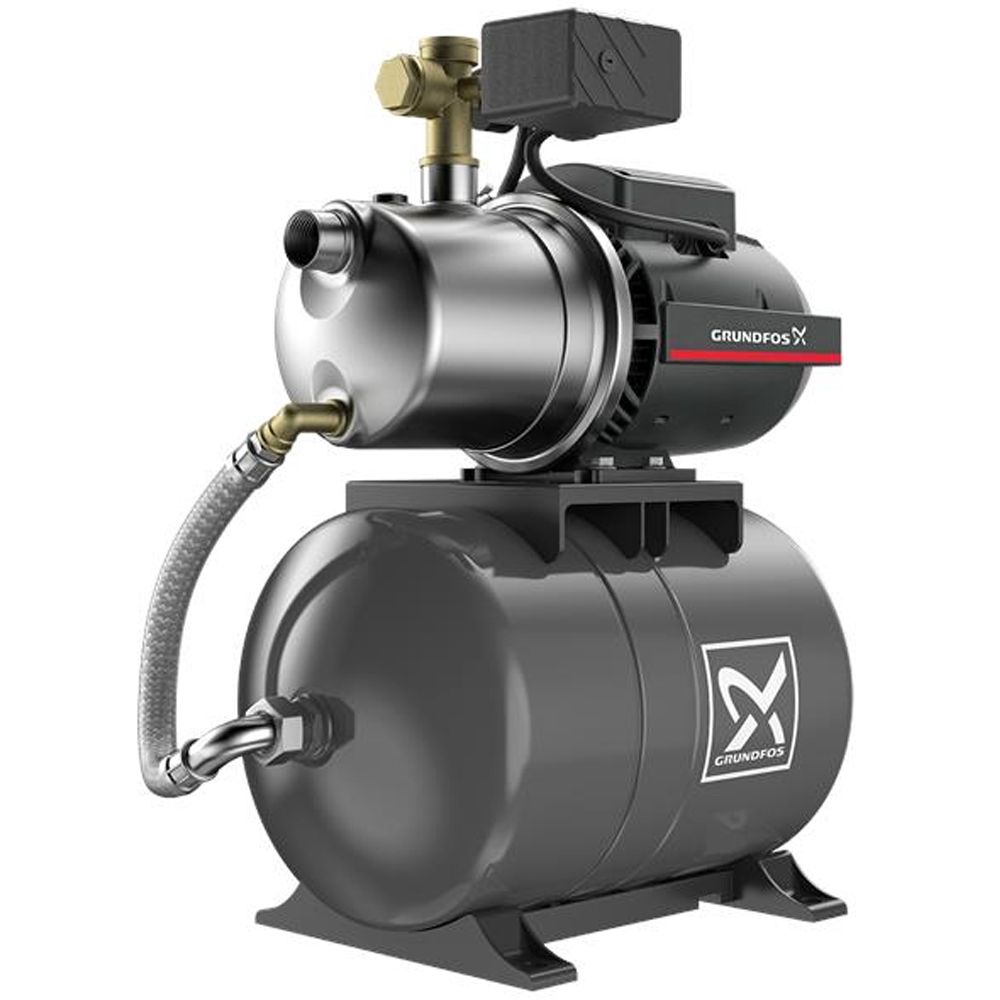

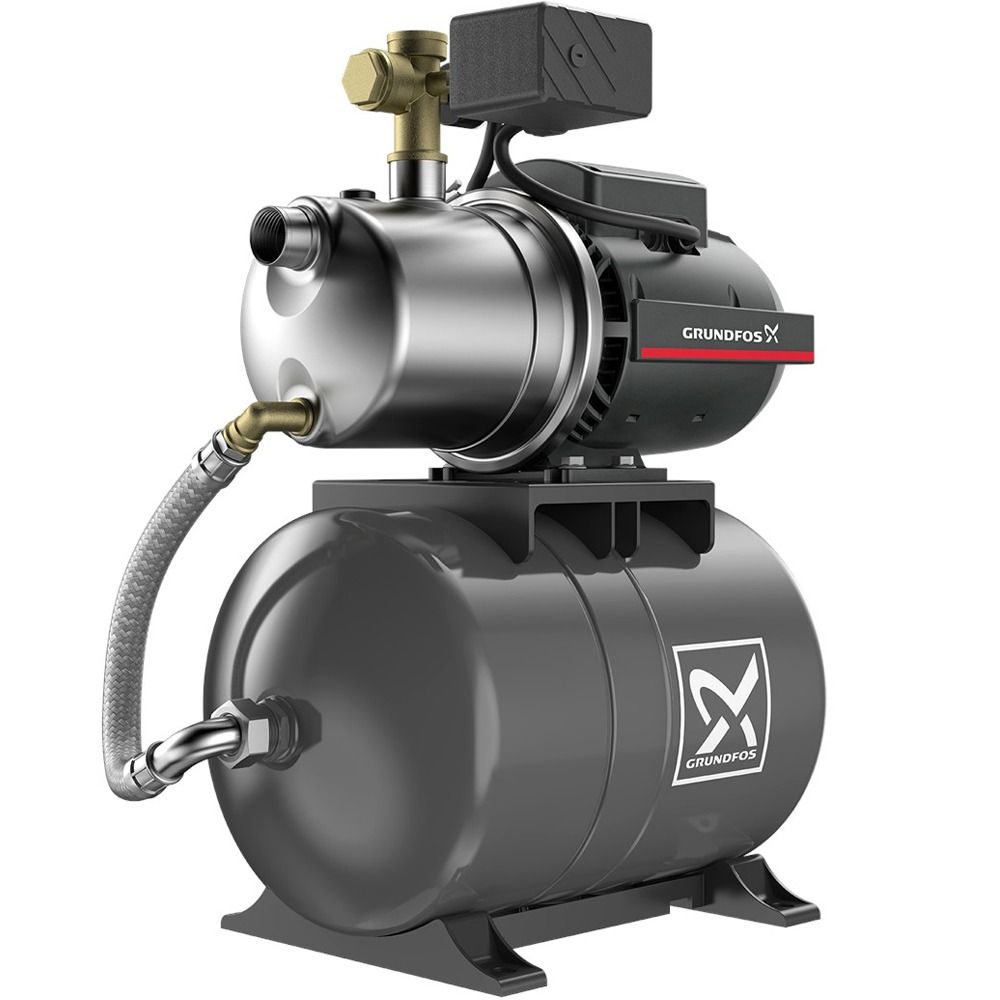

Grundfos JP 4-54 PT-H consist of a Grundfos JP Self Priming pump, a pressure switch, a pressure gauge and a GT-H 20-litre horizontal diaphragm pressure tank. The booster set features a dual outlet selection for easy installation and a pressure tank to reduce water hammer in the pipework.
The JP 4-54 PT-H provides the comfort of constant water pressure with automatic start and stop. This is controlled by the pressure switch and pressure tank combined ensuring optimal start/stop of the booster set according to demand. The pressure tank limits the number of start/stop routines, as water stored in the tank can be used without starting the pump in cases of low water consumption or leakage loss. The cut-in pressure is set to 2.2 bar.
The design is robust and built upon corrosion-free materials to ensure a long lifetime. This booster set ensures optimum self-priming properties, featuring a suction-lift up to 8 meters. The self-priming pump also ensures a stable operation as is it able to lift liquid from below the inlet level and can handle a mix of air and liquid until the pump reaches a fully-primed pumping condition.
The JP pump has built-in thermal protection, which immediately stops the pump if it overheats. The motor is air cooled and equipped with oversized, sealed, greased-for-life ball bearings to ensure silent operation and minimum service.
**Please note that these units are not provided with a Non-Return Valve. A Non-Return Valve Kit must be purchased and fitted in order for any warranty claims to be upheld. Any JP4 Booster Sets that are fitted with no non return valve will void the warranty.**

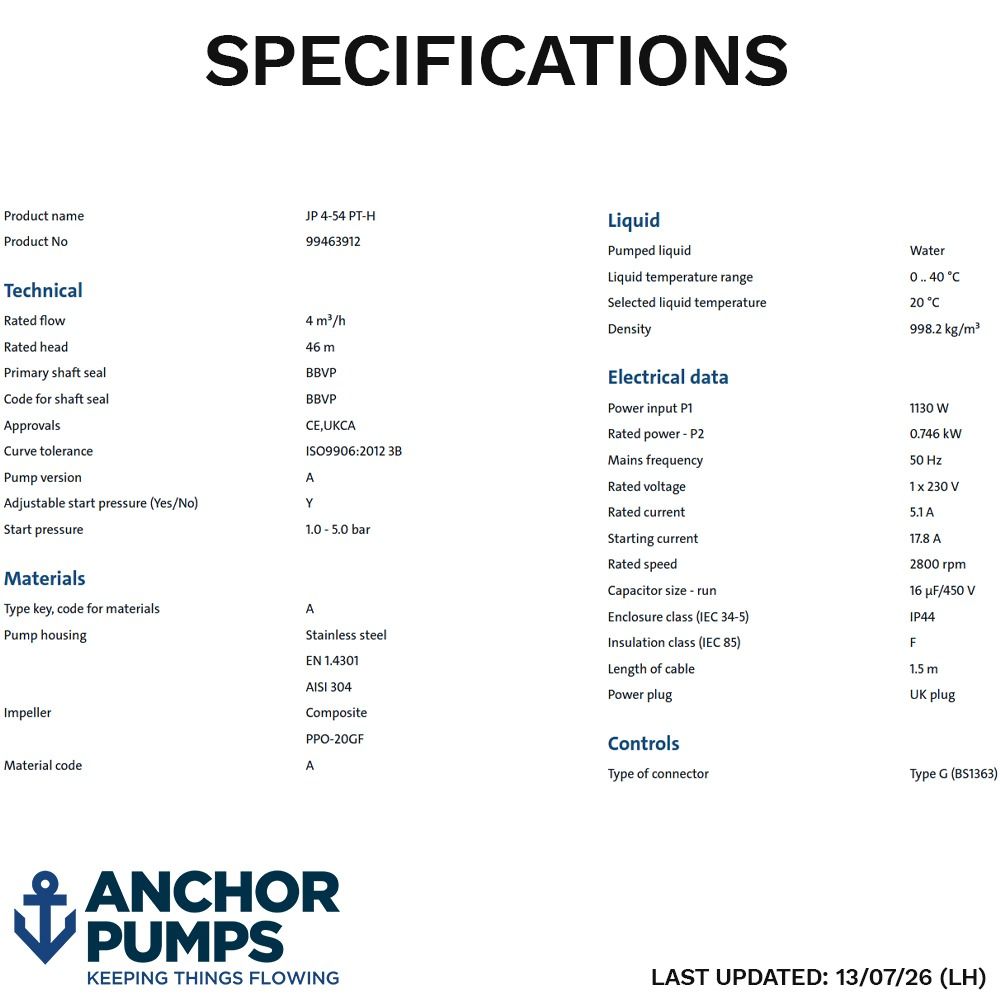

| SKU | 99463912 |
|---|---|
| Manufacturer | Grundfos |
| Manufacturers Warranty | 2 Years |
| Weight | 20.0 Kg |

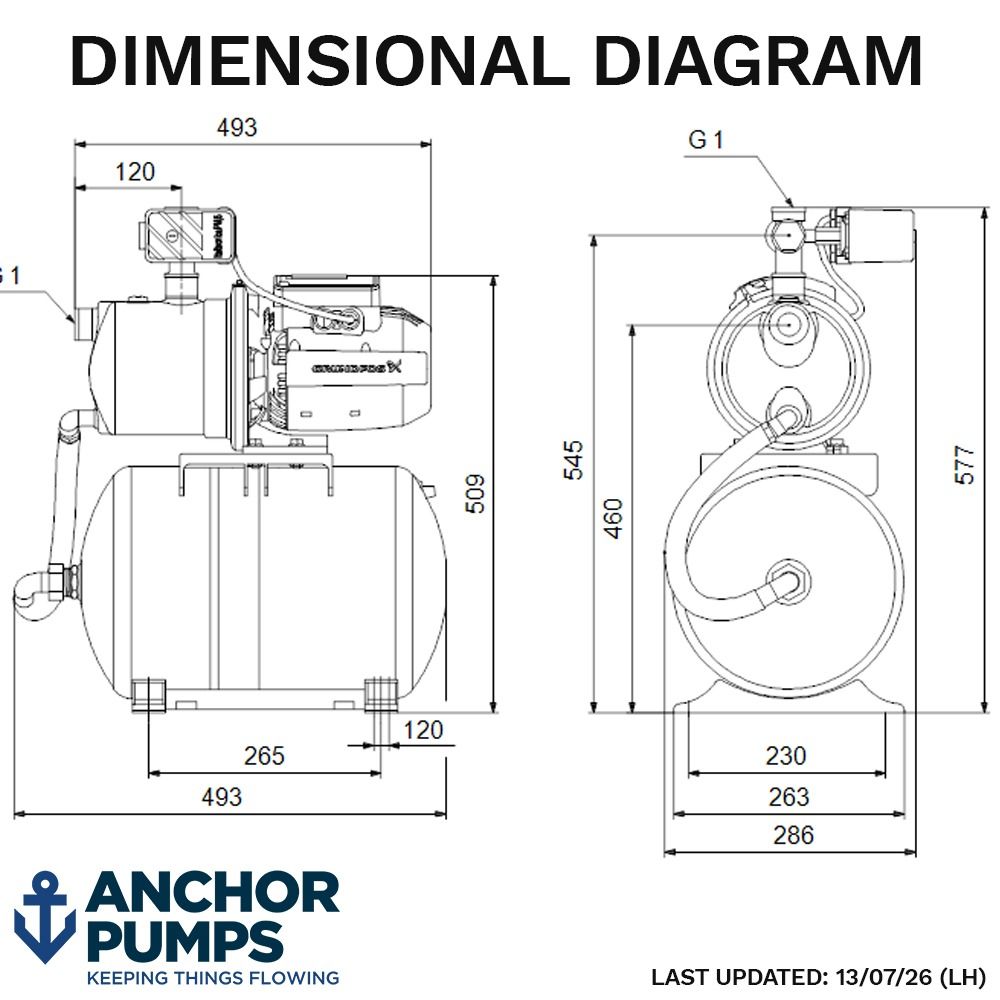

| Dimensions | (l)493 x (w)263mm x (h)509mm |
| Connection Type | 1 Inch BSP Female |
| Motor Size (kW/W) | 0.746 kW |
| Full Load Current (FLC) | 5.1A |
| Voltage | 240V 1Ph 50Hz |
| RPM | 2850 |
| Cable Length | 1.5m |
| Max Flow | 4 m3/hr |
| Max Head | 54 mtr |
| Max Temperature | 40°C |
| Material | Stainless Steel |
| Seal Type | Carbon, Resin Ceramic |
| Impeller Material | Composite |
