Grundfos JP4-54 PM1Self Priming Booster Set 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
JP 4-54 PM1 BBVP
BE ADVISED - THIS PRODUCT IS DISPATCHED AS AN ASSEMBLY KIT FOR THE CUSTOMER TO BUILD UPON DELIVERY

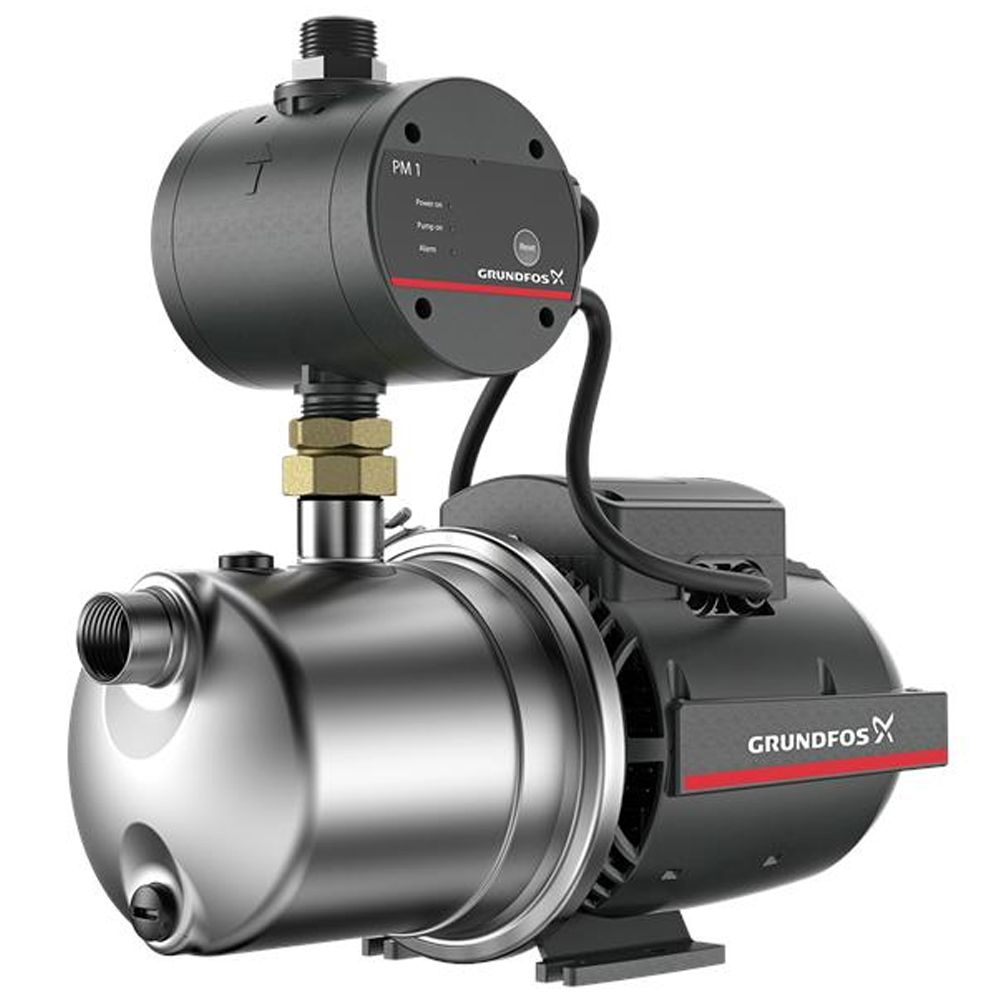

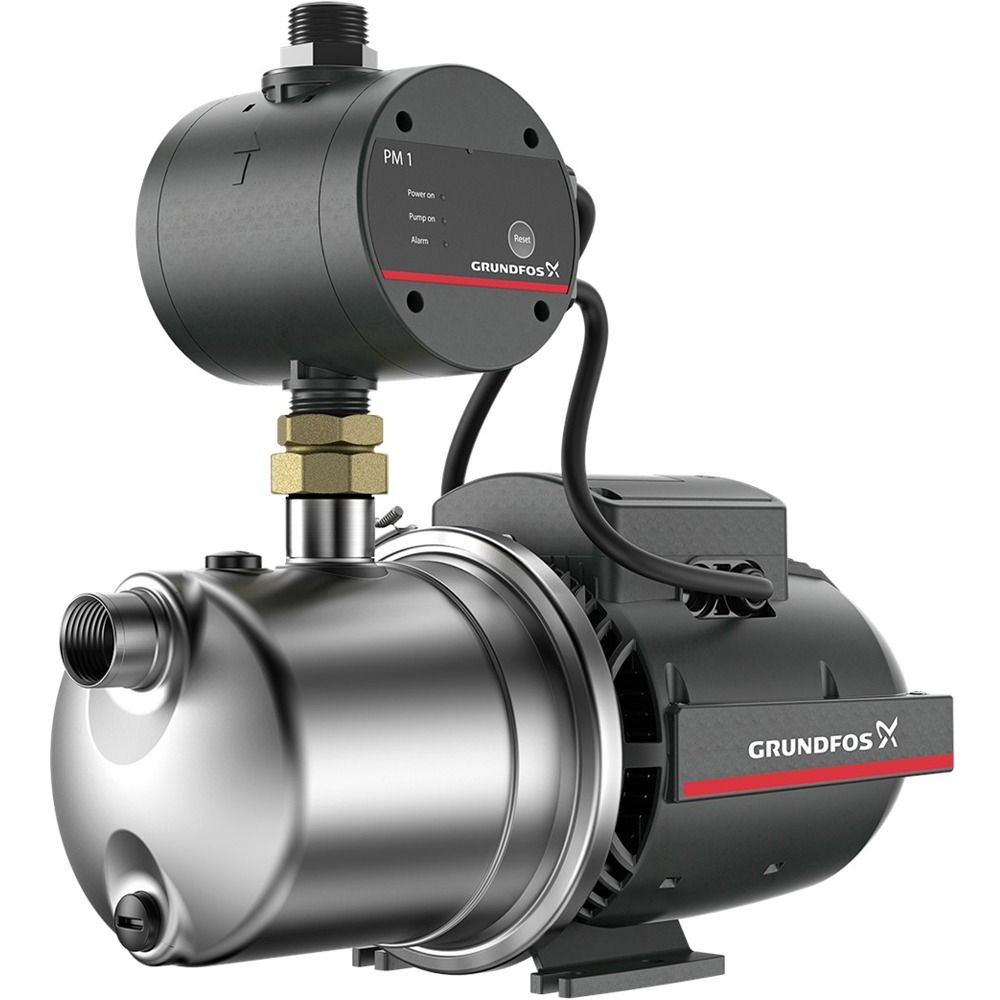

Grundfos JP 4-54 PM1 booster consists of a Grundfos JP Self Priming pump and a pressure manager. The JP 4-54 PM1 provides the comfort of constant water pressure with automatic start and stop matched to consumption by the intelligent pressure manager. The pressure manager starts the pump at 1.5 bar and the pump keeps running as long as there is flow.
The design is robust and built upon corrosion-free materials to ensure a long lifetime. This booster set ensures optimum self-priming properties, featuring a suction-lift up to 8 meters. The self-priming pump also ensures a stable operation as is it able to lift liquid from below the inlet level and can handle a mix of air and liquid until the pump reaches a fully-primed pumping condition.
The JP 4-54 PM1 incorporates dry running protection that automatically stops the pump in case of dry running. This means lower risk of pump damage and lower maintenance costs. The anti-cycling function will stop the pump in time in case of a minor leakage in the system, or if a tap has not been closed completely. When cycling occurs, the pump stops, and an alarm will be indicated. A non-return valve for backflow prevention is already integrated.
The JP pump has built-in thermal protection, which immediately stops the pump if it overheats. The motor is air cooled and equipped with oversized, sealed, greased-for-life ball bearings to ensure silent operation and minimum service.

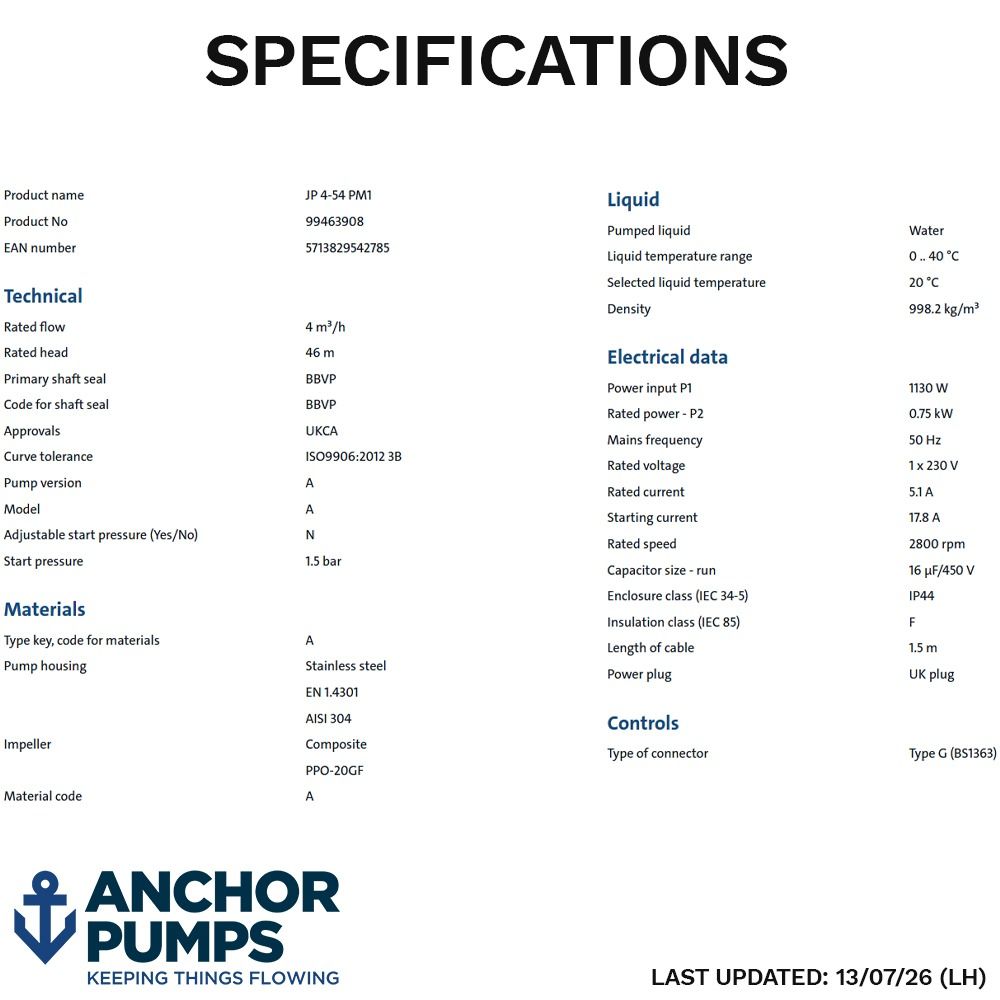

| SKU | 99463908 |
|---|---|
| Manufacturer | Grundfos |
| Manufacturers Warranty | 2 Years |
| Weight | 14.0 Kg |

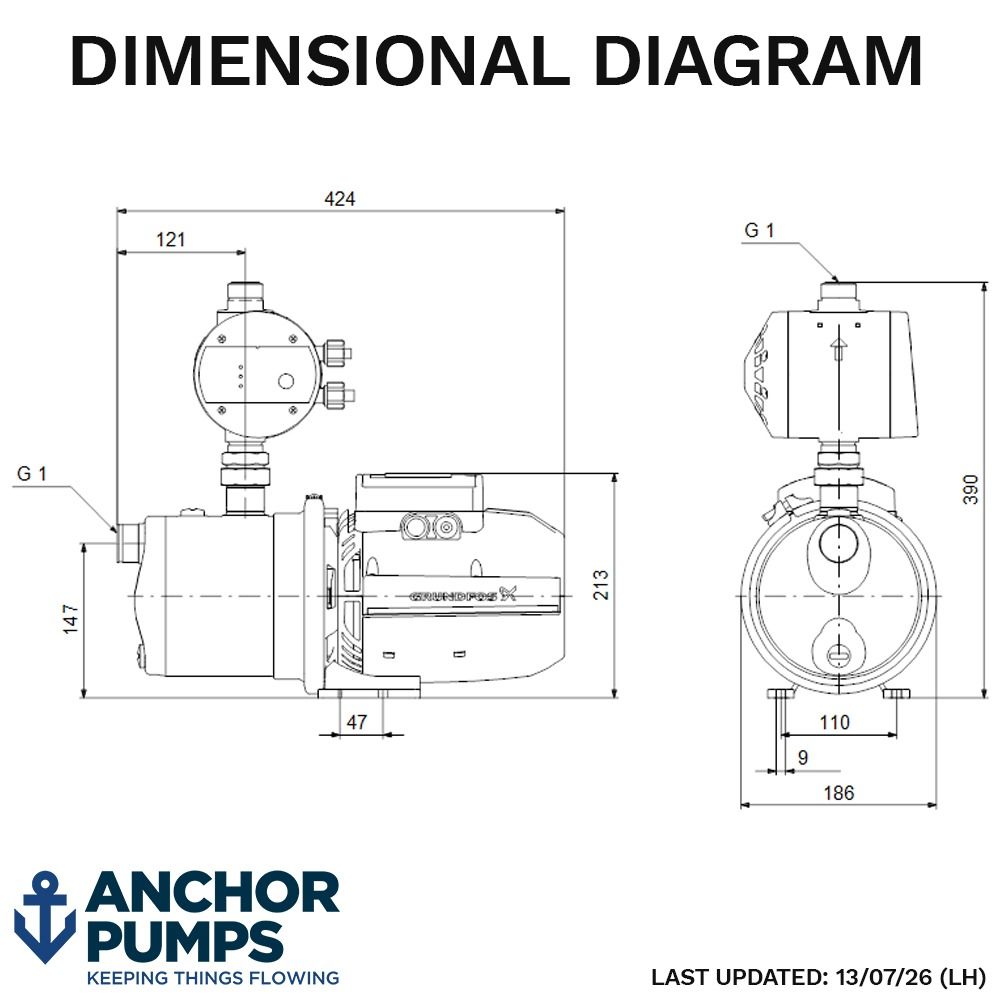

| Dimensions | 405mm(l) x 186mm(w) x 200mm(h) |
| Motor Size (kW/W) | 0.746 kW |
| Full Load Current (FLC) | 5.1A |
| Voltage | 240V 1Ph 50Hz |
| RPM | 2850 |
| Cable Length | 1.5m |
| Max Flow | 4 m3/hr |
| Max Head | 54 mtr |
| Max Temperature | 40°C |
| Material | Stainless Steel |
| Seal Type | Carbon, Resin Ceramic |
| Impeller Material | Composite |
