Grundfos MAGNA1 D 40-120F (250) 'A' Rated/EuP Ready Variable Speed Twin Head Circulator 240V (99221310)

Name: Grundfos MAGNA1 D 40-120F (250) 'A' Rated/EuP Ready Variable Speed Twin Head Circulator 240V (99221310)
Brand: Grundfos
SKU: 97924383
Price: 2635 GBP
Availability: InStock

SKU

97924383

MRRP £4,469.00 + VAT Our price £2,635.00 (+ VAT) Incl. VAT: £3162.00

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

The Grundfos MAGNA1 D40-120F (250)'A' Rated/EuP Ready variable speed twin head circulator with easy selection of pump setting, no maintenance requirements and extremely low life cycle cost. The MAGNA1 circulator pumps are designed for circulating liquids in heating systems with variable flows and also for domestic hot-water systems.

Applications include:

Heating systems
Main pump
Mixing loops
Heating and Air-conditioning

The pump is also suitable for systems with hot-water priority as an external signal can immediately force the pump to operate according to the max. curve, for example in solar-heating systems.

Benefits:

Safe selection
Simple installation
Low energy consumption (MAGNA1 pumps comply with the EuP requirements)
Nine light fields for indication of pump setting.

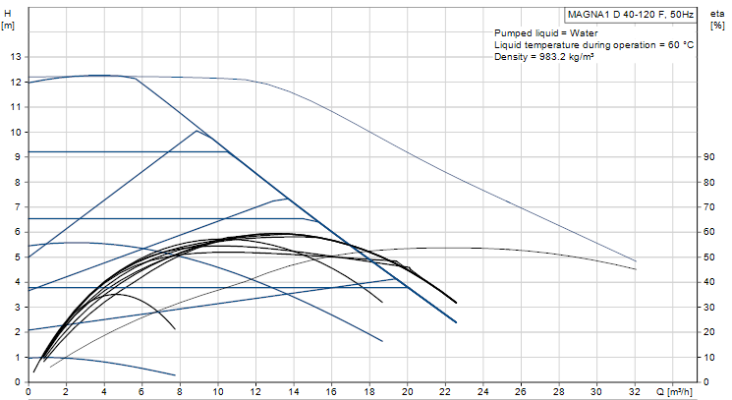

Three proportional-pressure curves, three constant-pressure curves and three fixed-speed curves are available
Low noise level
Maintenance free and long life

Liquid:

Pumped liquid: Water
Liquid temperature range: -10 .. 110 °C

MAGNA1 D40-40 to 40-100 have 220mm port-to-port dimensions, the D40-120 to 40-180 have 250mm port-to-port dimensions and all have 40mm flanged connections.

More Information
SKU	97924383
Manufacturer	Grundfos
Manufacturers Warranty	2 Years
GTIN	5710626494590
Weight	35.3 Kg

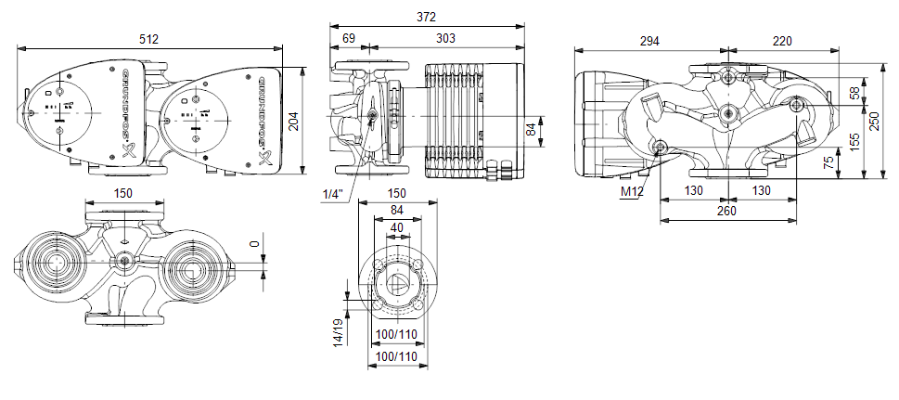

Dimensions	250mm (h) x 514mm (w) x 372mm (d)
Motor Size (kW/W)	17.03-476W
Full Load Current (FLC)	0.19-2.1A
Voltage	240V 1Ph 50Hz
Max Flow	32m3/h
Max Head	12m
Material	Cast Iron
