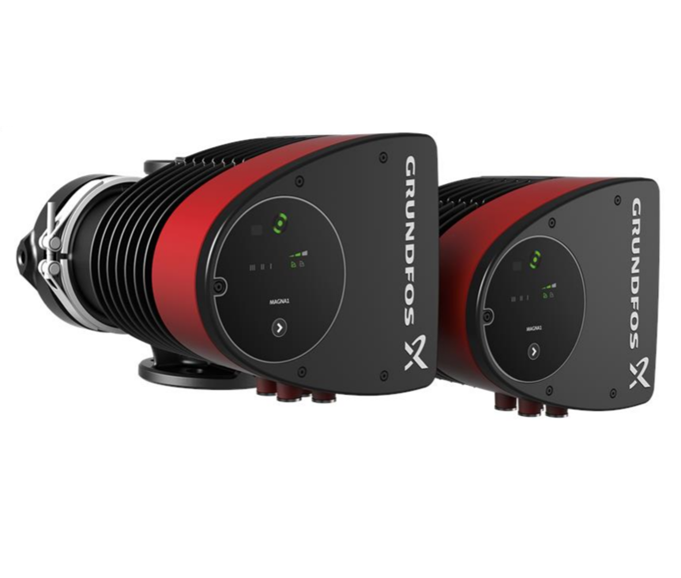

Grundfos MAGNA1 D 40-40F (220) 'A' Rated/EuP Ready Variable Speed Twin Head Circulator 240V

Name: Grundfos MAGNA1 D 40-40F (220) 'A' Rated/EuP Ready Variable Speed Twin Head Circulator 240V
Brand: Grundfos
SKU: 99221293
Price: 1351 GBP
Availability: InStock

SKU

99221293

MRRP £2,290.90 + VAT Our price £1,351.00 (+ VAT) Incl. VAT: £1621.20

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Choose Gasket Set Option

Choose Flange Set Option

Choose Spacer Kit Option

Choose Bellow Set Option

Installation Bundle

Qty

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Grundfos MAGNA1 D 40-40F (220) 'A' Rated/EuP Ready Variable Speed Twin Head Circulator 240V - 99221293

The new MAGNA1 is the simple option for a job well done. It is the perfect choice when replacing older circulators and due to its compliance with the EuP 2015 regulations, substantial savings on electricity is a reality. The ideal choice for basic performance needs in applications where basic system control and monitoring is desired.

Monitoring via the fault relay, ensuring peace of mind
Digital start/stop input available for remote pump control
Continuous operation and reduced downtime with the wireless twin pump function (available on twin-head pumps)
High energy efficiency resulting in substantial savings on electricity
Easy setup and operation via the simple user interface
No maintenance due to the canned-rotor type design.

MAGNA1 is the simple and efficient choice for most applications including

Heating
- Main pump
- Mixing loops
- Heating surfaces
Cooling
- Air conditioning surfaces
- Ground source heat pump systems
- Smaller chiller applications

More Information
SKU	99221293
Manufacturer	Grundfos
Manufacturers Warranty	2 Years
GTIN	5712608942662
Weight	20.0 Kg

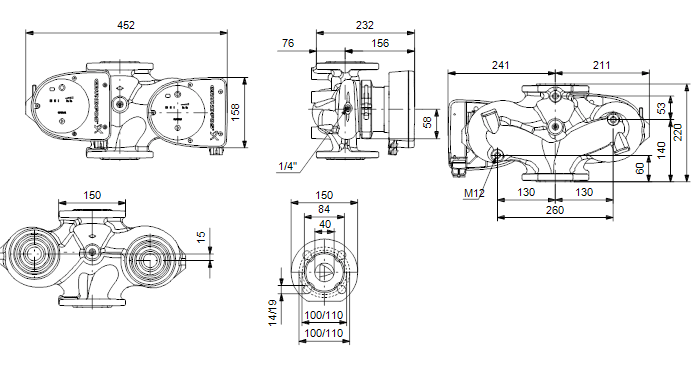

Dimensions	220mm (h) x 452mm (w) x 232mm (d)
Connection Type	40mm Flanged
Motor Size (kW/W)	12-90W
Full Load Current (FLC)	0.11-0.72A
Voltage	240V 1Ph 50Hz
Max Flow	17.5m3/h
Max Head	4m
Material	Cast Iron
Old Sku	97924379
