Grundfos MTR 1S 26/26 A W A HUUV 1.1kW Stainless Steel Vertical Immersible Pump 415v

SKU
98511197
MRRP £1,805.00 + VAT Our price £1,264.00 (+ VAT) Incl. VAT: £1,516.80

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
09
Hours
00
Mins
10
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

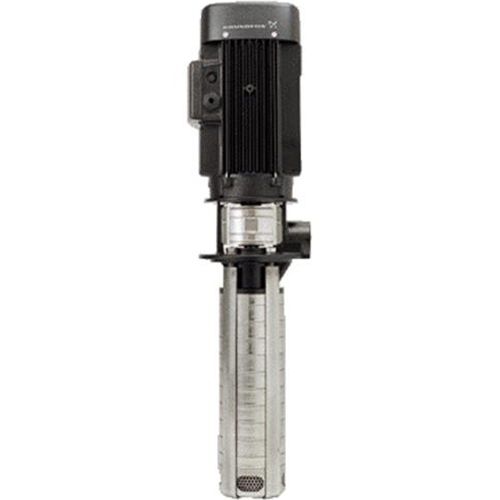

Grundfos MTR 1S 26/26 A W A HUUV 1.1kW Stainless Steel Vertical Immersible Pump 415v

Multistage, immersible, self-priming, centrifugal pump for vertical installation in tanks etc. The pump head and base are in cast iron – all other wetted parts are in stainless steel. The pump has the following characteristics:

  • Dimensions according to DIN 5440.
  • Impellers, intermediate chambers and spline shaft are made of stainless steel.
  • Mechanical shaft seal according to EN 12756.
  • Power transmission via sintered metal split coupling.

A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

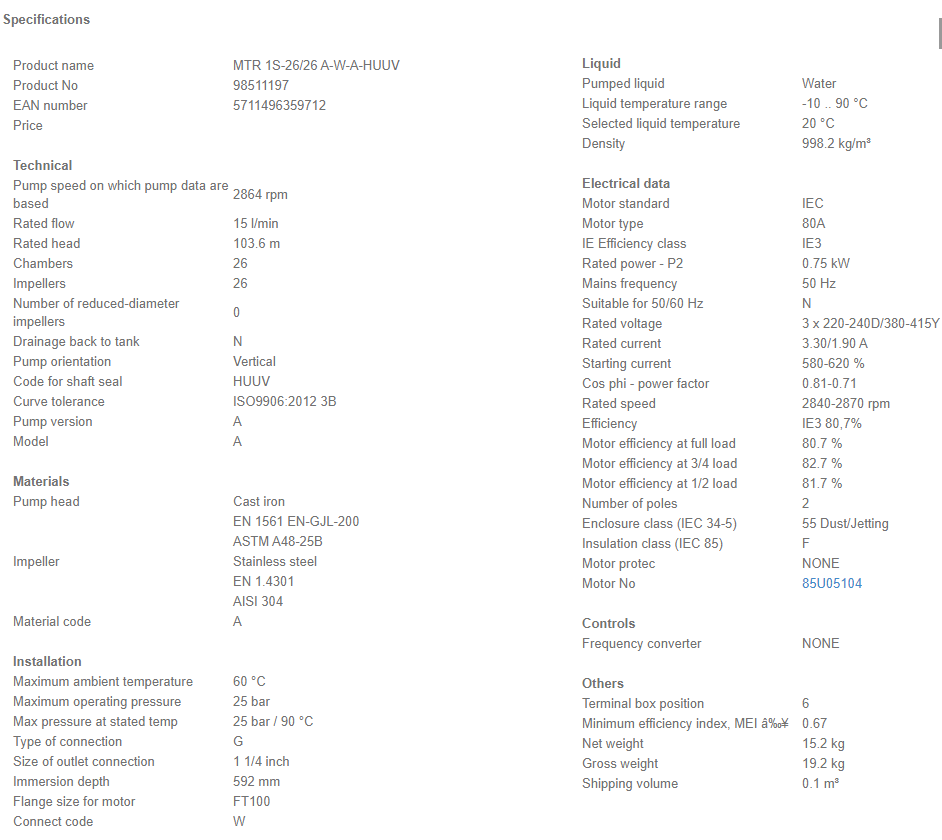

More Information
SKU 98511197
GTIN 5711496359712
Weight 19.2 Kg

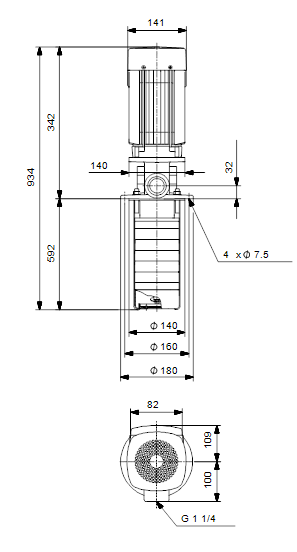

Dimensions 934mm (h) x 180mm (w) x 82mm (d)
Manufacturer Grundfos
Manufacturers Warranty 2 Years
Material Cast Iron
Impeller Material Stainless Steel
Voltage 415V 3Ph 50Hz
Max Flow 18.10l/min
Max Head 149m
Full Load Current (FLC) 1.90 A
Motor Size (kW/W) 0.75 kW
Immersion Depth 592mm
