Grundfos MTR 8 16/16 A W A HUUV 5.5kW Stainless Steel Vertical Immersible Pump 415v

SKU
98825712
MRRP £4,009.00 + VAT Our price £2,807.00 (+ VAT) Incl. VAT: £3368.40

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

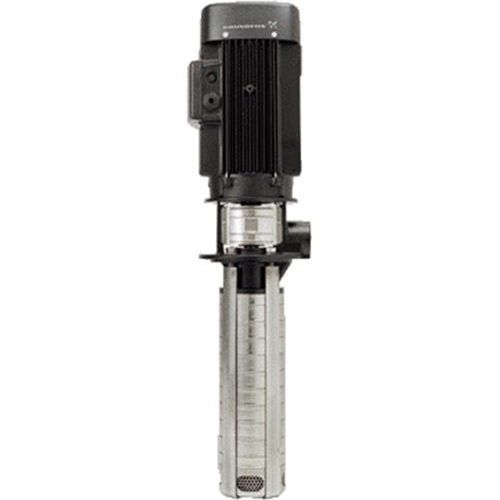

Grundfos MTR 8 16/16 A W A HUUV 5.5kW Stainless Steel Vertical Immersible Pump 415v

Multistage, immersible, self-priming, centrifugal pump for vertical installation in tanks etc. The pump head and base are in cast iron – all other wetted parts are in stainless steel. The pump has the following characteristics:

  • Dimensions according to DIN 5440.
  • Impellers, intermediate chambers and spline shaft are made of stainless steel.
  • Mechanical shaft seal according to EN 12756.
  • Power transmission via sintered metal split coupling.

A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

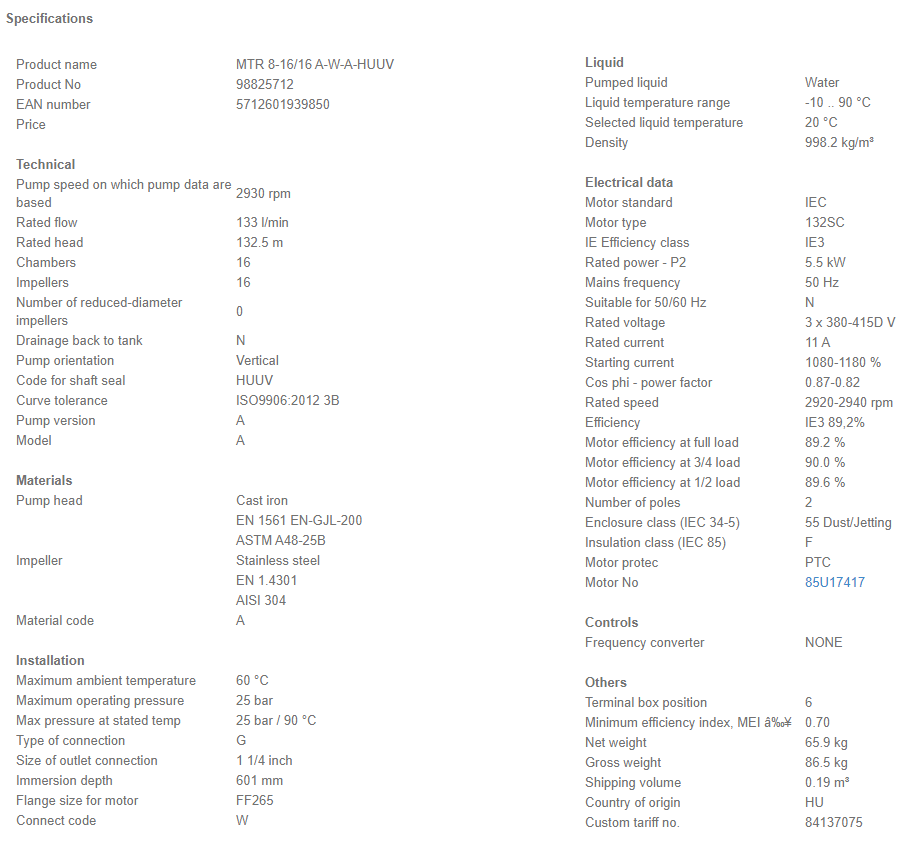

More Information
SKU 98825712
GTIN 5712601939850
Weight 86.5 Kg

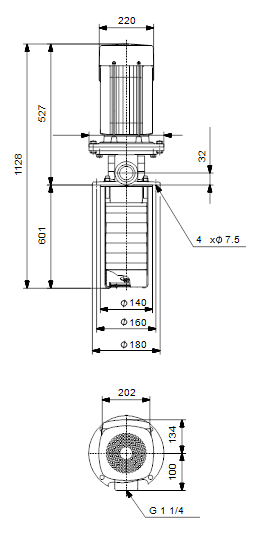

Dimensions 1128mm (h) x 180mm (w) x 234mm (d)
Manufacturer Grundfos
Manufacturers Warranty 2 Years
Material Cast Iron
Impeller Material Stainless Steel
Voltage 415V 3Ph 50Hz
Max Flow 203.1l/min
Max Head 160m
Full Load Current (FLC) 11 A
Motor Size (kW/W) 5.5 kW
Immersion Depth 601mm
