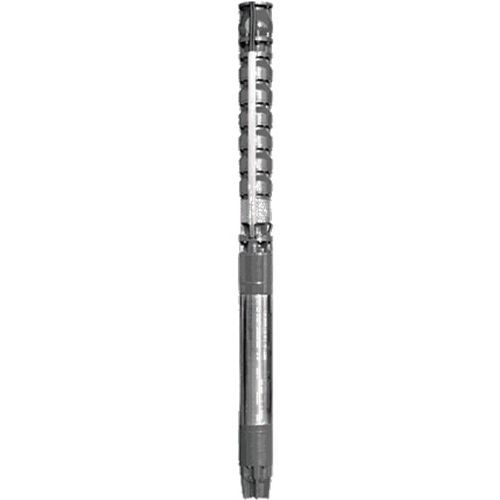

Grundfos SP360-2F-G 8" Submersible Borehole Pump 92kW 415V
Multi-stage submersible pump for raw water supply, groundwater lowering, pressure boosting and various industrial jobs. The pump is suitable for pumping clean, thin, non-aggressive liquids without solid particles or fibres.
The pump is made entirely of Cast iron DIN W.-Nr. EN-JL1040 and suitable for horizontal installation.
SP pumps provide low long-term costs and high operating reliability regardless of the application. The pump is fitted with a built-in non-return valve.
The motor is a 3-phase motor with sand shield, liquid-lubricated bearings and pressure equalizing diaphragm.
Please see related items for drop cable options. On purchase of the pump and cable, our fitters can supply a waterproof joint kit free of charge and attach the cable to your new SP pump. The pump will then be delivered ready to use and validate the warranty.

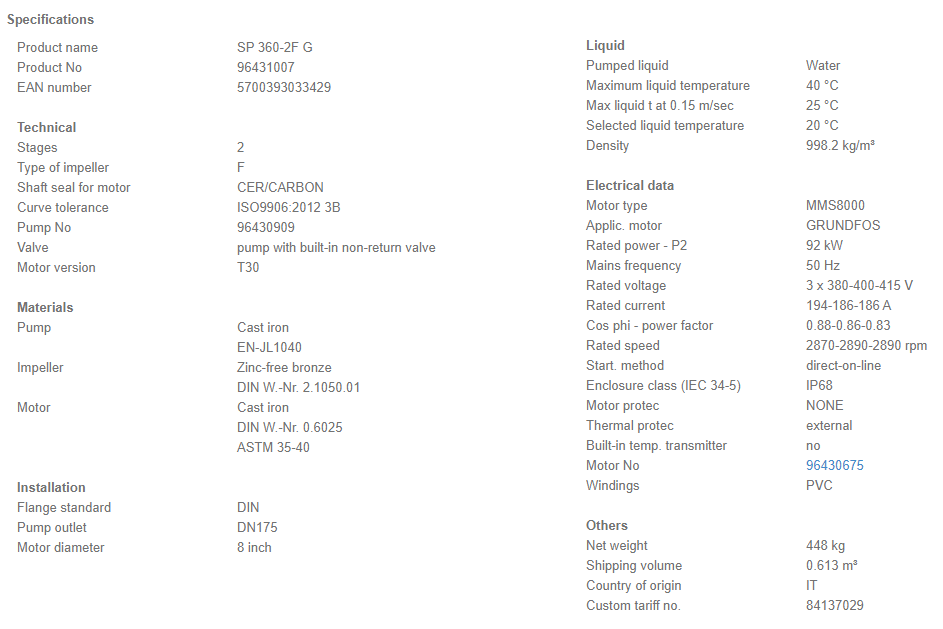

| SKU | 96431007 |
|---|---|
| Manufacturer | Grundfos |
| Manufacturers Warranty | 2 Years |
| GTIN | 5700393033429 |
| Weight | 448.0 Kg |

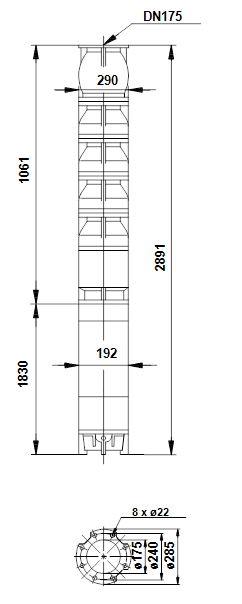

| Dimensions | 2891mm (h) x 290mm (d) |
| Motor Size (kW/W) | 92 kW |
| Full Load Current (FLC) | 194-186-186 A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2900rpm |

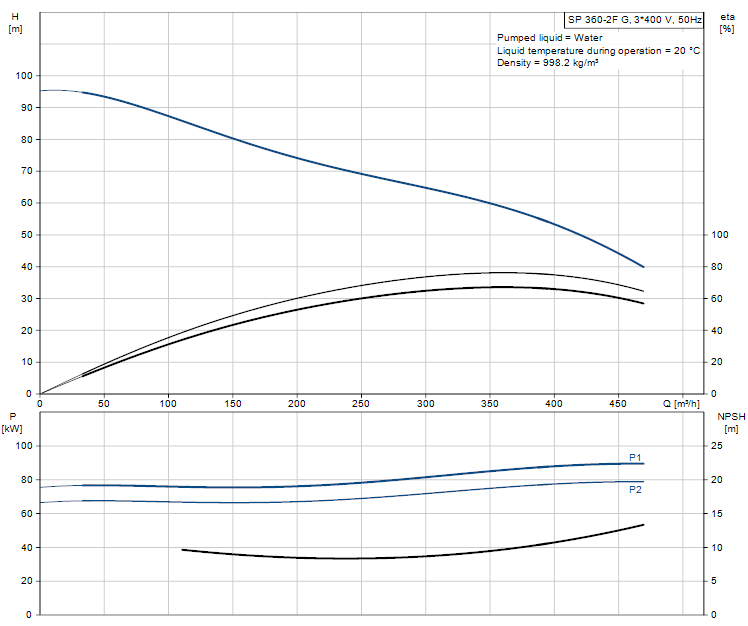

| Max Flow | 470m3/hr |
| Max Head | 95m |
| Max Temperature | 40 degrees C |
| Material | Cast Iron |
| Impeller Material | Zinc-free Bronze |
