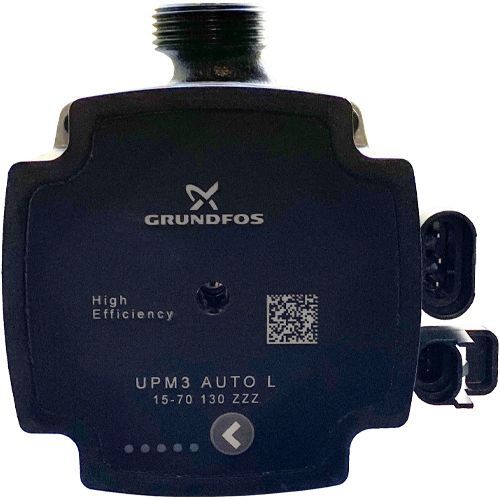

Grundfos UPM3 Auto L 15-70 130mm ZZZ High Efficiency Pump 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
By combining external control through signal entry with internal self-control, the UPM3 HYBRID covers all your circulator needs in one product, giving you access to a full range of settings. It is available in a 7 or 5 m version.
| LIQUID: | ||
| Pumped liquid: | Water | |
| Liquid temperature range: | 2 .. 110 °C | |
| Selected liquid temperature: | 60 °C | |
| Density: | 983.2 kg/m³ | |
| TECHNICAL: | ||
| TF class: | 110 | |
| Approvals: | CE,VDE | |
| MATERIALS: | ||
| Pump housing: | Cast iron | |
| Impeller: | PES 30% GF | |
| INSTALLATION: | ||
| Maximum ambient temperature: | 70 °C | |
| Maximum operating pressure: | 10 bar | |
| Port-to-port length: |
130 mm |
|
| Connection Size: 1" | ||
| ELECTRICAL DATA: | ||
| Power input - P1: | 5 .. 52 W | |
| Mains frequency: | 50 Hz | |
| Rated voltage: | 1 x 230 V | |
| Maximum current consumption: | 0.07 .. 0.52 A | |
| Enclosure class (IEC 34-5): | IP44 | |
| OTHERS: | ||
| Energy (EEI): | 0.20 | |
| Net weight: | 1.76 kg | |
| Gross weight: | 2.12 kg | |
| SKU | 99385683 |
|---|---|
| Manufacturer | Grundfos |
| Manufacturers Warranty | 2 Years |
| Weight | 4.0 Kg |
| Connection Type | 1 Inch BSP Male |
| Voltage | 240V 1Ph 50Hz |
| Max Head | 7m |
| Material | Cast Iron |
