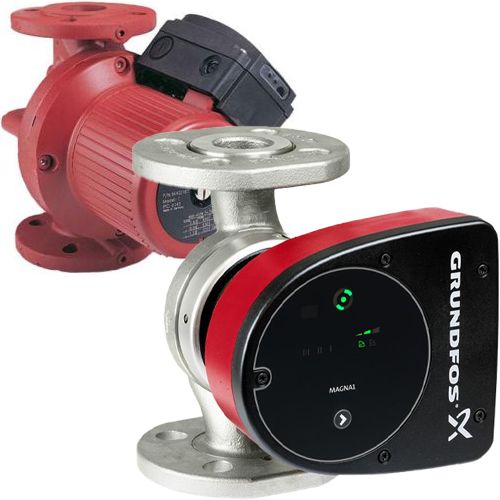

Grundfos UPS 50-30/4FB (280) Single Head Bronze Commercial Circulator 240V replaced with MAGNA1 50-60 FN (240) + Spacer Kit

SKU
96402010/99221358
MRRP £3,620.10 + VAT Our price £2,141.00 (+ VAT) Incl. VAT: £2,569.20

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Grundfos UPS 50-30/4FB (280) Single Head Bronze Commercial Circulator 240V replaced with MAGNA1 50-60 FN (240) + Spacer Kit - 96402010/99221358

Due to new EuP regulations on energy efficiency, brought into force in January 2013, the UPS 50-30/4FN (280) is no longer manufactured and has been replaced by the new "A" rated energy efficient MAGNA1 50-60FN (240) variable speed hot water circulator.  The new MAGNA1 requires a 50mm pump spacer kit which will be provided with the pump.



MAGNA1 50-60 F N
The new MAGNA1 is the simple option for a job well done. It is the perfect choice when replacing older circulators and due to its compliance with the EuP 2015 regulations, substantial savings on electricity is a reality. The ideal choice for basic performance needs in applications where basic system control and monitoring is desired.

  • Monitoring via the fault relay, ensuring peace of mind
  • Digital start/stop input available for remote pump control
  • Continuous operation and reduced downtime with the wireless twin pump function (available on twin-head pumps)
  • High energy efficiency resulting in substantial savings on electricity
  • Easy setup and operation via the simple user interface
  • No maintenance due to the canned-rotor type design.

MAGNA1 is the simple and efficient choice for most applications including

  • Heating
    • Main pump
    • Mixing loops
    • Heating surfaces
  • Cooling
    • Air conditioning surfaces
    • Ground source heat pump systems
    • Smaller chiller applications
More Information
SKU 96402010/99221358
Manufacturer Grundfos
Manufacturers Warranty 2 Years
Weight 20.9 Kg
Dimensions 240mm (h) x 164mm (w) x 374mm (d)
Motor Size (kW/W) 20-139W
Full Load Current (FLC) 0.22-0.67A
Voltage 240V 1Ph 50Hz
Max Flow 23m3/hr
Max Head 4m
Material Stainless Steel
Old Sku 96402010
