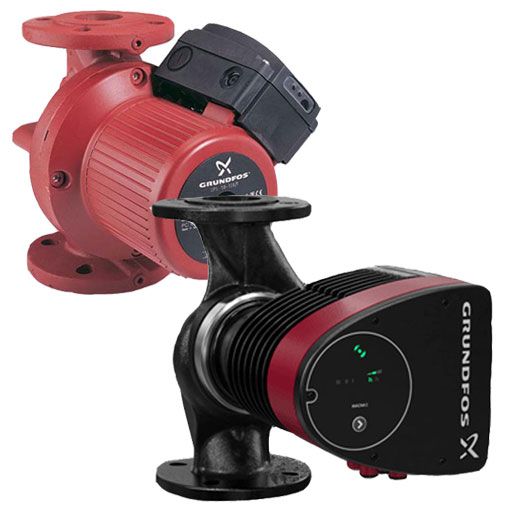

Grundfos UPS 50-60/2 (280) Single Head Commercial Circulator 240V replaced with MAGNA1 50-60F (240) with spacer kit

SKU
96402053 / 99221333
MRRP £2,311.50 + VAT Our price £1,358.00 (+ VAT) Incl. VAT: £1,629.60

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Grundfos UPS 50-60/2 (280) Single Head Commercial Circulator 240V replaced with MAGNA1 50-60F (240) with spacer kit - 96402053 / 99221333

Due to new European Legislation brought into force in January 2013, the UPS 50-60/2 (280) is no longer manufactured.  You will now receive the new EUP ready Energy Efficient MAGNA1 50-60F (240)  with spacer kit at no extra cost.

Please note, this pump requires alteration to the pipework and have included a spacer kit free of charge.

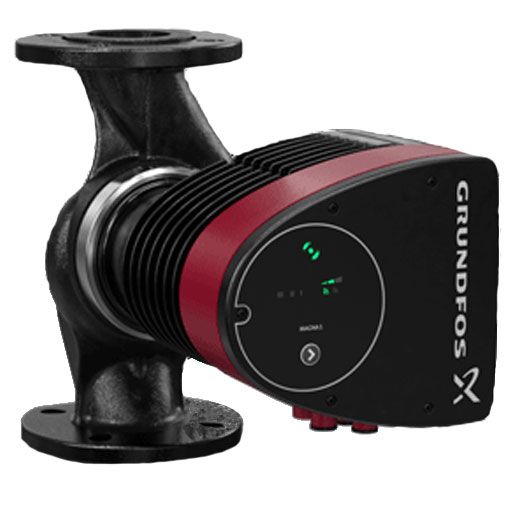

The Grundfos MAGNA1 50-60F (240) 'A' Rated/EuP Ready variable speed circulator pumps are designed for circulating liquids in heating systems with variable flows and also for domestic hot-water systems with easy selection of pump setting, no maintenance requirements and extremely low life cycle cost.

Applications include:

  • Heating systems
  • Main pump
  • Mixing loops
  • Heating and Air-conditioning

The pump is also suitable for systems with hot-water priority as an external signal can immediately force the pump to operate according to the max. curve, for  example in solar-heating systems.

Benefits:

  • Safe selection
  • Simple installation
  • Low energy consumption (MAGNA1 pumps comply with the EuP requirements)
  • Nine light fields for indication of pump setting.
  • Three proportional-pressure curves, three constant-pressure curves and three fixed-speed curves are available
  • Low noise level
  • Maintenance free and long life

Liquid:

  • Pumped liquid: Water
  • Liquid temperature range: -10 .. 110 °C

MAGNA1 50-60F has 240mm port-to-port dimensions and 50mm flanged connections.

More Information
SKU 96402053 / 99221333
Manufacturer Grundfos
Manufacturers Warranty 2 Years
Weight 19.8 Kg
Dimensions 240mm (h) x 254mm (w) x 375mm (d)
Motor Size (kW/W) 20.91-252W
Full Load Current (FLC) 0.22-1.15A
Voltage 240V 1Ph 50Hz
Max Flow 25m3/hr
Max Head 6m
Material Cast Iron
Old Sku 96402053
