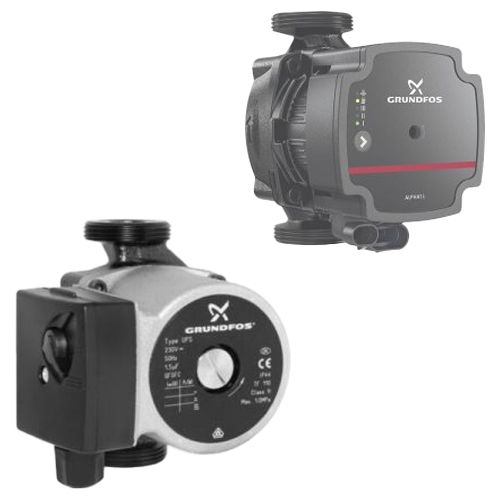

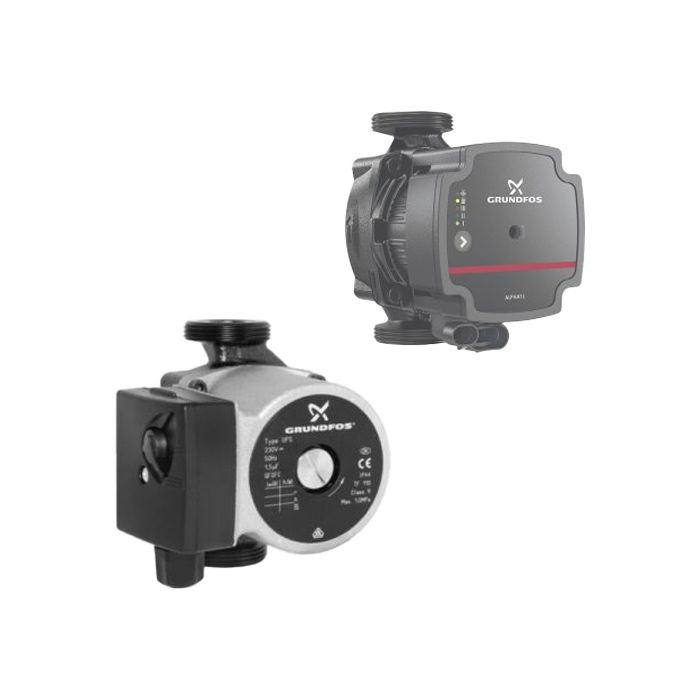

Grundfos UPS2 25-40/60 (130) Domestic Heating Circulator Pump 240v replaced with Alpha1L 25-65 (130) 99165123
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
This pump is now obsolete and will be replaced with Alpha1L 25-65 (130) if ordered.
Please see part number 99165123 for further information
The following text is for information only on the UPS2
The new Grundfos UPS2 25-40/60 (130) is a high-efficiency circulator pump with permanent-magnet motor (ECM technology) and continuously variable speed control for circulation of clean heating water.
The UPS2 is the ideal replacement for UPS 25-40 (130) and UPS 25-60 (130)pumps in domestic heating systems, it comes complete with modern motor technology and electronic control which enables it to exceed new EuP/ErP standards. It is also available as a complete pump or as a pump head only.
Features and benefits
- Three Pumps in One - The UPS2 can be set to meet the requirements of a UPS25 model designed for either 4m or 6m performance.
- Control Box - The control box of the UPS2 can be mounted on the left, right or on the top.
- Cable Gland - The cable gland of the UPS2 is the same design as that used on both the UPS15-50 and UPS15-60 circulators. This minimises time taken on changeover.
- Pump Head - Where the existing pump base is in good condition a pump head option can be chosen in order to minimise installation time by replacing the pump head only.
- Dimensions - The UPS2 is almost identical in overall dimensions to the UPS15-50/UPS15-60 models.
- Vent screw - The UPS2 is fitted with a screw which allows manual venting to remove air from the heating system.
| SKU | 98393743 |
|---|---|
| Manufacturer | Grundfos |
| Manufacturers Warranty | 2 Years |
| Weight | 4.0 Kg |

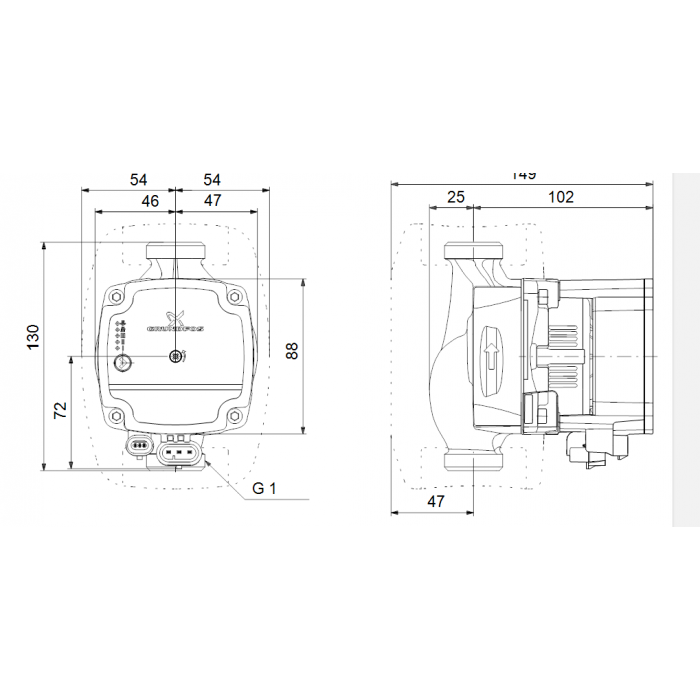

| Dimensions | 130mm l x 131mm h x 126mm w |
| Inlet Dimension | 11/2" bspm |
| Discharge Dimension | 11/2" bspm |
| Motor Size (kW/W) | 48 W Max |
| Full Load Current (FLC) | 0.42 |
| Voltage | 240V 1Ph 50Hz |
| Cable Length | 1.5m |
| Max Flow | 3.0 m3/hr |
| Max Head | 6 mtrs |
| Max Temperature | 95 degC |
| Material | Cast Iron |
| Impeller Material | PES |
