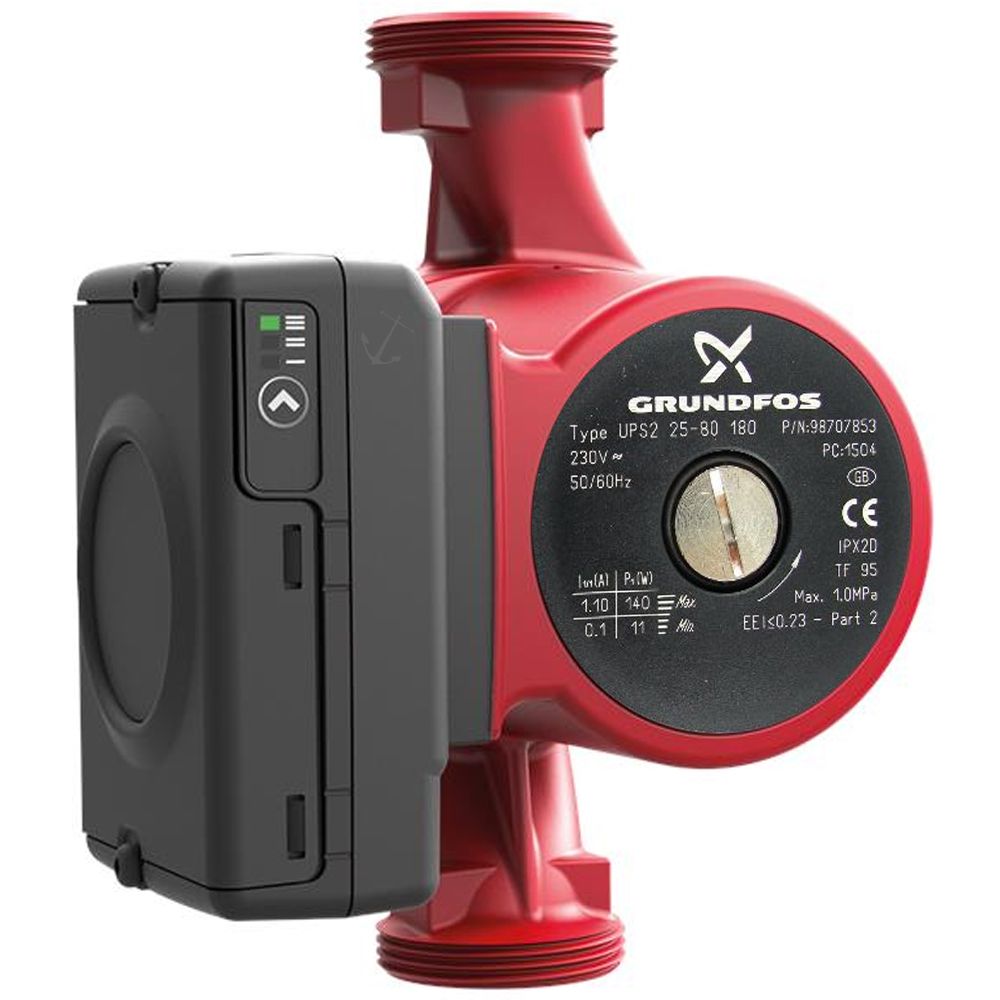

Grundfos UPS2 25-80 (180) A+ Eff. Domestic, Light Commercial Heating Circulator 240V (replaces UPS 25-55 and UPS 25-80)
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Grundfos UPS2 25-80 (180) A+ Eff. Domestic, Light Commercial Heating Circulator 240V (replaces UPS 25-55 and UPS 25-80) - 98707848
This pump directly replaces the UPS 25-55 and UPS 25-80 directly. No alteration to pipework or fittings is necessary.
The new Grundfos UPS2 25-80 (180) is a high-efficiency circulator pump with permanent-magnet motor (ECM technology) and continuously variable speed control for circulation of clean heating water.
The UPS2 25-80 (180) is the ideal replacement for the UPS 25-55 and 25-80 in domestic heating systems, it comes complete with modern motor technology and electronic control which enables it to exceed new EuP/ErP standards. It is also available as a complete pump or as a pump head only.
Features and benefits
- integrated differential-pressure control enabling adjustment of pump performance to the actual system requirement
- motor based on permanent-magnet/compact rotor technology.
- The pumps are energy-optimised and comply with the requirements of the EuP directive.
- The installation of a UPS2 will reduce power consumption considerably, reduce noise from thermostatic valves and similar fittings and improve the control of the system.
The UPS2 range offers a host of advantages:
- Energy savings
- High-efficient permanent-magnet motors.
- Flexibility
- Suitable for installation in existing systems.
- Comfort
- Low-noise operation.
- Safety
- Built-in electrical and thermal protection of the pump.
- User friendliness
- Simple setting and operation.
| SKU | 98707848 |
|---|---|
| Manufacturer | Grundfos |
| Manufacturers Warranty | 5 Years |
| GTIN | 5712600251854 |
| Weight | 2.9 Kg |

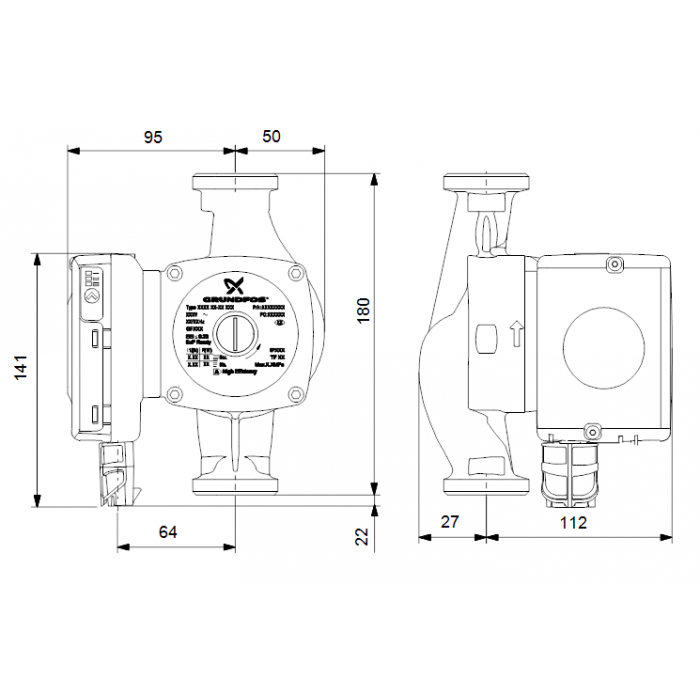

| Dimensions | 180mm (h) x 145mm (w) x 139mm (d) |
| Connection Type | 1 1/2 Inch BSP |
| Inlet Dimension | 1 1/2" bspm |
| Discharge Dimension | 1 1/2" bspm |
| Motor Size (kW/W) | 11-140W |
| Full Load Current (FLC) | 0.01-1.1 A |
| Voltage | 240V 1Ph 50Hz |

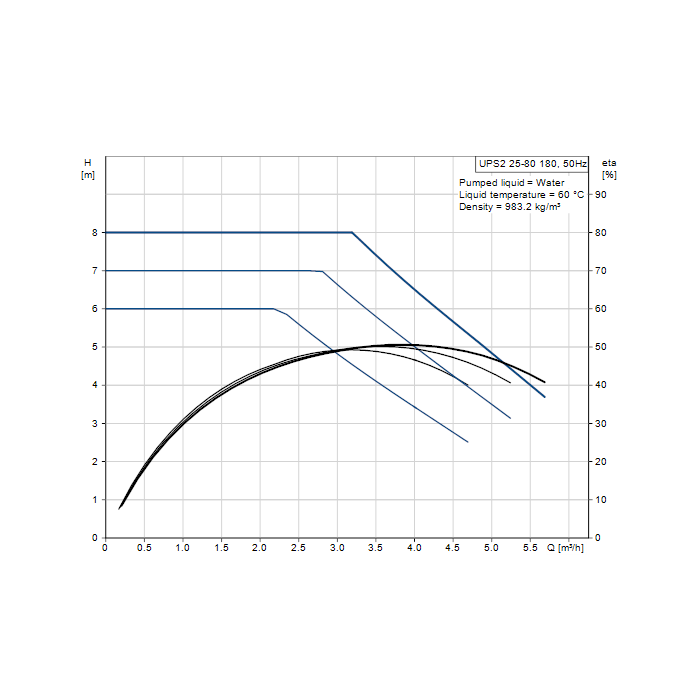

| Max Flow | 5.7m3/hr |
| Max Head | 8m |
| Material | Cast Iron |
