Grundfos UPS3 15-50/65 (130) Domestic Heating Circulator 240v Trade Pack of 5

SKU
99199622-5
MRRP £1,995.00 + VAT Our price £600.00 (+ VAT) Incl. VAT: £720.00

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

UPS3 15-50/65 130

High efficiency canned-rotor circulator, designed for circulating liquids in domestic heating systems. Is suitable as stand-alone or integrated circulator pump in existing systems as replacement or in new heating systems.

Features

  • Three constant curves/constant speed curves.
  • Two proportional-pressure curves.
  • Two constant-pressure curves.
  • Low EEI (Energy Efficiency Index).
  • Deblocking device.
  • Alarm and warning indication
  • Low noise level.
  • Very simple installation.
  • Replaces UPS2 and Alpha2

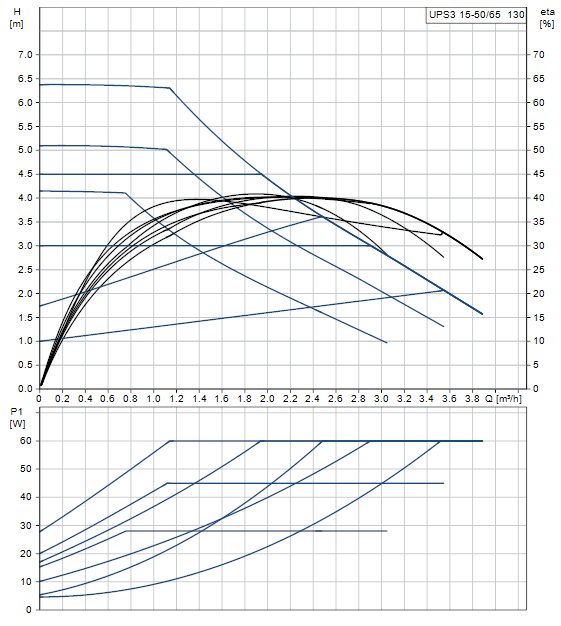

The pump features three control modes:

  • Constant pressure control with two setting
  • Proportional pressure control with two settings
  • Constant curve mode with three settings

Additionally, easy and user-friendly one-button interface makes replacement and settings simple and fast.Furthermore, the speed can be controlled by a low-voltage PWM (Pulse Width Modulation) profile A – Heating

LEDs indicate the actual operating status as well as warnings and alarms

The design of the pump and chosen materials contribute to long life. The pump is self-venting through the system, which contributes to easy commissioning. The compact design, featuring a pump head with an integrated control box, fits into most common installations, as well as boilers, due to the ambient temperature range. Pump and motor form an integral unit without a shaft seal. The bearings are lubricated by the pumped liquid. These constructional features ensure maintenance-free operation. Servicing screw accessible from the front allows for easy access to the pump shaft if necessary to deblock the pump once installed.

The pump housing is made of cast iron. The pump housing is electrocoated to improve corrosion resistance.

The motor is a synchronous permanent-magnet motor characterised by high efficiency. The pump speed is controlled by an integrated frequency converter incorporated in the control box.

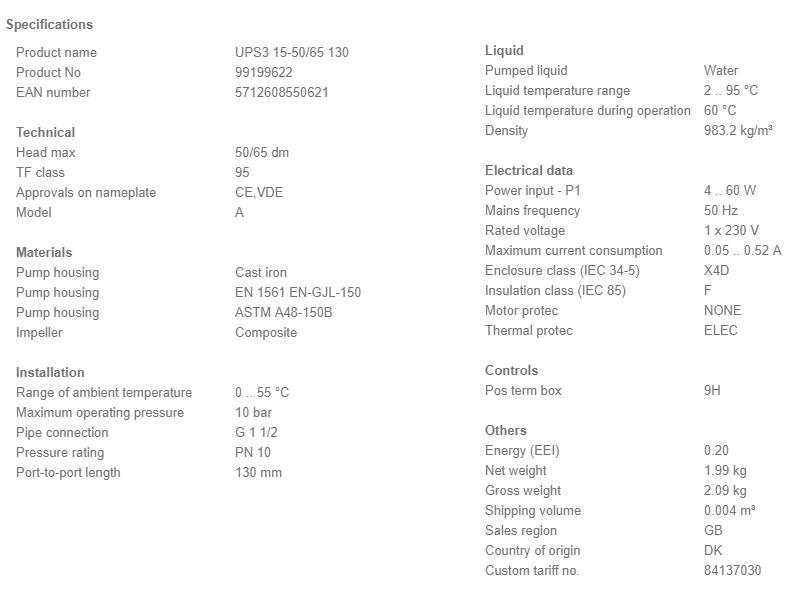

More Information
SKU 99199622-5
Manufacturer Grundfos
Manufacturers Warranty 5 Years
Weight 10.0 Kg

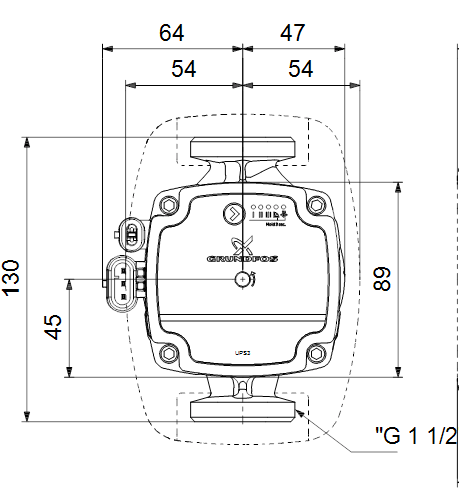

Dimensions 149 x 130 x 111
Connection Type 1 1/2 Inch BSP
Full Load Current (FLC) 0.52A
Voltage 240V 1Ph 50Hz
Max Flow 63 l/min
Max Head 6.5 metres
Max Pressure 10 Bar
Max Temperature +2°C to 95°C
Material Cast Iron
Impeller Material Composite
