Grundfos UPSD 40-30/4 (250) Twin Head Commercial Circulator 240V replaced with MAGNA1 D 40-40F (220) with spacer kit
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

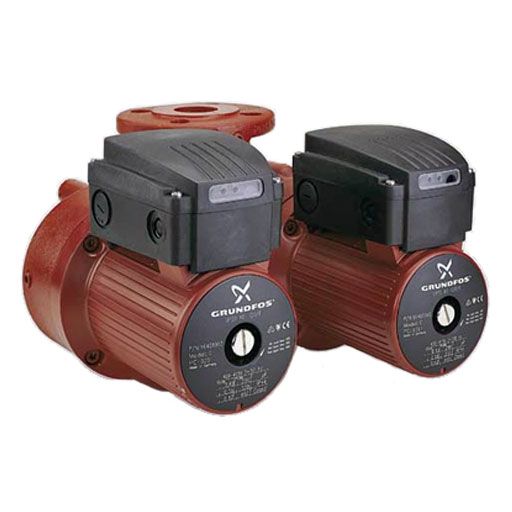

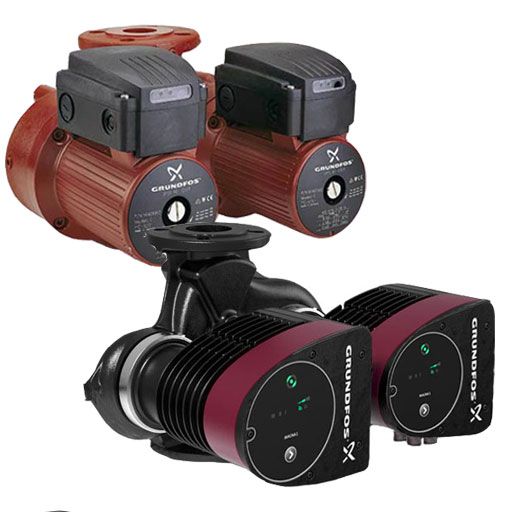

Grundfos UPSD 40-30/4 (250) Twin Head Commercial Circulator 240V replaced with MAGNA1 D 40-40F (220) with spacer kit - 96408904/ 99221293
Due to new European Legislation brought into force in January 2013, the UPS 40-30/4 (250) is no longer manufactured. On purchase of this pump, when old stock has been depleted we will automatically upgrade your order to the new EUP ready Energy Efficient MAGNA1 D 40-40F (220) at no extra cost.
A 30mm spacer kit is provided with this pump.

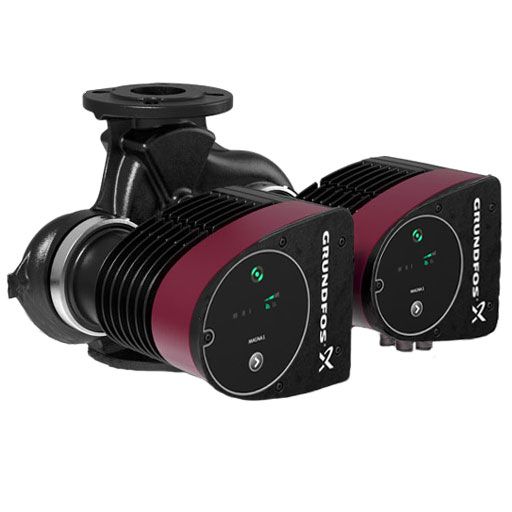

The Grundfos MAGNA1 D 40-40F (220) 'A' Rated/EuP Ready variable speed circulator with easy selection of pump setting, no maintenance requirements and extremely low life cycle cost. The MAGNA1 circulator pumps are designed for circulating liquids in heating systems with variable flows and also for domestic hot-water systems.
Applications include:
- Heating systems
- Main pump
- Mixing loops
- Heating and Air-conditioning
The pump is also suitable for systems with hot-water priority as an external signal can immediately force the pump to operate according to the max. curve, for example in solar-heating systems.
Benefits:
- Safe selection
- Simple installation
- Low energy consumption (MAGNA1 pumps comply with the EuP requirements)
- Nine light fields for indication of pump setting.
- Three proportional-pressure curves, three constant-pressure curves and three fixed-speed curves are available
- Low noise level
- Maintenance free and long life
Liquid:
- Pumped liquid: Water
- Liquid temperature range: -10 .. 110 °C
MAGNA1 40 Series have 220mm port-to-port dimensions and 40mm flanged connections.
| SKU | 96408904/ 99221293 |
|---|---|
| Manufacturer | Grundfos |
| Manufacturers Warranty | 2 Years |
| Weight | 20.0 Kg |
| Dimensions | 220mm (h) x 452mm (w) x 232mm (d) |
| Motor Size (kW/W) | 12-90W |
| Full Load Current (FLC) | 0.11-0.72A |
| Voltage | 240V 1Ph 50Hz |
| Max Flow | 17.5m3/hr |
| Max Head | 4m |
| Material | Cast Iron |
| Old Sku | 96408904 |
