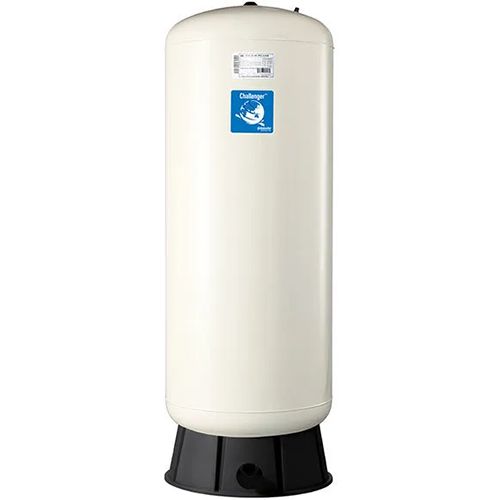

GWS Challenger 300L Vertical Pressure Vessel
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
GWS Challenger 300L Vertical Pressure Vessel - GCB-300LV
Efficient and cost effective, Challenger tanks are designed with a patented controlled action CAD-2 diaphragm assembly. It features a chlorine resistant 100% butyl diaphragm with a precision molded copolymer polypropylene liner for superior air and water separation. The CAD-2 diaphragm assembly is clenched together with a positive lock internal clench ring which contains drawdown water in a pre-charged air atmosphere, thus providing separation between the diaphragm and tank wall. This "air buffer" design means few problems with condensation. Constructed with an FDA approved high grade butyl, the diaphragm assembly seals water in a true non-corrosive chamber.
On the exterior, the almond coloured two part polyurethane paint finish over an epoxy undercoating provides hundreds of hours of UV and salt spray protection.
The air chamber is sealed with a fixed o'ring and closed cell foam and will provide many years of leak free and service free life. Challenger tanks are quality tested at several stages on the production line to ensure the structural integrity of every tank.
Features:
- patented CAD-2 diaphragm technology
- CE/PED, WRAS, ACS, ISO-9001, Gost, Evrazes approved
- stainless steel water connection
- condensation reducing design
- two part polyurethane, epoxy primed paint finish
- leak free air valve cap sealed with closed cell foam
- comprehensive testing
- no maintenance
Applications:
- booster systems
- thermal expansion
- heating expansion
- irrigation systems
- hydraulic hammer arresting
| SKU | GCB-300LV |
|---|---|
| Manufacturer | GWS |
| Manufacturers Warranty | 5 Years |
| Weight | 47.2 Kg |
| Dimensions | 1512mm (h) x 533mm (d) |
| Connection Type | 1 1/4 Inch BSP |
| Max Pressure | 10 Bar |
| Max Temperature | 90°C |
