JST-8 SK - 2" Submersible Sewage Pump With Cutter Impeller 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
JST-8 SK - 2" Submersible Sewage Pump With Cutter Impeller 415v - 012-780

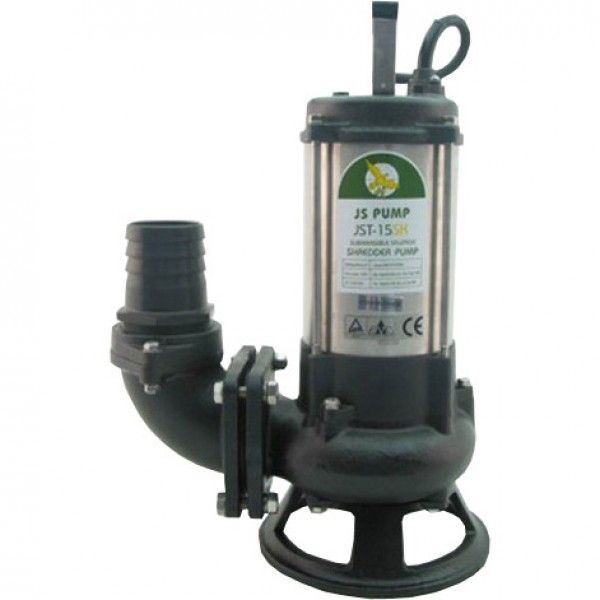

JST SK pumps are submersible sewage cutter pumps.
The tungsten carbide tipped impeller runs against a grinding diffuser plate, shredding and cutting soft solids into smaller parts to pump through the body to waste. The pump features a cast iron pump body, volute stand, impeller, lower motor bearing/seal housing and motor top cover, while the motor case and shaft are from stainless steel.
Twin mechanical seals help prevent abrasives such as sand, dirt and silt from entering the seal chamber.
Complete with 10m of power cable. Hose tail adapters are supplied with all models.
Hosetails supplied with all models apart from JST-37/55/75 SK.
Features
- Maximum Head: up to 24m
- Maximum Flow: up to 2200 litres/min
- 2" (JST-8 SK) or 3" (JST-15/22 SK) or 4" (JST-37/55/75 SK) outlet
- 415V
Applications
- Sewage waste drainage
- Sewage cutter impeller allows soft solids to be passed through the pump body to waste
| SKU | 012-780 |
|---|---|
| Weight | 36.0 Kg |

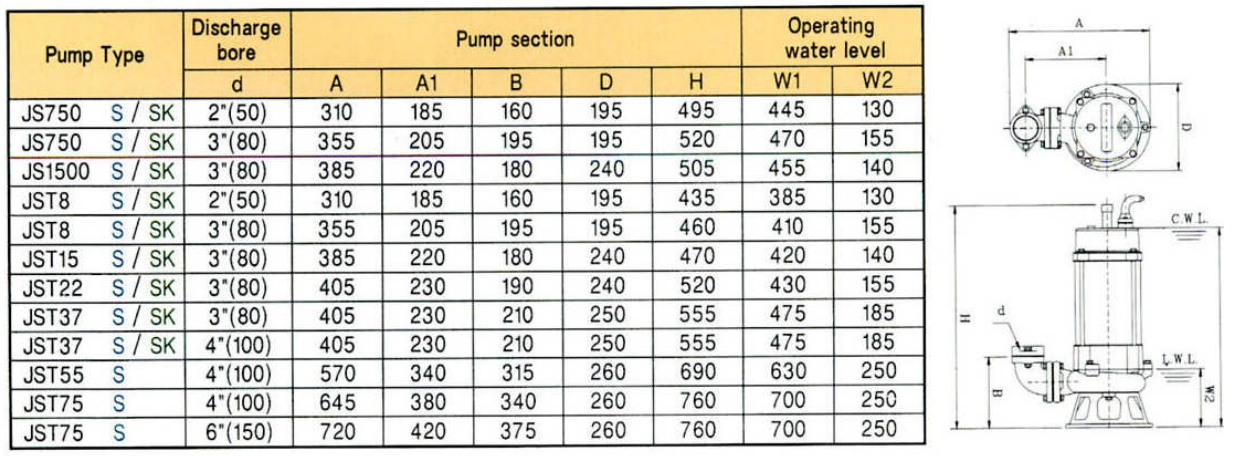

| Dimensions | 465 x 195 x 315 mm |
| Manufacturer | JS |
| Manufacturers Warranty | 1 Year |
| Material | Stainless Steel |
| Connection Type | 2 Inch BSP Female |
| Voltage | 415V 3Ph 50Hz |
| Max Flow | 400 l/min |
| Max Head | 14 Metres |
| Full Load Current (FLC) | 1.8A |
| Motor Size (kW/W) | 0.75kW |
| Cable Length | 10 Metres |
