Lowara DLF Vortex/A Submersible Pump Without Floatswitch 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

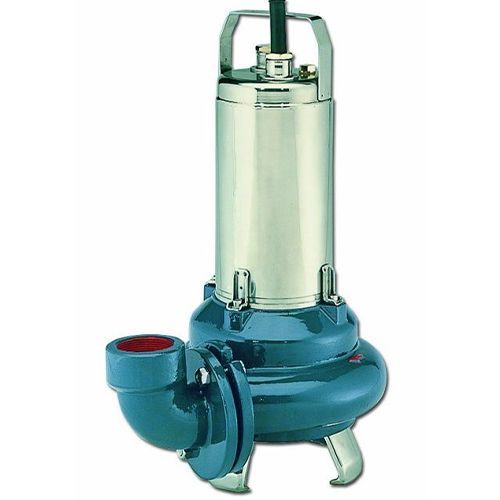

The DLF VORTEX/A submersible electric pump from Lowara is constructed from cast iron and stainless steel and has a single vortex impeller. Designed to handle solids-laden waste water, with solids up to 45mm in diameter. Unit not supplied with floatswitch but fitted with 10 metres of cable.
The pump is suitable for the following applications:
- Pumping of sewage with suspended solids and filaments
- Emptying of sumps, septic tanks and waste water discharge tanks
- Draining of flooded excavations and marshy ground
The pump specifications are:
- Maximum liquid temperature: 50°C with fully submerged pump, 25°C with partially submerged pump
- Mechanical seal protected by sand labyrinth
- Maximum dimension of suspended solids: 45mm
- Motor in a dielectric non-toxic oil bath, which ensures the lubrication of the ball bearings and a more efficient cooling.
- Power cord: H07RN-F: - single-phase: with plug, - three-phase: without plug.
- Insulation class 155°C (F).
- IPX8 protection.
- Maximum immersion depth: 5m.
Please note this pump is only for guide rail/flange connection.
| SKU | 107560140XXXPLN |
|---|---|
| Manufacturer | Lowara |
| Manufacturers Warranty | 2 Years |
| Weight | 27.0 Kg |
| Dimensions | 455mm (h) x 278mm (d) |
| Connection Type | 2 Inch BSP Female |
| Motor Size (kW/W) | 1.1 kW |
| Full Load Current (FLC) | 5.11 A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2850rpm |
| Max Flow | 30m3/hr |
| Max Head | 8.3m |
| Max Temperature | 50 degrees C |
| Material | Cast Iron |
| Impeller Material | Cast Iron |
