Lowara e-SHE 32-160/22/P25RSSA End Suction Centrifugal Pump 400v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Lowara's replacement to the SHE/SHS series
Lowara e-SH series single impeller, centrifugal, end suction pumps suitable for many applications that require constant or variable duty points in a cost saving operation. Lowara e-SH pumps are manufactured entirely in corrosion resistant AISI 316 stainless steel which makes them suitable for handling water as well as non aggressive or moderately aggressive fluids.
The pumps are equipped with interchangeable mechanical seals, IE3 efficiency motors, and are designed with aback pull-outconfiguration, which means the impeller, adapter and motor can be extracted without disconnecting the pump body from the piping system.
Some suitable applications include: process cooling/heating, air conditioning and ventilation systems, liquid transfer, pressure boosting, irrigation and washing/cleaning.
The e-SH pumps come with the standard extended shaft, however the following are available in the following constructions, Please contact the sales team on 0800 112 3134 if you require one of these versions:
- Stub shaft
- Bare shaft
- Frame mounted
Specifications
- Maximum liquid temperature: 120C
- Delivery: Up to 240 m/h
- IP55 Protection
- Insulation class: F
Materials
- Pump Body: AISI 316L Stainless Steel
- Impeller: AISI 316L Stainless Steel
- Mechanical Seal: Carbon/Ceramic/FP
| SKU | 101860170 |
|---|---|
| Manufacturer | Lowara |
| Manufacturers Warranty | 2 Years |
| Weight | 29.0 Kg |

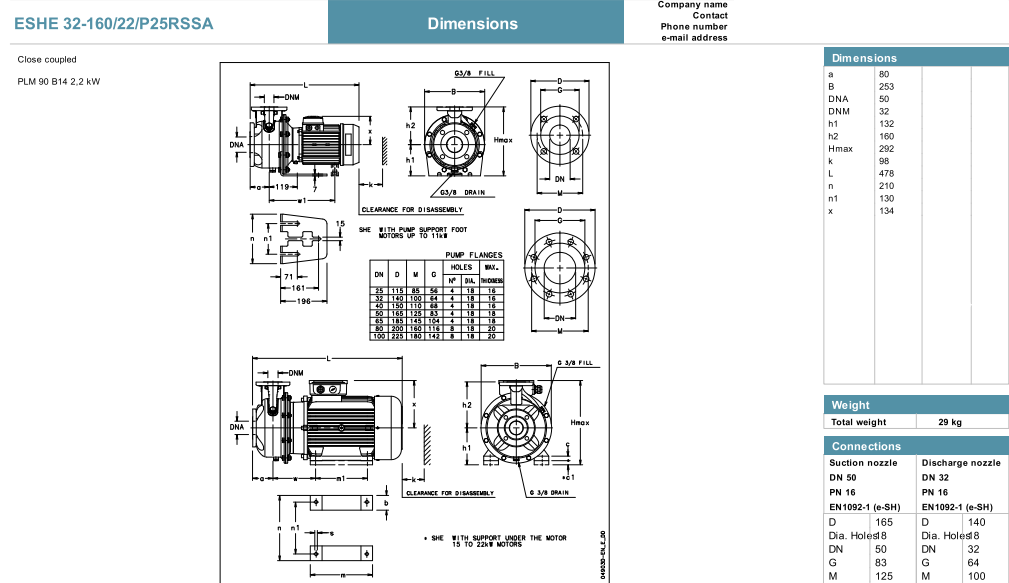

| Dimensions | 253mm (w) x 292mm (h) x 478mm (l) |
| Inlet Dimension | DN50 Flanged |
| Discharge Dimension | DN32 Flanged |
| Motor Size (kW/W) | 2.2kW |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2900rpm |
| Max Flow | 27m3/hr |
| Max Head | 31m |
| Max Temperature | 120°C |
| Material | Stainless Steel |
| Seal Type | Ceramic / Carbon / FKM |
| Impeller Material | Stainless Steel |
