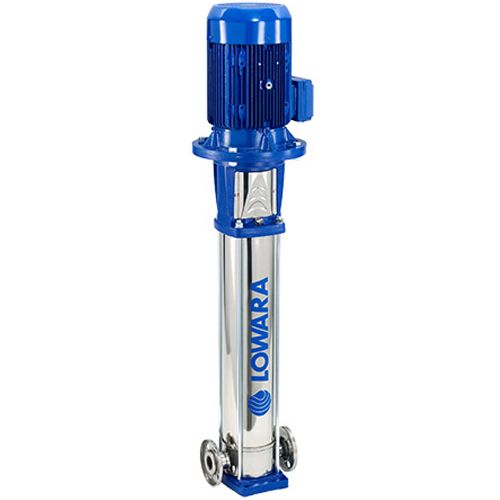

Lowara e-SV 15SV06F055T/D Vertical Multistage Pump 415V
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Lowara e-SV 15SV06F055T/D Vertical Multistage Pump 415V - 1016LD451
The e-SV™ range of pumps features 11 models, and can be specially configured for a wider range of applications. The line is interchangeable with Lowara’s SSV series of vertical multi-stage pumps for added flexibility in meeting pumping requirements. Additionally, five e-SV™ manufacturing facilities around the world provide shorter lead times and faster service
New design features:
- Balanced mechanical seal replaceable with out need for pump disassembling (for 10-15-22SV>=5,5kW, 33-46-66-92-125SV)
- “O” Ring seat design to allow for simple outer sleeve disassembly
- Floating for self alignment replaceable diffuser wear ring (PPS Glass filled tecnopolymer to withstand chemically corrosive, mechanically aggressive and high temperature liquids)
- Reduced impeller axial thrust for longer standard motor bearing life (17,500h)
- Hard Material Intermediate bush bearing (Tungsten Carbide/Silicon Carbide) to improve life and ability to withstand heavy duty applications, like boiler feeding
- High temperature seal option (180°C max) with low NPSH design, high pressure design (up to 40 Bar), and passivated & electro-polished version are available upon request.
Further unique features of the e-SV include the integration of performance diagnostic devices such as the i-Alert™ vibration monitor and Dry Run sensor. The i-Alert™ and the Dry Run sensor are available as an accessory for all models.
The e-SV is WRAS approved for potable water use.
Specifications
- Delivery: up to 160 m³/h
- Head: up to 330 m
- Power supply: both single and three-phase 50 and 60 Hz
- Power: from 0.37 kW up to 55 kW
- Maximum operating pressure: 40 bar
- Temperature of pumped liquid: from -30 °C to 120 °C
- protection: IP55
Applications
- Handling of water, free of suspended solids, in the civil, industrial and agricultural sectors.
- Pressure boosting and water supply systems.
- Irrigation systems.
- Wash systems.
- Water treatment plants.
- Handling of moderately aggressive liquids, demineralised water, water and glycol, etc.
- Circulation of hot and cold water for heating, cooling and conditioning systems.
- Boiler feed.
- Pharmaceutical food & beverage industries.
Alternative material mechanical seal kits are available for this pump, please see spares section.
| SKU | 1016LD451 |
|---|---|
| Manufacturer | Lowara |
| Manufacturers Warranty | 2 Years |
| Weight | 67.0 Kg |
| Motor Size (kW/W) | 5.5 kW |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2900 |
| Max Flow | 24 m3/h |
| Max Head | 83m |
| Material | Stainless Steel |
| Seal Type | Single Seal |
| Impeller Material | Stainless Steel / AISI 304 |
