Lowara e-SV 1SV03T003M Vertical Multistage Pump 240V

SKU
1016L1840
MRRP £1,091.00 + VAT Our price £763.70 (+ VAT) Incl. VAT: £916.44

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

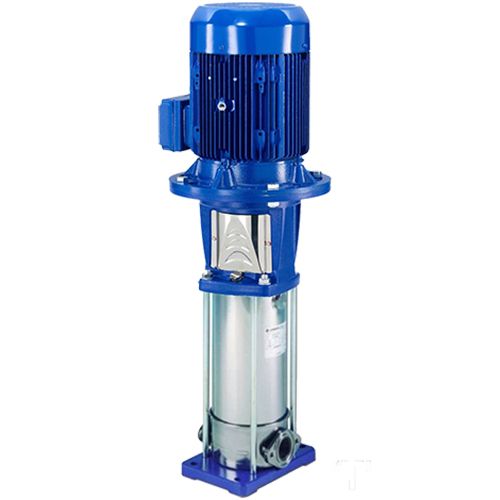

Lowara e-SV 1SV03T003M Vertical Multistage Pump 240V - 1016L1840

The e-SV™ range of pumps features 11 models, and can be specially configured for a wider range of applications. The line is interchangeable with Lowara’s SSV series of vertical multi-stage pumps for added flexibility in meeting pumping requirements. Additionally, five e-SV™ manufacturing facilities around the world provide shorter lead times and faster service

New design features:

  • Balanced mechanical seal replaceable with out need for pump disassembling (for 10-15-22SV>=5,5kW, 33-46-66-92-125SV)
  • “O” Ring seat design to allow for simple outer sleeve disassembly
  • Floating for self alignment replaceable diffuser wear ring (PPS Glass filled tecnopolymer to withstand chemically corrosive, mechanically aggressive and high temperature liquids)
  • Reduced impeller axial thrust for longer standard motor bearing life (17,500h)
  • Hard Material Intermediate bush bearing (Tungsten Carbide/Silicon Carbide) to improve life and ability to withstand heavy duty applications, like boiler feeding
  • High temperature seal option (180°C max) with low NPSH design, high pressure design (up to 40 Bar), and passivated & electro-polished version are available upon request.

Further unique features of the e-SV include the integration of performance diagnostic devices such as the i-Alert™ vibration monitor and Dry Run sensor. The  i-Alert™ and the Dry Run sensor are available as an accessory for all models.

The e-SV is WRAS approved for potable water use.

Specifications

  • Delivery: up to 160 m³/h
  • Head: up to 330 m
  • Power supply: both single and three-phase 50 and 60 Hz
  • Power: from 0.37 kW up to 55 kW
  • Maximum operating pressure: 40 bar
  • Temperature of pumped liquid: from -30 °C to 120 °C
  • protection: IP55

Applications

  • Handling of water, free of suspended solids, in the civil, industrial and agricultural sectors.
  • Pressure boosting and water supply systems.
  • Irrigation systems.
  • Wash systems.
  • Water treatment plants.
  • Handling of moderately aggressive liquids, demineralised water, water and glycol, etc.
  • Circulation of hot and cold water for heating, cooling and conditioning systems.
  • Boiler feed.
  • Pharmaceutical food & beverage industries.

Alternative material mechanical seal kits are available for this pump, please see spares section.

More Information
SKU 1016L1840
Manufacturer Lowara
Manufacturers Warranty 2 Years
Weight 13.4 Kg
Motor Size (kW/W) 0.37 kW
Voltage 240V 1Ph 50Hz
RPM 2900
Max Flow 2.40 m3/h
Max Head 18m
Material Stainless Steel
Seal Type Single Seal
Impeller Material Stainless Steel / AISI 304
