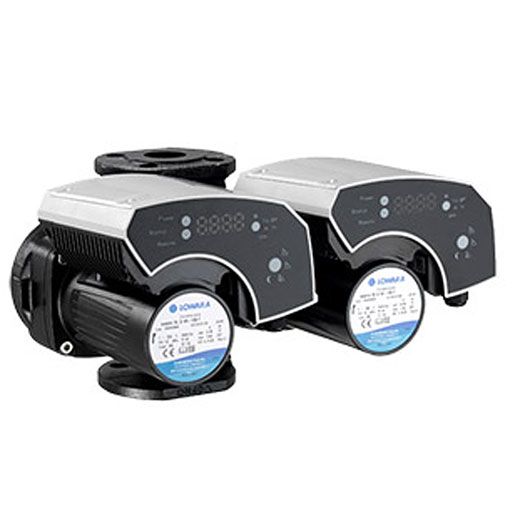

Lowara Ecocirc XL D 40-80F (220) Twin Head Variable Speed Circulator 240V

SKU
E502050AA
MRRP £2,517.00 + VAT Our price £1,510.20 (+ VAT) Incl. VAT: £1,812.24

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Please note, Lowara no longer manufacture the Ecocirc XL version. This is replaced with the Ecocirc XLPlus version. This will be provided as a free of charge upgrade.

The Ecocirc XL High efficiency single phase circulators for light commercial heating systems with electronically commutated permanent magnet technology.

Ecocirc XL and XLplus are designed for circulating liquids in the following systems:

  • Hot water heating systems
  • Air conditioning and cooling systems
  • Domestic hot water systems
  • Solar and Geothermal systems.



Pump features:

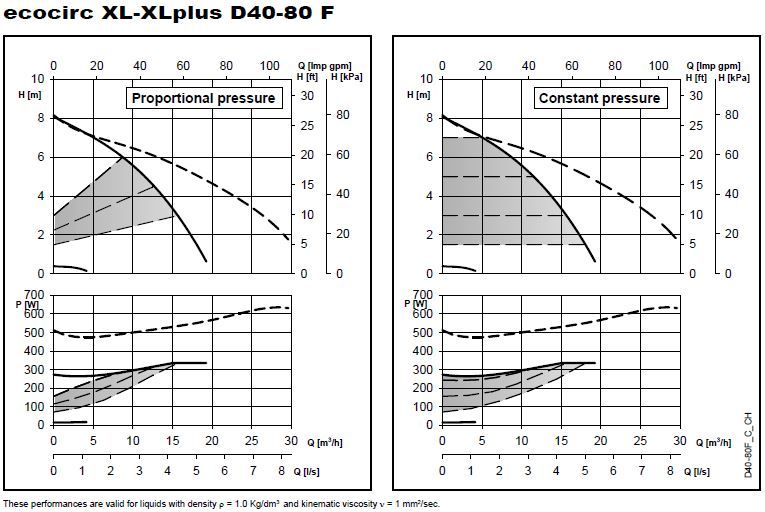

  • Constant pressure: the pump maintains constant pressure at any flow demand
  • Proportional pressure: pump pressure continuously adjusts based on flow demand
  • Constant speed: the pump maintains a fixed speed at any flow demand
  • Night mode: the pump reduces the power consumption at minimum when the heating load is not required (night-time)
  • Dry run protection
  • Air purge
  • Plug for 100W motor size
  • Reading and setting of the pump by digital display and human machine interface with push buttons
  • Insulation shell for heating systems for single head pumps
  • Constant temperature control (ecocirc XLplus only)
  • Differential temperature control (ecocirc XLplus only)
  • Additional automatic operating modes for twin head pumps including parallel and alternate operations (ecocirc XLplus only)
  • Integrated communication capabilities (Modbus and Bacnet) for ecocirc XLplus
More Information
SKU E502050AA
Manufacturer Lowara
Manufacturers Warranty 2 Years
Weight 22.2 Kg
Dimensions 220mm (h) x 274mm (d) x 368mm (w)
Motor Size (kW/W) 0.19kW
Full Load Current (FLC) 1.4A
Voltage 240V 1Ph 50Hz
Max Flow 5.3 l/sec
Max Head 8.0m
Material Cast Iron
