Lowara NSCE 32-250/15/P45RCS4 Horizontal End Suction Pump 4 Pole 400v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Lowara's replacement to the FHE/FHS series
By combining high efficiency with high flexibility regarding installation, material options and temperature, the new Lowara e-NSC series is the natural choice for water transport, hydronic heating and chiller systems, fire protection systems and a vast number of industrial applications.
The e-NSC series are centrifugal, end suction pumps suitable for many applications that require constant or variable duty points in a cost saving operation. The pumps are equipped with interchangeable mechanical seals, IE3 efficiency motors, and are designed with a back pull-out configuration, which means the impeller, adapter and motor can be extracted without disconnecting the pump body from the piping system.
Some suitable applications include: process cooling/heating, air conditioning and ventilation systems, water supply, pressure boosting, irrigation and fire fighting.
The e-NSC pumps are available in the following constructions:
- Extended shaft (models listed on website)
- Stub shaft (available on request)
- Bare shaft (available on request)
- Frame mounted (available on request)
Specifications
- Delivery: up to 1800 m³/h
- Head: up to 160 m
- Power supply: three-phase 50 and 60 Hz
- Power: from 0,25 kW up to 355 kW
- Maximum operating pressure: 16 bar
- Temperature of pumped liquid: from -25°C to +140°C
- Extended temperature versions from -40°C to +180°C
Materials
- Pump Body: Cast Iron
- Impeller: AISI 316L Stainless Steel
- Mechanical seal: carbon/silicon carbide/EPDM*
*standard version - Other seal materials available upon request
| SKU | 101843170 |
|---|---|
| Manufacturer | Lowara |
| Manufacturers Warranty | 2 Years |
| Weight | 51.0 Kg |

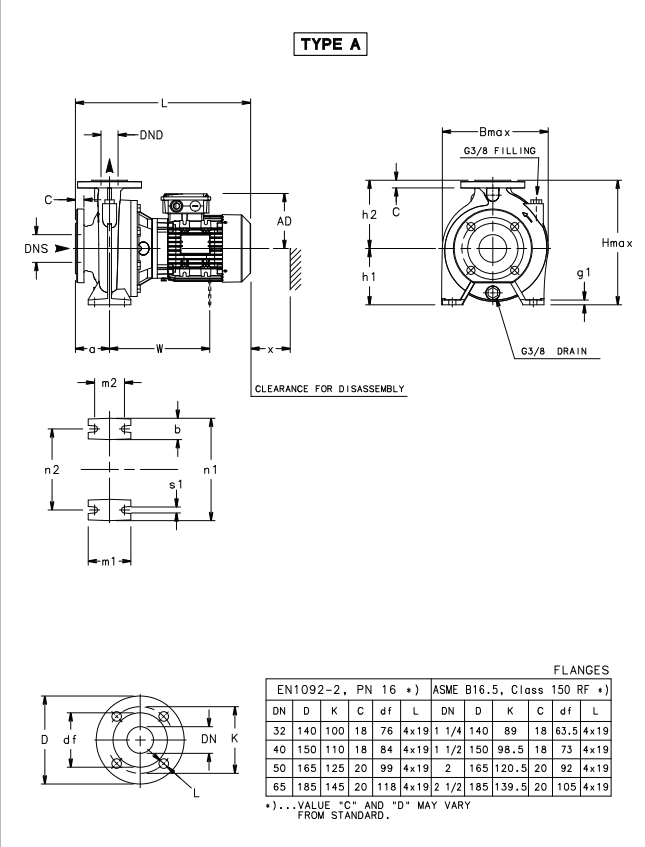

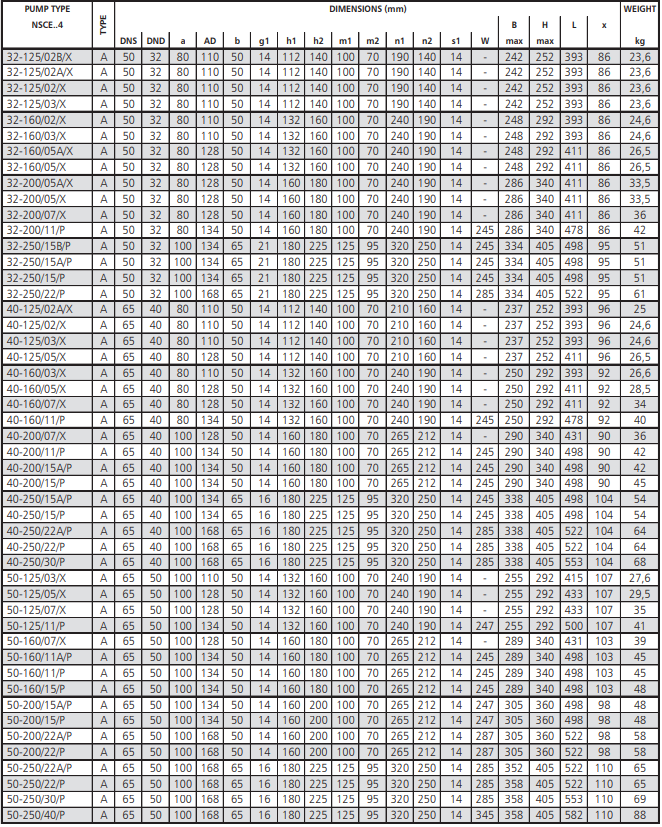

| Dimensions | 334mm (l) x 405mm (h) x 553mm (w) |
| Inlet Dimension | 50mm Flanged |
| Discharge Dimension | 32mm Flanged |
| Motor Size (kW/W) | 1.5kW |
| Voltage | 415V 3Ph 50Hz |
| RPM | 1450rpm |

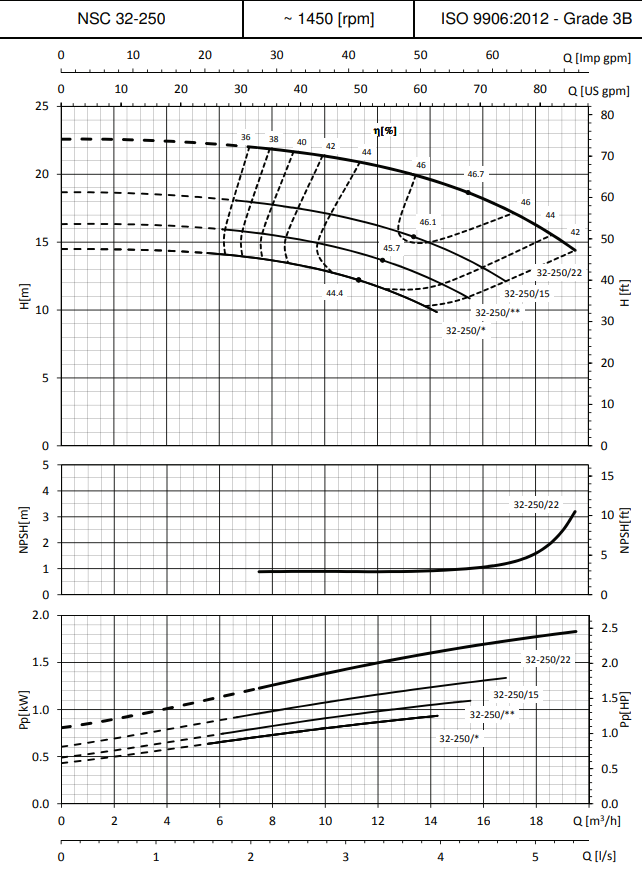

| Max Flow | 17m3/hr |
| Max Head | 18m |
| Max Temperature | 140°C |
| Material | Cast Iron |
| Seal Type | Carbon/Silicon carbide/EPDM |
| Impeller Material | AISI 316L Stainless Steel |
