Lowara NSCE 80-160/220/P25VCC4 Horizontal End Suction Pump 2 Pole 400v

SKU
101840850
MRRP £7,818.00 + VAT Our price £5,472.60 (+ VAT) Incl. VAT: £6,567.12

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Lowara's replacement to the FHE/FHS series

By combining high efficiency with high flexibility regarding installation, material options and temperature, the new Lowara e-NSC series is the natural choice for water transport, hydronic heating and chiller systems, fire protection systems and a vast number of industrial applications.

The e-NSC series are centrifugal, end suction pumps suitable for many applications that require constant or variable duty points in a cost saving operation. The pumps are equipped with interchangeable mechanical seals, IE3 efficiency motors, and are designed with a back pull-out configuration, which means the impeller, adapter and motor can be extracted without disconnecting the pump body from the piping system.

Some suitable applications include: process cooling/heating, air conditioning and ventilation systems, water supply, pressure boosting, irrigation and fire fighting.

The e-NSC pumps are available in the following constructions:

  • Extended shaft (models listed  on website)
  • Stub shaft (available on request)
  • Bare shaft (available on request)
  • Frame mounted (available on request)

Specifications

  • Delivery: up to 1800 m³/h
  • Head: up to 160 m
  • Power supply: three-phase 50 and 60 Hz
  • Power: from 0,25 kW up to 355 kW
  • Maximum operating pressure: 16 bar
  • Temperature of pumped liquid: from -25°C to +140°C
  • Extended temperature versions from -40°C to +180°C

Materials

  • Pump Body: Cast Iron
  • Impeller: AISI 316L Stainless Steel
  • Mechanical seal: carbon/silicon carbide/EPDM*

*standard version - Other seal materials available upon request

More Information
SKU 101840850
Manufacturer Lowara
Manufacturers Warranty 2 Years
Weight 166.0 Kg

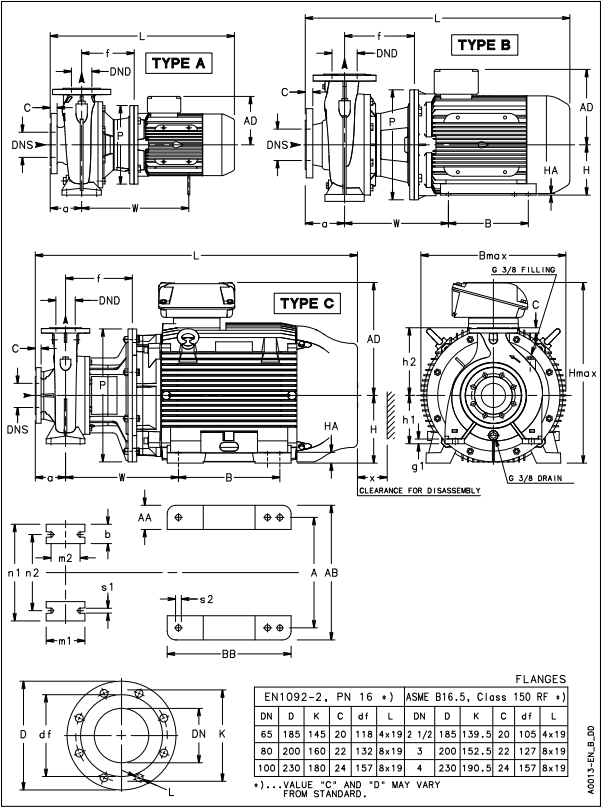

Dimensions 340mm (w) x 420mm (h) x 719mm (l)
Inlet Dimension 100mm Flanged
Discharge Dimension 80mm Flanged
Motor Size (kW/W) 22kW
Voltage 415V 3Ph 50Hz
RPM 2900rpm
Max Flow 280m3/hr
Max Head 42m
Max Temperature 140°C
Material Cast Iron
Seal Type Carbon/Silicon carbide/EPDM
Impeller Material AISI 316L Stainless Steel
