Lutz-Jesco Magdos LB 6 Solenoid Pump 6.2l/hr (Ex 10211016)

SKU
10211404
MRRP £493.60 + VAT Our price £420.00 (+ VAT) Incl. VAT: £504.00

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

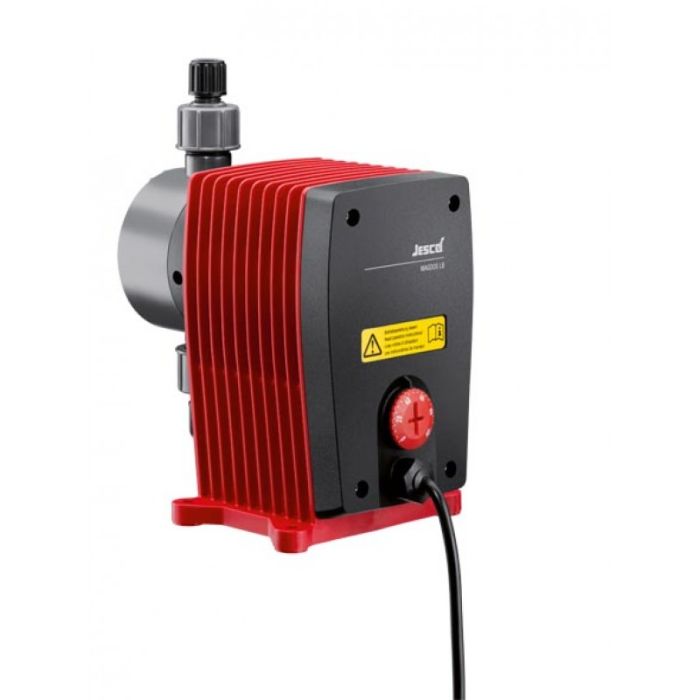

MAGDOS LB

Simple dosing pump in newest generation

The MAGDOS LB solenoid-diaphragm dosing pump is a good-value alternative for simple and continuous dosing tasks. It is especially suitable for water treatment and the process industry. MAGDOS LB is available for seven capacity ranges. Double-ball valves ensure an accurate dosing. The dosing capacity can be adapted continuously from 0 – 100% through the stroke frequency. MAGDOS is a compact solution which only includes the most important elements for reliable dosing.

  • Output range from 0.5 – 15 l/h, up to 16 bar
  • Long-range power supply unit 110 – 240 V, 50/60 Hz, IP65
  • Dosing head ventilation
  • Suitable for wall and floor mounting
  • Material finishes PVC, PP, PVDF
  • Infinitely variable dosing rate from 0 – 100 %
  • CSA and UL certified
More Information
SKU 10211404
Manufacturer Lutz-Jesco
Manufacturers Warranty 2 Years
Weight 3.2 Kg

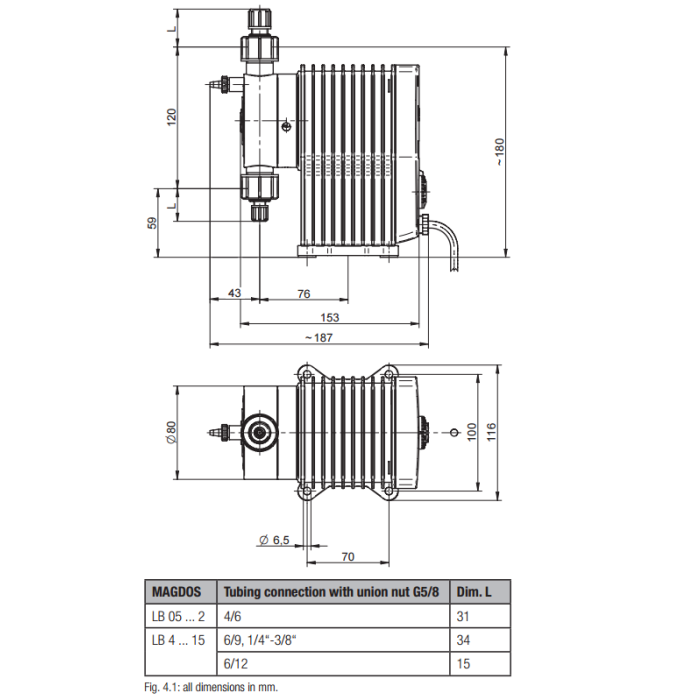

Dimensions 116mm x 187mm x 211mm
Motor Size (kW/W) Solenoid
Full Load Current (FLC) 3.8A
Cable Length 1.8m
Max Flow 6.2l/h
Max Head 8bar
Material PVC/G/FPM
