Lutz-Jesco Magdos LP 05 Solenoid Pump 0.36l/hr
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

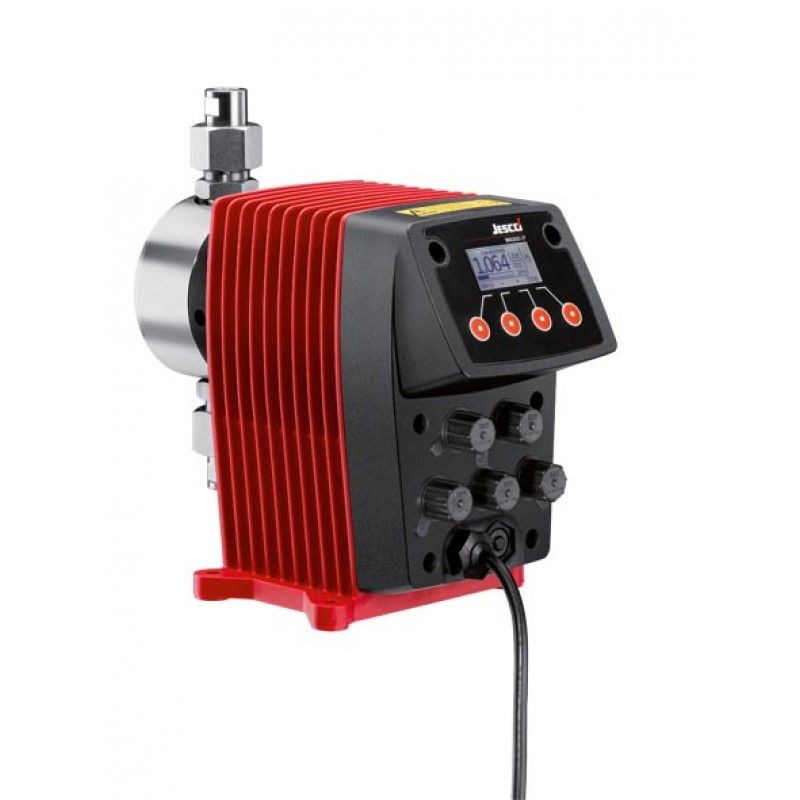

MAGDOS LP
Simple to use and space-saving
MAGDOS LP is available in seven power ranges. Double-ball valves ensure accurate dosing. The dosing power can be adapted by varying the stroke frequency manually, via an external control contact or using a 0/4 – 20 mA signal. The MAGDOS LP is also available with an optional Ethernet interface. This network connection enables you to control the stroke frequency and the number of strokes. In addition, all error messages can be transmitted in the opposite direction.
- Output range from 0.5 – 15 l/h, up to 16 bar
- Long-range power supply unit 110 – 240 V, 50/60 Hz, IP65
- Dosing head ventilation (plastic version)
- Suitable for wall and floor mounting
- Material finishes PVC, PP, PVDF and stainless steel
- Stroke frequency can be precisely adjusted via the keyboard
- Graphic display with multi-language menu
- Analogue input and pulse input (increase and reduction)
- Level input with early warning and main alarm
- Release input for external start/stop
- Supply amount displayed in various units
- Maximum delivery rate can be limited
- Energy-saving "Eco-mode" is available
- Stroke feedback output
- Alarm relay output
- Batch dosing with interval and timer functions
- Dosing control input
- Diaphragm failure input for leak monitoring
- Ethernet interface (optional)
- CSA and UL certified
| SKU | 10231001 |
|---|---|
| Manufacturer | Lutz-Jesco |
| Manufacturers Warranty | 2 Years |
| Weight | 3.2 Kg |
| Dimensions | 116mm x 187mm x 211mm |
| Motor Size (kW/W) | Solenoid |
| Full Load Current (FLC) | 2A |
| Cable Length | 1.8m |
| Max Flow | 0.36l/h |
| Max Head | 16bar |
| Material | PVC/G/FPM |
