Mikrofill MikroPro 250 Pressurisation Set with 250 ltr vessel and service Valve

Name: Mikrofill MikroPro 250 Pressurisation Set with 250 ltr vessel and service Valve
Brand: mikrofill
SKU: 100250
Price: 1684 GBP
Availability: InStock

SKU

100250

MRRP £1,774.00 + VAT Our price £1,684.00 (+ VAT) Incl. VAT: £2020.80

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

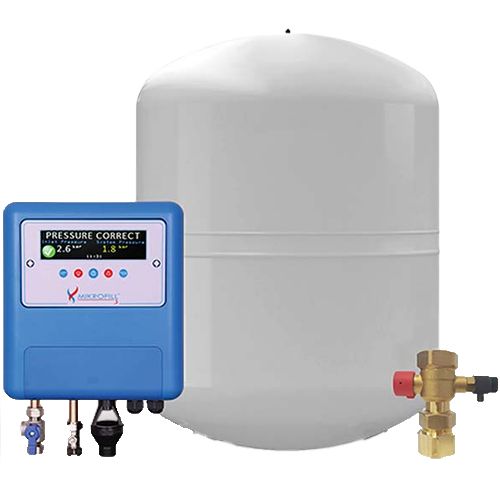

The Mikrofill 250 is an extremely compact and convenient sealed system pressurisation package. Comprising the Mikrofill 3 advanced ‘direct-type’ pressurisation unit capable of cold fill pressurising a system up to 4.7 bar, a MikroPro 250 litre (6 bar) expansion vessel and a 1” quick fit service valve, the Mikrofill 250 is suitable for a range of LPHW/CHW applications.

Mikrofill 3 Features

Fills any LPHW/CHW system from empty
Connects directly to the mains/boosted water supply
4.7 bar cold fill pressure
Consumes 10 watts on standby and 30 watts fully operational per hour
Compact size & wall mounted
Digital control system and LCD graphic display
Automatic system fill and top-up
Easy to install and set up
High flow, WRAS approved fill valve
Fill volume indicator - Aids water treatment calculation
Category 4 backflow protection
2 year warranty

MikroPro Features

250 litre tank capacity
For heating and chilled water applications
Complies with the pressure equipment directive (PED) 97/23/EC
Maximum operating temperature of 70°C
Maximum operating pressures of 6 bar
Durable powder coated finish
Threaded connections

Applications

Maintaining system pressure in large domestic and commercial sealed heating systems
Maintaining system pressure in chilled water systems, refrigeration units and industrial cooling systems

More Information
SKU	100250
Manufacturer	mikrofill
Manufacturers Warranty	2 Years
Weight	50.0 Kg
Inlet Dimension	15mm Compression
Discharge Dimension	15mm Compression
Full Load Current (FLC)	1.0 Amp
Voltage	240V 1Ph 50Hz
Max Flow	Nominal 14 l/min @ 2 Bar
Max Pressure	Cold Fill Max - 4.7 Bar
Max Temperature	23 DegC
